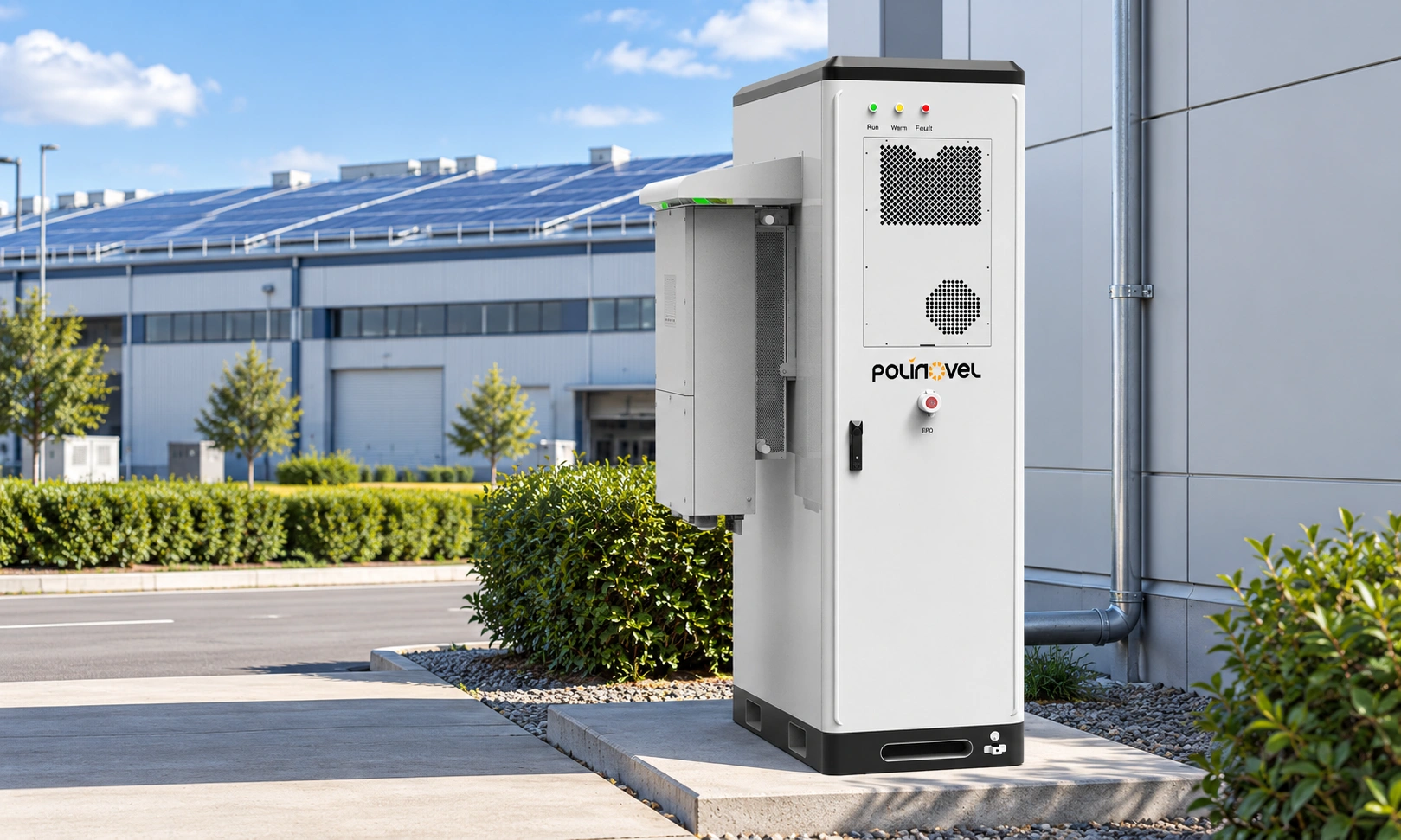

Designed for sites with on-site solar generation, Polinovel’s semi-solid-state energy storage cabinet brings PV connection and battery storage into a single outdoor unit. It gives commercial and industrial customers a way to store solar energy for later on-site use, with the system configuration matched to their PV array and load requirements. The compact cabinet format also makes it easier to plan where the system will sit within an existing facility.

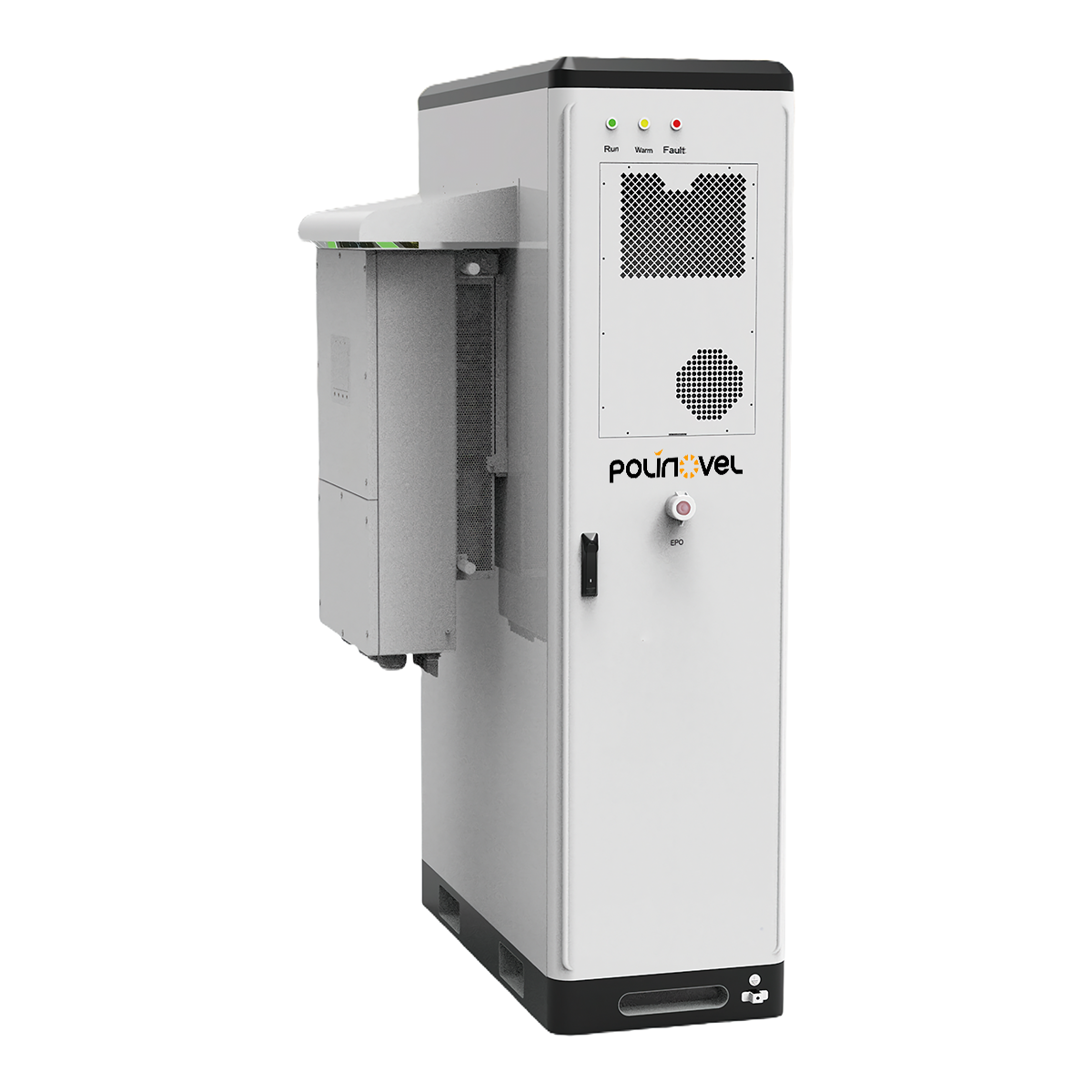

Polinovel’s outdoor energy storage cabinet brings battery storage, solar PV input, and outdoor deployment into one system.
1
Built with semi-solid-state battery cells for commercial and industrial energy storage projects.
2
Four independent MPPTs and up to eight PV string inputs give installers room to plan the connections around the site’s solar array.
3
The IP55 enclosure, air cooling, and −20°C to +50°C operating range give project teams clear conditions for assessing an outdoor installation.
Model | CBS96 |
Battery | |
Battery Technology | Solid-state lithium |
Rated Energy Capacity | 96 kWh |
Cell Capacity | 314 Ah |
Nominal System Voltage | 307.2 V |
System Voltage Range | 273.6–340.8 V |
Maximum Charge/Discharge Rate | 0.5P |
Maximum Charge/Discharge Current | 157 A |
Solar PV Input | |
Maximum PV Input Power | 96 kW |
MPPT Voltage Range | 150–850 V |
Maximum PV Input Current | 40 A × 4 |
Number of MPPTs | 4 |
Maximum Number of PV Strings | 8 |
AC Output | |
Rated AC Power | 50 kW |
Rated AC Voltage | 400 V, 3W+N+PE |
Rated AC Frequency | 50/60 Hz |
Current THD | <3% at rated power |
Voltage THD | <3% with linear load |
System & Environmental | |
Cooling Method | Air Cooling |
Enclosure Rating | IP55 |
Corrosion Resistance | C3 standard; C4/C5 optional |
Fire Suppression | Aerosol + water fire suppression (optional; configuration to be confirmed) |
Operating Temperature | −20°C to +50°C |
Relative Humidity | 0–95%, non-condensing |
Maximum Operating Altitude | 3,000 m; derating above 2,000 m |
Communication | 4G / CAN / RS485 |
Dimensions (W × D × H) | 540 × 1,200 × 2,054 mm |
Approximate Weight | 1,008 kg |
For commercial and industrial sites planning solar PV and battery storage, the right cabinet configuration depends on more than system capacity. PV layout, on-site loads, and installation conditions all need to be considered.

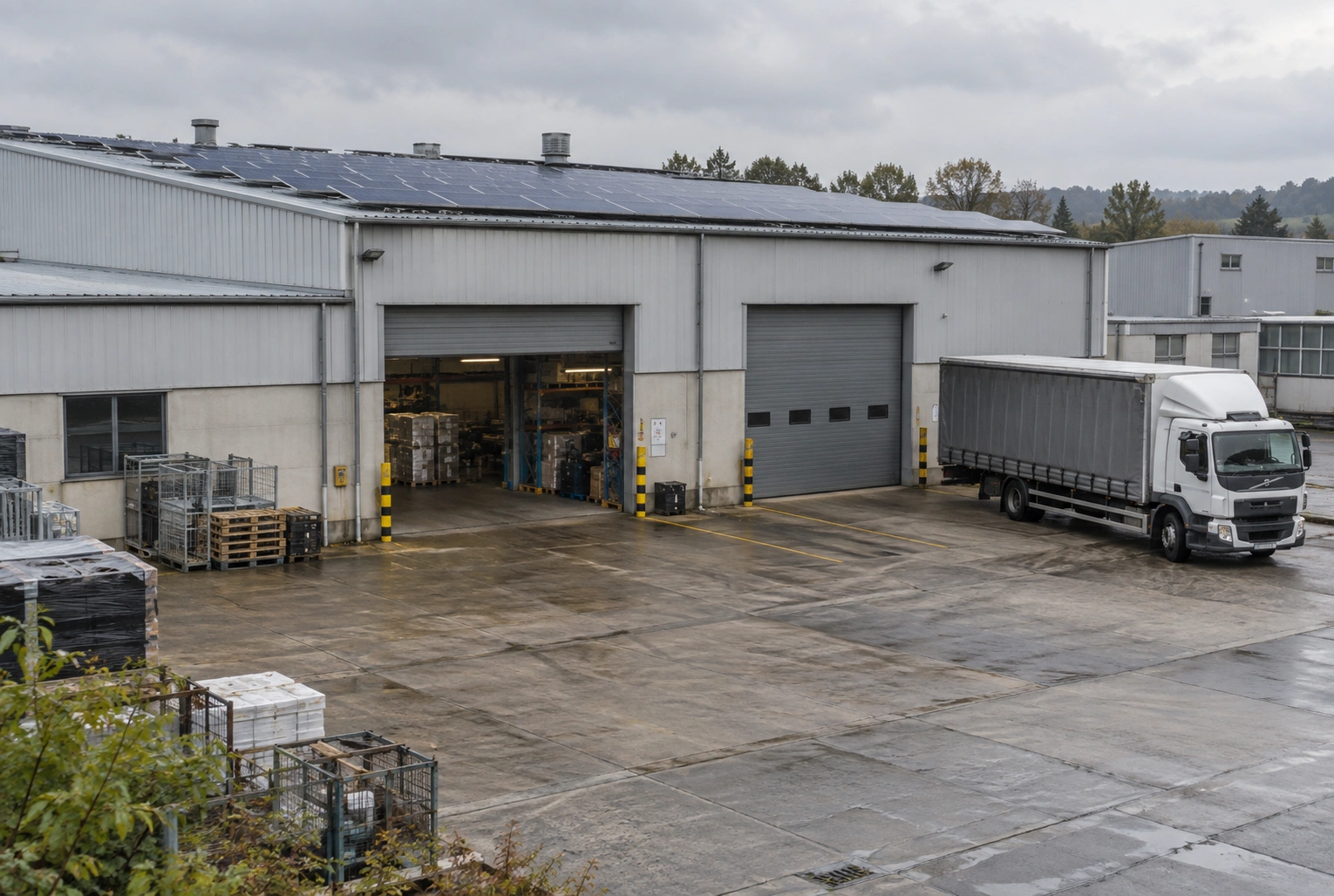

Factory rooftops can provide space for PV panels, while the battery cabinet is installed outdoors at ground level. When evaluating a project, check the distance between the PV array and cabinet, available installation space, and the facility’s daily load profile.
For offices, retail facilities, and other commercial buildings, the cabinet can be assessed as part of a solar-plus-storage installation. The starting point is how much solar power the site produces, when the building uses electricity, and where outdoor equipment can be placed.

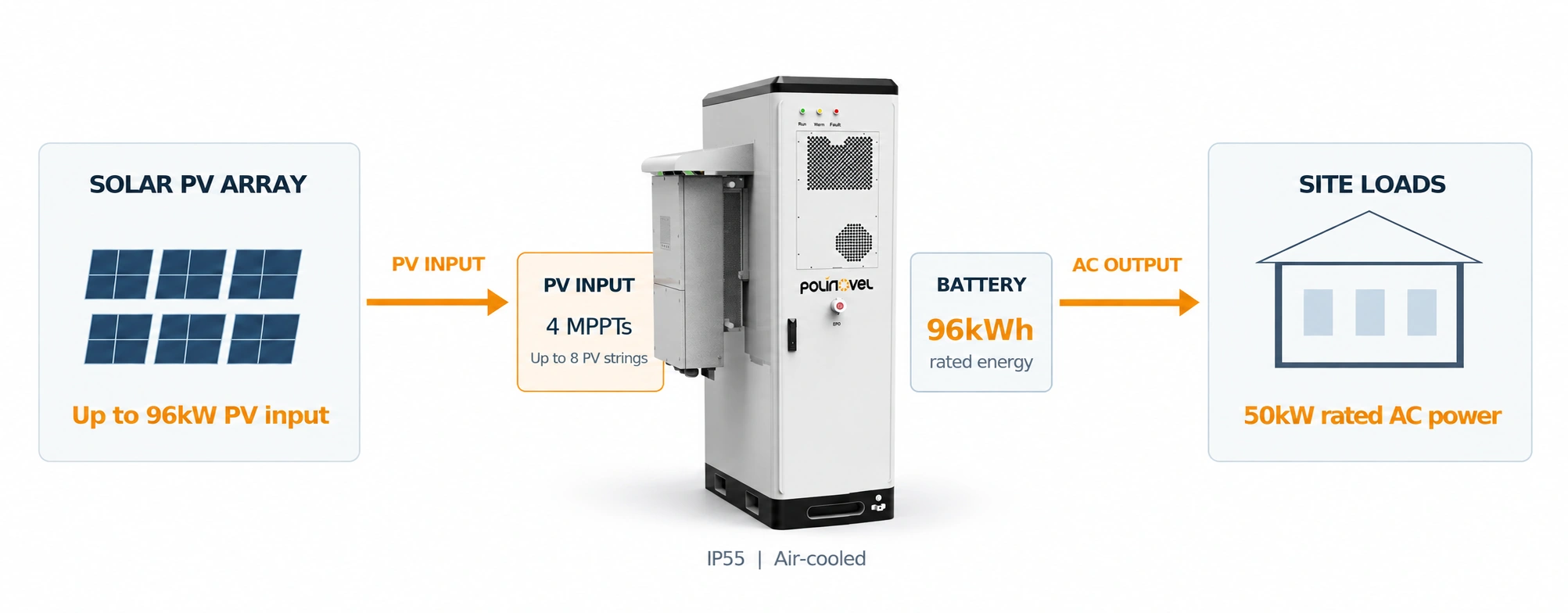

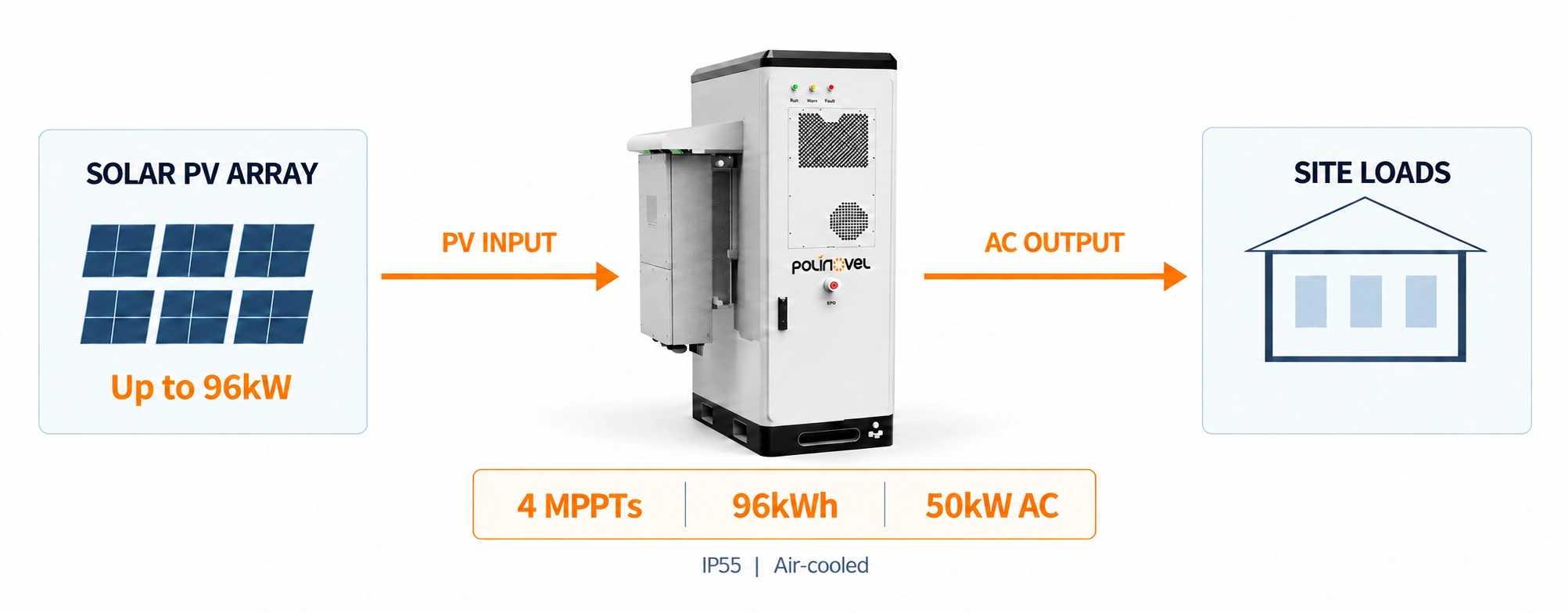

Solar PV connects to the outdoor energy storage cabinet through its PV inputs. When generation exceeds the site’s immediate needs, energy can be stored in the cabinet’s battery and used later as demand changes or sunlight fades. The system connects this solar input and stored energy to the facility’s AC loads, helping the site make more use of its own PV generation.
The IP55 cabinet is designed for outdoor installation and operates from −20°C to +50°C. C3 corrosion resistance is standard, with C4 and C5 grades available for sites with more demanding conditions.
Integrated air cooling helps manage heat inside the cabinet during operation. The enclosure’s ventilation design supports operation across the specified outdoor temperature range.
An aerosol and water fire suppression option is listed for the cabinet. Its configuration can be matched to the project’s fire protection requirements.
What is a semi-solid-state battery energy storage system?
It is a battery energy storage system that uses semi-solid-state battery technology. Polinovel’s 50kW 96kWh system brings battery storage, power conversion, and solar PV input together in an outdoor cabinet.
How is a semi-solid-state battery different from a conventional lithium-ion battery?
Can this outdoor energy storage cabinet connect to solar panels?
What can a 50kW 96kWh energy storage cabinet be used for?
Can this energy storage cabinet be installed outdoors?
