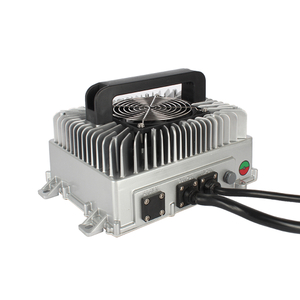

IP67 Waterproof 800W Lithium Battery Charger

Polinovel lithium battery chargers are widely used in golf carts, electric bicycles, electric sweepers, electric forklifts, electric motorcycles that are powered by lithium-ion or lifepo4 batteries.

• Soft switching technology, maximum efficiency > 93%.
• With APFC function, power factor > 0.98.
• Wide working temperature range -40℃~60℃.
• Seismic grade of automobile grade.
• Strong protection function.
• IP67 waterproof standard.
• 100% full load aging test.
Availability:

battery chargerbattery chargerprotection


battery charger

Protection Function


Overheat Protection

When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically. When it

exceeds 85℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes

to charge.


Short Circuit Protection

When the output short circuit, the charger will automatically shutdown the output. After troubleshooting, the battery

can be reconnected to resume charging.


Battery Reverse Connection Protection

When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery,

without charging, without damaging the charger.


Input Low-voltage & Over-voltage Protection

If the input voltage is lower than 180V or higher than 260V, the charger will shutdown protectively and automatically resume working when the voltage is normal again.


Model

LBC800

Rated Output Voltage

58.4VDC

Rated Output Current

15A

Max. Output Power

800W

Input Voltage Range

180-264VAC

Input Frequency Range

40-70Hz

Input Current

≤11A

Efficiency

≥93%

Power Factor

≥0.98

Applicable Battery

48V, 16S, LiFePO4

Shell Material

Aluminum

Protection Level

IP67

Operating Temperature

-40℃~60℃

Storage Temperature

-55℃~100℃

Noise

≤45dB

LED Light Indicator For Charging Process

Standard

Dimension (LxWxH)

190*140*74.5 mm (7.5*5.5*2.9 in)

Weight

2.0 kg (4 lbs)
