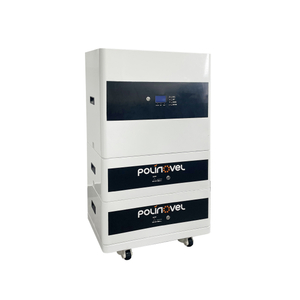

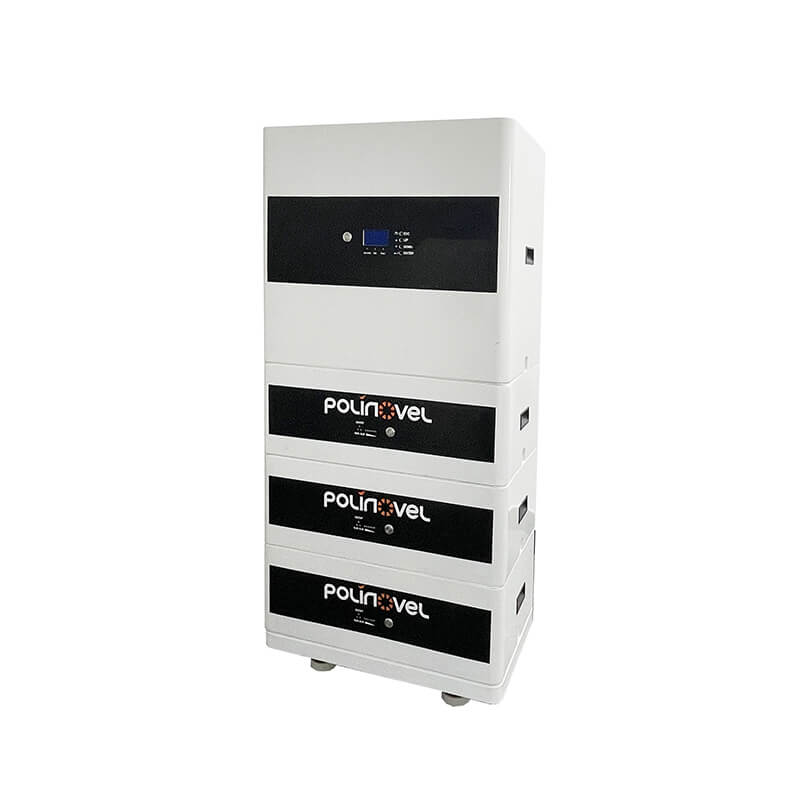

Polinovel BESS series are 48v lithium home energy storage systems that store solar power for backup, and keep
house appliances running seamlessly when the grid goes down. The stackable modular design support up to 15
batteries in parallel connection for flexible energy expansion. The integrated system with hidden wiring and plug
connectors is simple to install.
MODEL | BESS300 |
Battery Parameter | |
Energy | 15.36kWh |
Battery Type | Lithium iron phosphate (LiFePO4) |
Nominal Capacity | 300Ah |
Nominal Voltage | 51.2V |
Operating Voltage | 44.8V ~ 54.75V |
Charge Current | Standard 50A, Max. 100A |
Continuous Discharge Current | 100A |
Peak Discharge Current | 150A @ 1s |
BMS | Yes (intelligent protection BMS per module) |
Solar Inverter Parameter | |
Rated Output Power | 5KVA / 5KW |
Peak Output Power | 10KVA |
Wave Form | Pure Sine Wave |
AC Output | 230Vac, 50/60Hz |
Solar Charger (MPPT) Parameter | |
Max. PV Array Power | 4.5KW |
MPPT Voltage Range | 60Vdc - 115Vdc |
Max. PV Array Open Circuit Voltage | 145Vdc |
Max. Solar Charge Current | 60A |
Max. Efficiency | 98% |
AC Charger Parameter | |
Max. AC Charge Current | 60A |
AC Input | 230Vac |
Selectable Voltage Range | 170~280Vac |
Physical Parameter | |
Dimension (L x W x H) | 620x390x1321.5mm |
Net Weight | 170kg |
Others | |
IP Grade | IP54 (water and dust resistance) |
Communication | WiFi/GPRS (Optional) |
Certification | CE, MSDS, UN38.3 |
Warranty | Standard 5 years, 10 years optional |
