High Compatibility With Most Solar Inverter Brands
Communication protocol with good compability with most popular solar inverters in the market
Wall-mounted Home Power Storage System Minimize Installation Space
High Compatibility With Most Solar Inverter Brands
Communication protocol with good compability with most popular solar inverters in the market
Wall-mounted Home Power Storage System Minimize Installation Space

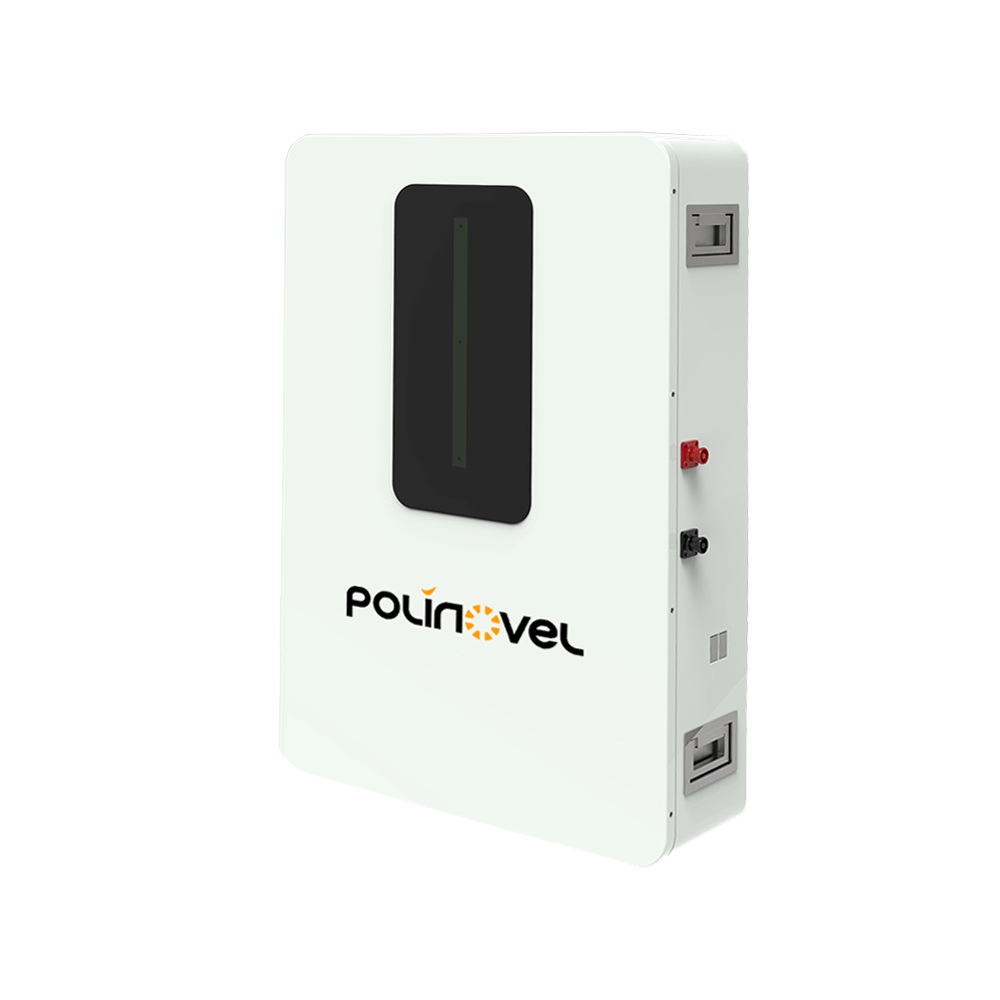

Model | WALL1000 | |
Nominal Voltage | 48V (15S) | 51.2V (16S) |
Nominal Capacity | 200Ah | 200Ah |
Energy | 9.6KWh | 10.24KWh |
Dimension (H*W*D) mm | 823*553*170 | 823*553*170 |
Weight | 87kg | 92kg |
Recommend Charge Current | 50A | 50A |
Max. Charge Current | 100A | 100A |
Max. Constant Discharge Current | 100A/150A | 100A/150A |
Max. Modules in Parallel | 15pcs in parallel | |
Communication | RS485, CAN | |
Battery Type | Lithium Iron Phosphate (LiFePO4) | |
Self Discharge Per Month | <3% | |
IP Rating | IP55 | |
Charge Temperature | 0 to 50 ºC | |
Discharge Temperature | -20 to 60 ºC | |
Storage Temperature | 15 to 35 ºC |
Model | WALL1000 | |
Nominal Voltage | 48V (15S) | 51.2V (16S) |
Nominal Capacity | 200Ah | 200Ah |
Energy | 9.6KWh | 10.24KWh |
Dimension (H*W*D) mm | 823*553*170 | 823*553*170 |
Weight | 87kg | 92kg |
Recommend Charge Current | 50A | 50A |
Max. Charge Current | 100A | 100A |
Max. Constant Discharge Current | 100A/150A | 100A/150A |
Max. Modules in Parallel | 15pcs in parallel | |
Communication | RS485, CAN | |
Battery Type | Lithium Iron Phosphate (LiFePO4) | |
Self Discharge Per Month | <3% | |
IP Rating | IP55 | |
Charge Temperature | 0 to 50 ºC | |
Discharge Temperature | -20 to 60 ºC | |
Storage Temperature | 15 to 35 ºC |
