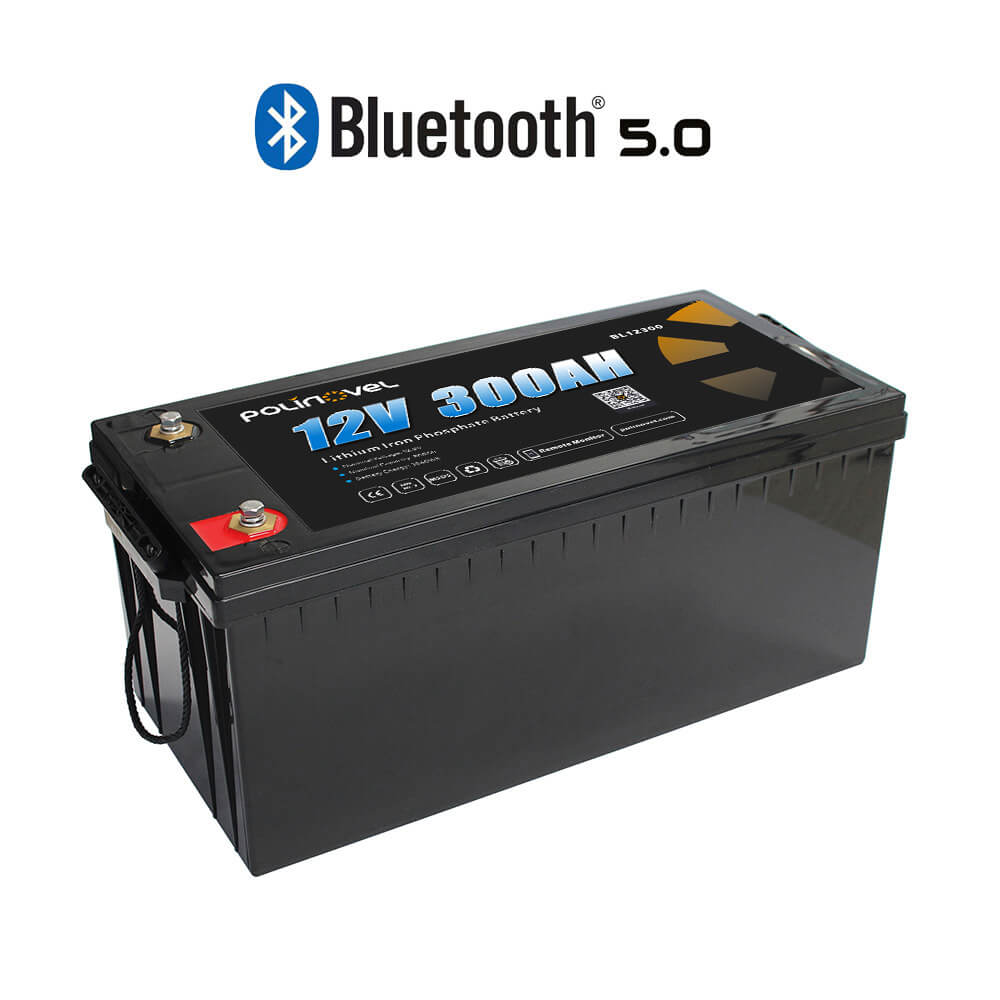

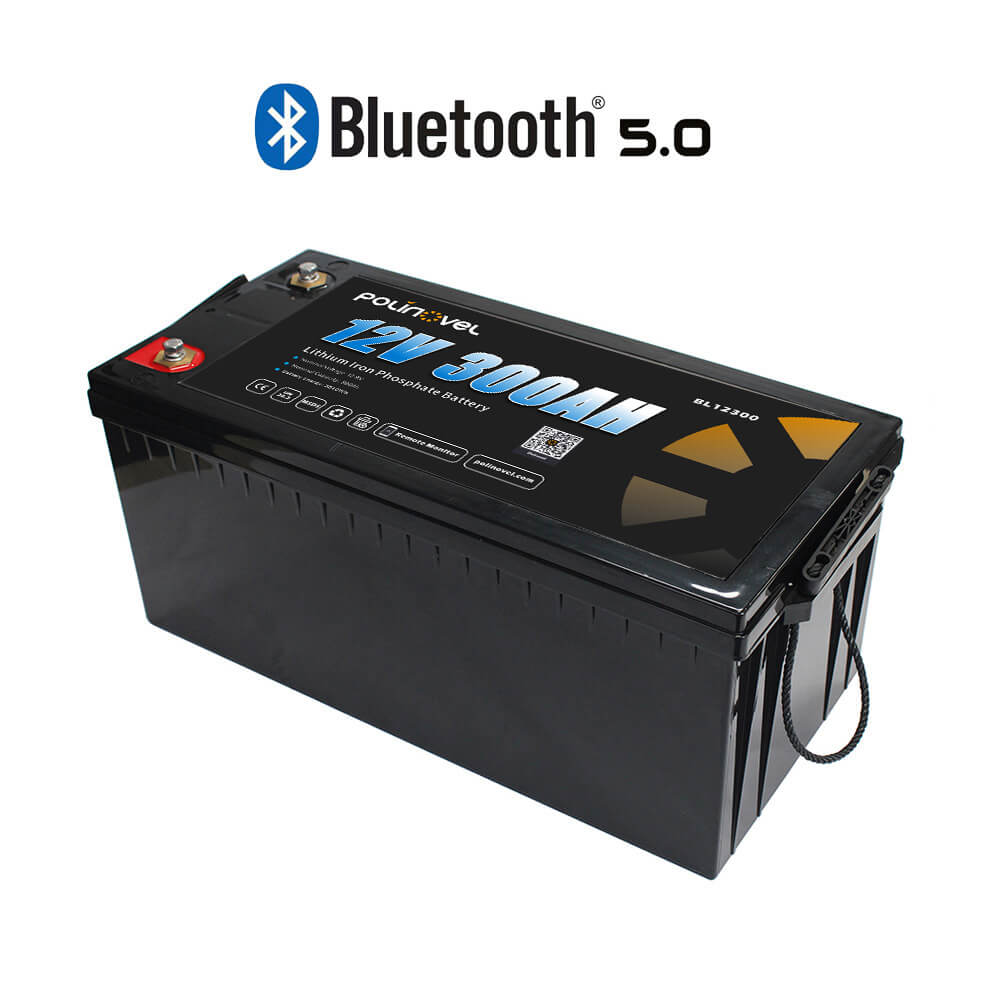

Model | BL12300 |
Nominal Voltage | 12.8V |
Nominal Capacity | 300Ah |
Energy | 3840Wh |
Recommend Charge Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Max. Charge Current | 100A |
Max. Constant Discharge Current | 200A |
Dimension (L*W*H) | 522*269*218 mm (20.6*10.6*8.6 in) |
Weight | 35 kg (77 lbs) |
Terminal | M8 |
Casing Material | ABS |
IP Rating | IP65 |
Battery Type | Lithium Iron Phosphate (LiFePO4) |
Self Discharge Per Month | <3% |
Charge Temperature | 0 to 45ºC |
Discharge Temperature | -20 to 60ºC |
Storage Temperature | 0 to 40ºC |
