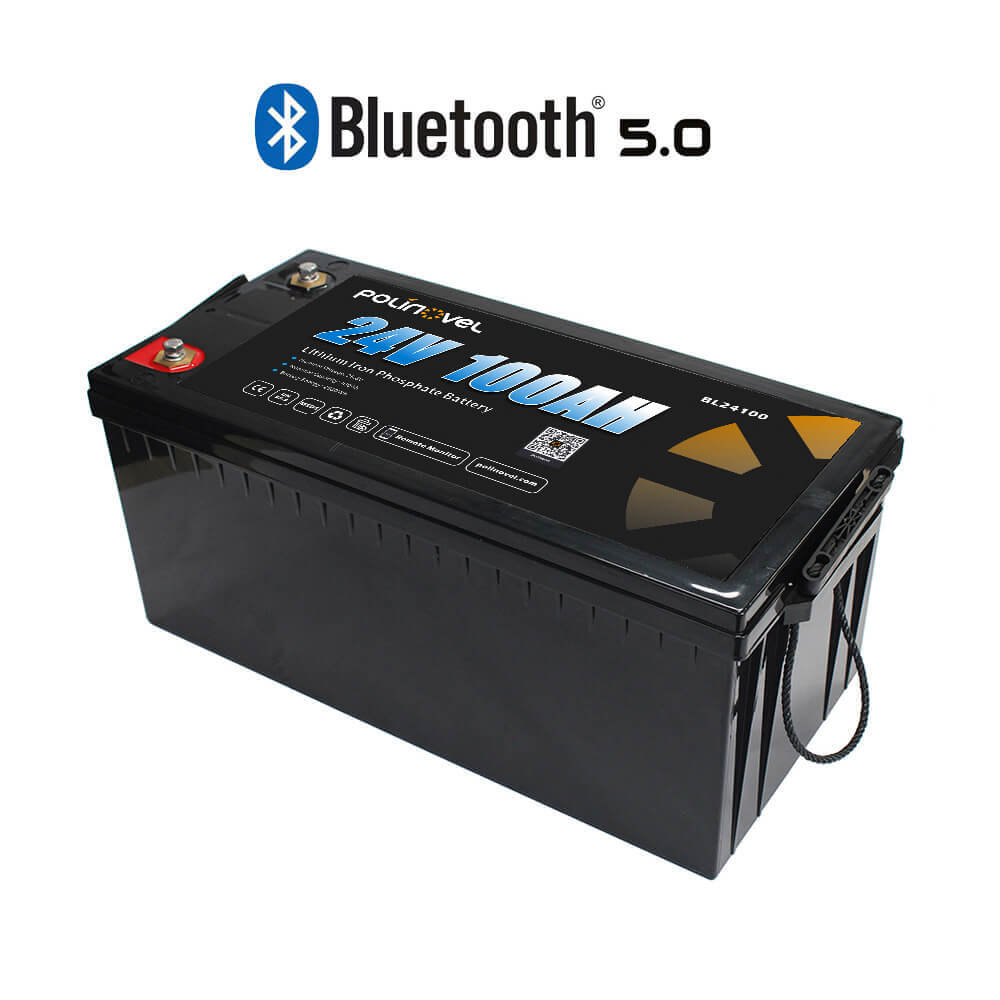

Model | BL24100 |
Nominal Voltage | 25.6V |
Nominal Capacity | 100Ah |
Energy | 2560Wh |
Recommend Charge Voltage | 29.2V |
Discharge Cut-off Voltage | 20V |
Max. Charge Current | 100A |
Max. Constant Discharge Current | 200A |
Dimension (L*W*H) | 522*240*218 mm (20.6*9.4*8.6 in) |
Weight | 27 kg (60 lbs) |
Terminal | M8 |
Casing Material | ABS |
IP Rating | IP65 |
Battery Type | Lithium Iron Phosphate (LiFePO4) |
Self Discharge Per Month | <3% |
Charge Temperature | 0 to 45ºC |
Discharge Temperature | -20 to 60ºC |
Storage Temperature | 0 to 40ºC |
