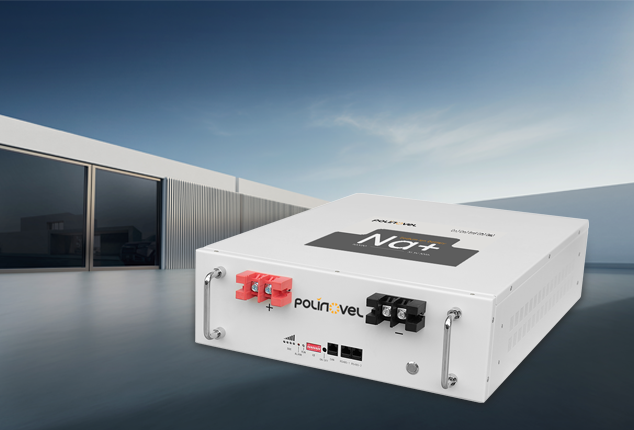

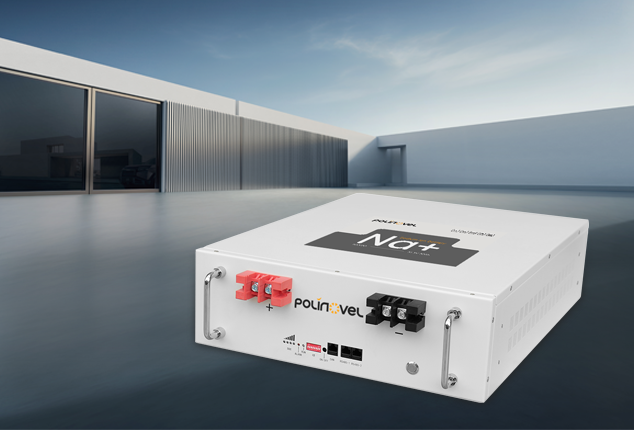

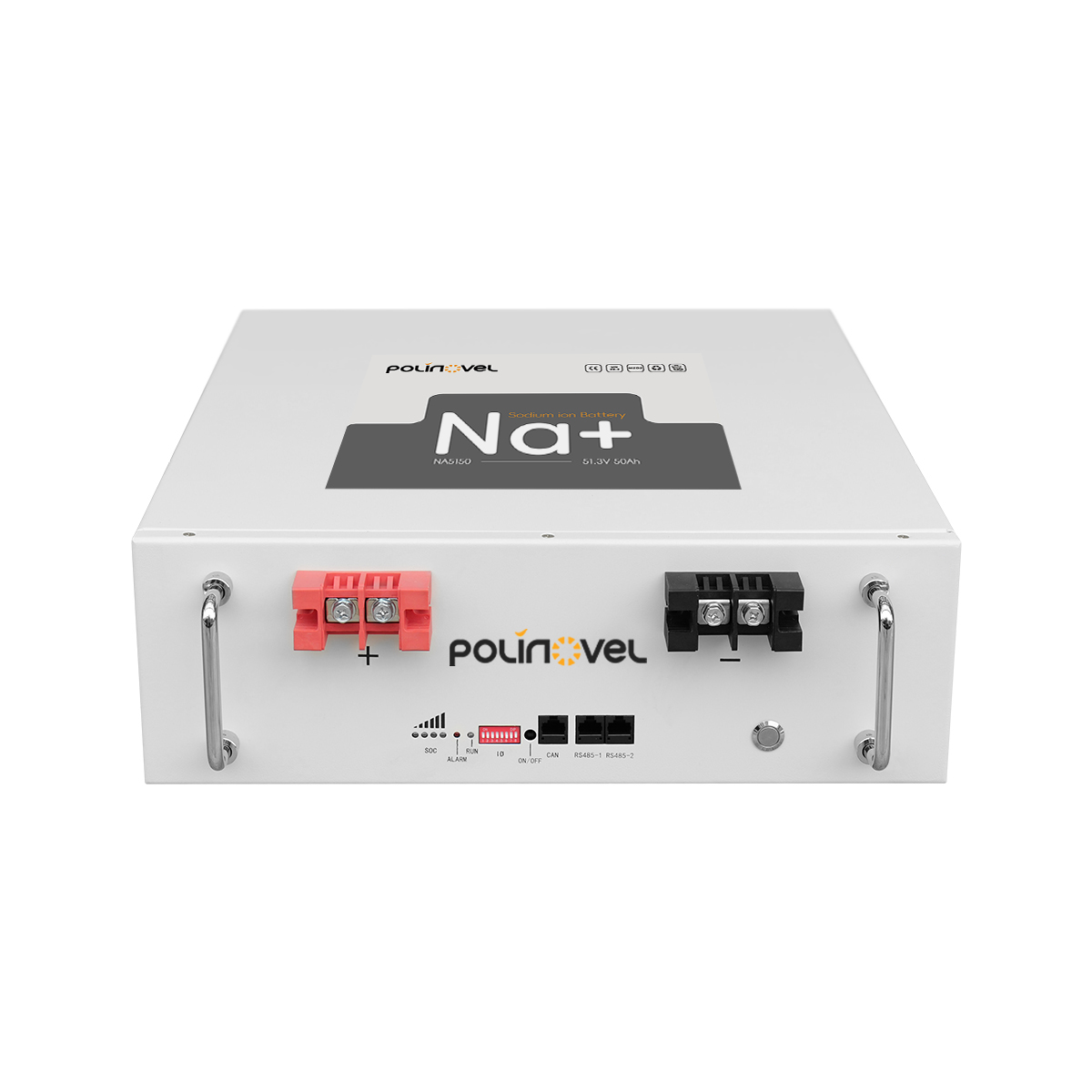

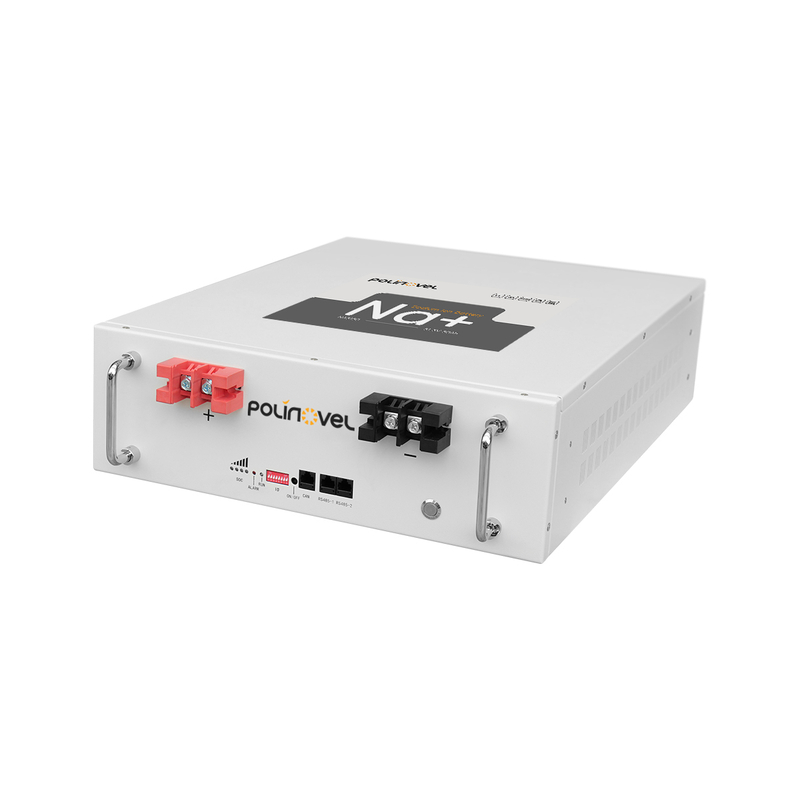

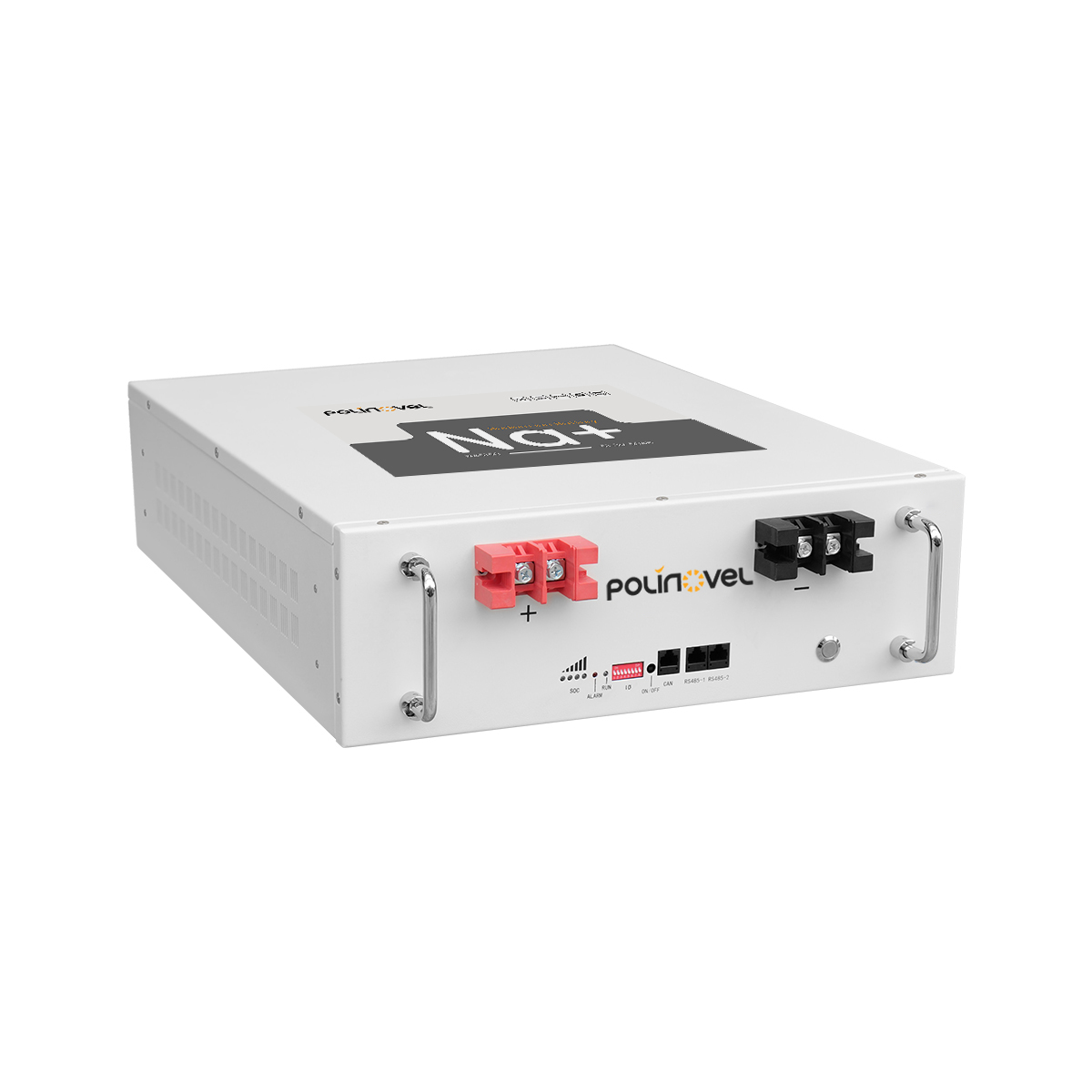

The Polinovel 51.3V 50Ah rack-mounted sodium ion battery provides 2.565kWh of nominal energy in a compact module designed for backup power and modular energy storage applications.
With up to 100A discharge current, an 8,000-cycle design under specified test conditions, and discharge operation down to -40°C, it provides a flexible battery option for residential storage, communication backup and low-temperature power applications. Up to 20 batteries can be connected in parallel for greater system capacity.

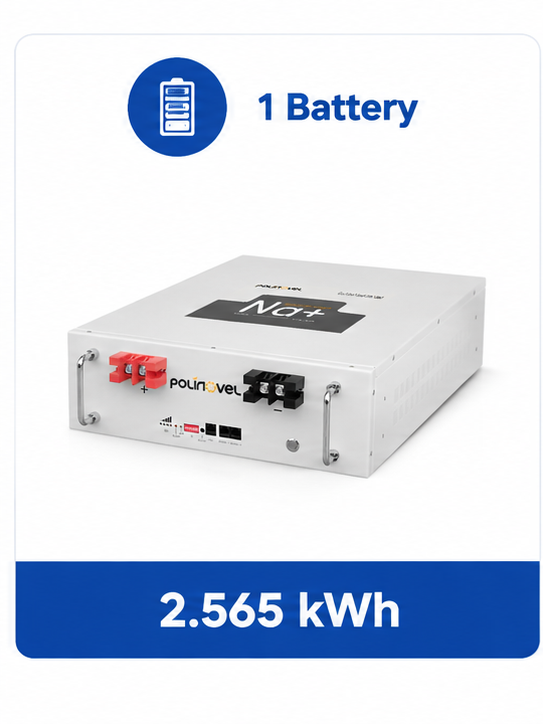

The 2.565kWh battery module combines energy storage capacity with a compact rack-mounted structure, making it suitable for installations where system space and modularity matter.
Supports up to 100A maximum discharge current, providing stable power delivery for backup and energy storage applications with changing load demands.
Designed for discharge operation from -40°C to 60°C, extending battery usability in colder environments where temperature can limit conventional battery performance.

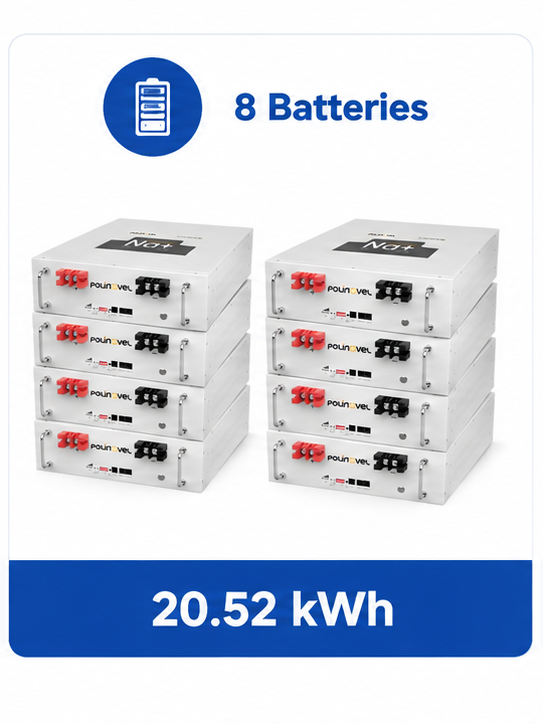

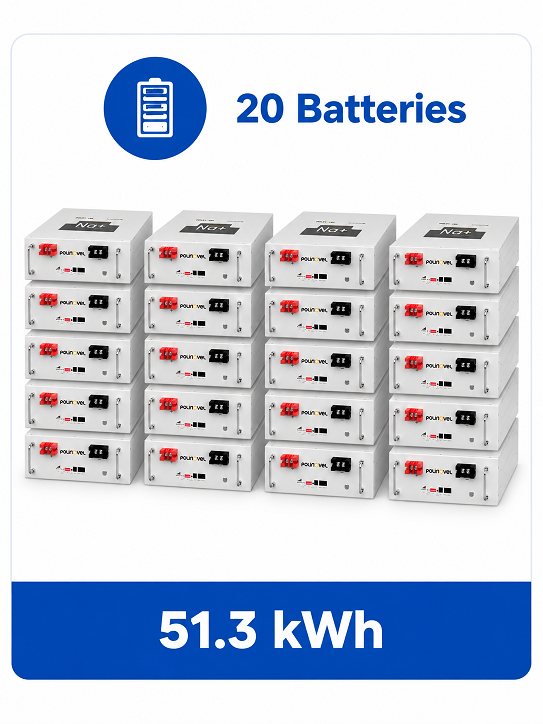

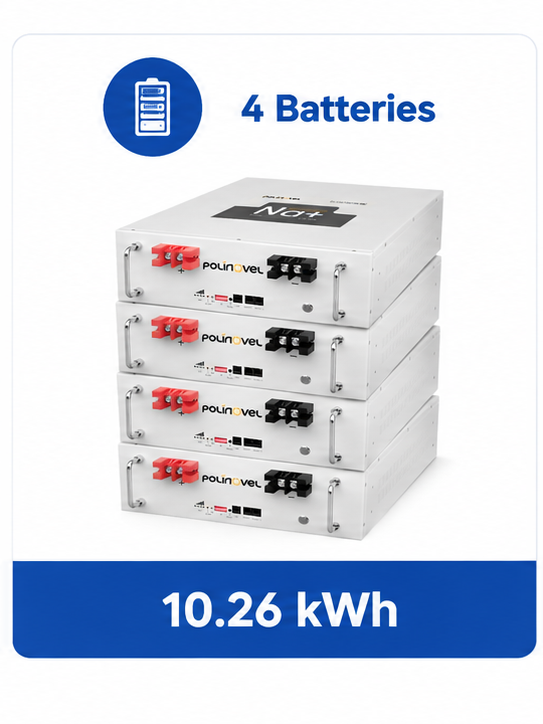

Connect up to 20 battery modules in parallel, allowing storage capacity to be expanded as backup duration or energy requirements increase.
Specification
Model | NA5150 |
Nominal Voltage | 51.3V |
Nominal Capacity | 50Ah |
Energy | 2565Wh |
Charge Voltage | 60V |
Discharge Cut-off Voltage | 39.6V |
Charge Current | ≤50A |
Constant Discharge Current | 100A |
Cycle Life | 8000 cycles (0.5C, 90% DOD, 25±2°C) |
Dimension | 440*550*140 mm |
Weight | 45kg |
Communication | CAN / RS485 / WiFi |
Parallel Connection | Up to 20 units |
Humidity | 15–85% RH |
Charge Temperature | 0~55ºC |
Discharge Temperature | -40~60ºC |
Storage Temperature | -20~60ºC |
Operating Altitude | <3000m |
Protection Rating | IP20 |
Cooling Method | Natural Cooling |
Installation Environment | Indoor |
Certifications & Documents | UN38.3 / MSDS / CE |
Multiple protection functions help support stable and reliable battery operation under different operating conditions.
Voltage Protection
Overvoltage and undervoltage protection
Temperature Protection
Temperature monitoring and protection
Short-Circuit Protection
Protection against abnormal short-circuit conditions
Communication Fault Protection
Protection against communication failure
Flexible scalability to match your project needs.
Provides compact battery storage for residential backup and energy management applications, with modular expansion for changing household energy requirements.
Supports backup power applications for communication equipment where reliable battery discharge and long service life are required.
The -40°C minimum discharge temperature makes the battery suitable for energy storage and backup applications exposed to colder operating environments.
Provides modular battery backup for computing and IT equipment where stable power availability and scalable capacity are important.

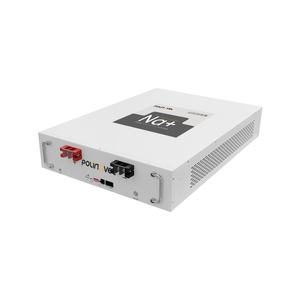

Compare 50Ah, 100Ah, and 170Ah sodium ion batteries for energy storage to find the right balance of capacity, power, installation space, and future expansion.
Comparison | 51.3V 50Ah | ||
|---|---|---|---|
Nominal Capacity | 50Ah | 100Ah | 170Ah |
Energy per Battery | 2.565 kWh | 5.13 kWh | 8.72 kWh |
Max. Charge Current | 50A | 100A | 150A |
Max. Discharge Current | 100A | 200A | 200A |
Dimensions | 440 × 550 × 140 mm | 560 × 800 × 140 mm | 440 × 780 × 235 mm |
Weight | 45 kg | 80.5 kg | 125 kg |
Best Fit | Lower-capacity modular storage | Balanced capacity & power | Higher energy per battery |
