The Polinovel 51.3V 160Ah sodium-ion battery delivers 8.208kWh of nominal energy in a floor-standing design. It integrates a BMS, a 4.3-inch touchscreen and CAN/RS485 communication for battery monitoring and inverter integration. With a compatible inverter, it stores solar energy for later use and supports backup power for selected household loads.
Specified for discharge down to −40°C, the battery offers an option for energy storage projects in cold climates. Charging is supported from 0°C to 60°C.

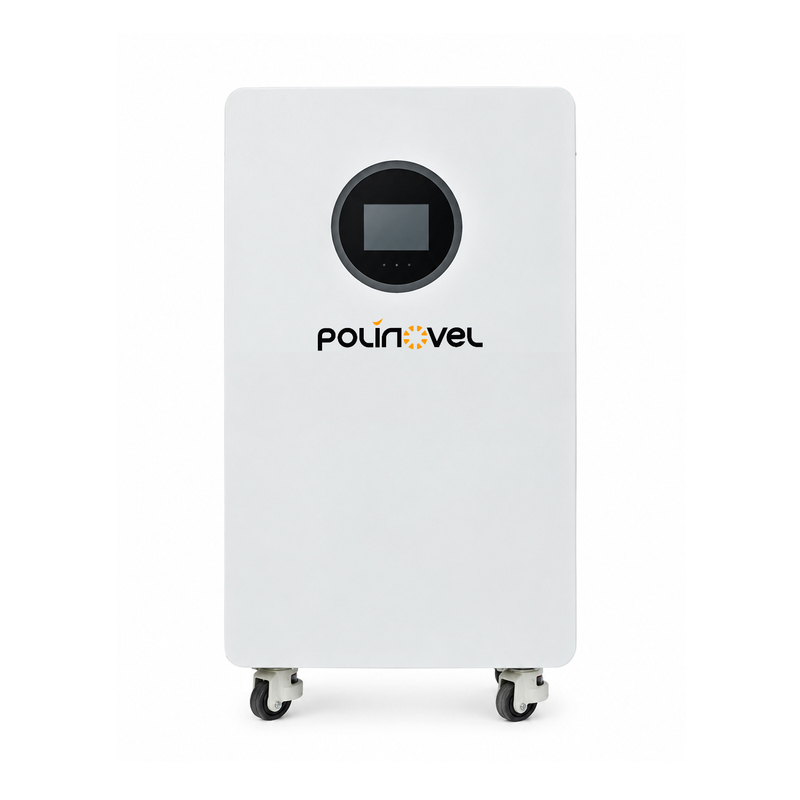

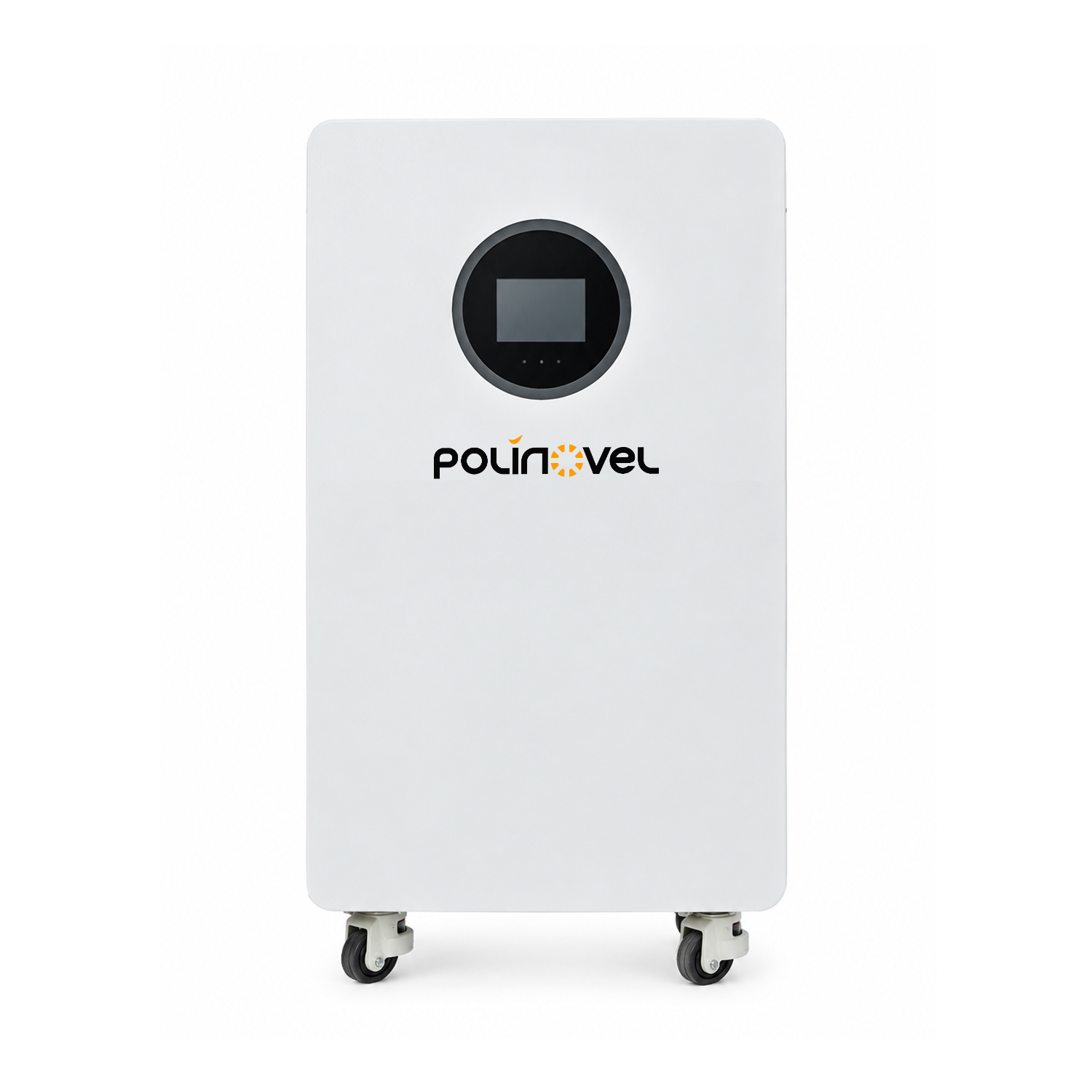

The upright enclosure provides a dedicated battery unit for floor installation. Its 560 × 230mm enclosure footprint helps installers plan the battery position and cable routing.
The built-in BMS monitors voltage, current and temperature, with protection against overcharge, overdischarge, overcurrent and short circuits.
Model | NA5160 |
Electrical Specifications | |
Battery Type | Sodium-ion |
Nominal Voltage | 51.3V |
Rated Capacity | 160Ah |
Minimum Capacity | 155Ah |
Nominal Energy | 8.208kWh |
Battery Configuration | 18S1P |
Charging Voltage | 62.1V |
Discharge Cut-off Voltage | 36V |
Standard Charging Current | 80A |
Maximum Continuous Charging Current | 80A |
Maximum Continuous Discharging Current | 160A |
Standard Charging Time | Approximately 2.5 hours |
Internal Resistance | ≤15mΩ |
Operating Conditions | |
Charging Temperature | 0°C to 60°C |
Discharging Temperature | −40°C to 60°C |
Storage Temperature — Less Than 12 Months | −20°C to 35°C |
Storage Temperature — Less Than 3 Months | −20°C to 45°C |
General Specifications | |
Communication Interfaces | CAN / RS485 |
Display | 4.3-inch Touchscreen |
Bluetooth Module | Included |
Dry Contact | Included |
Parallel Connection Ports | IN / OUT |
Protection | |
BMS Functions | Overcharge, overdischarge, overcurrent, short-circuit and temperature protection; cell balancing and alarms |
Circuit Breaker | Included |
Dimensions (W × D × H) | 560 × 230 × 830mm, ±2mm |
Weight | 128 ± 3kg |
With a compatible inverter, the Polinovel 51.3V 160Ah sodium-ion battery can support solar self-consumption, essential-load backup and off-grid energy storage.
Store surplus solar energy generated during the day for evening household use. As a sodium-ion battery for solar storage, it helps increase solar self-consumption and reduce reliance on grid electricity.

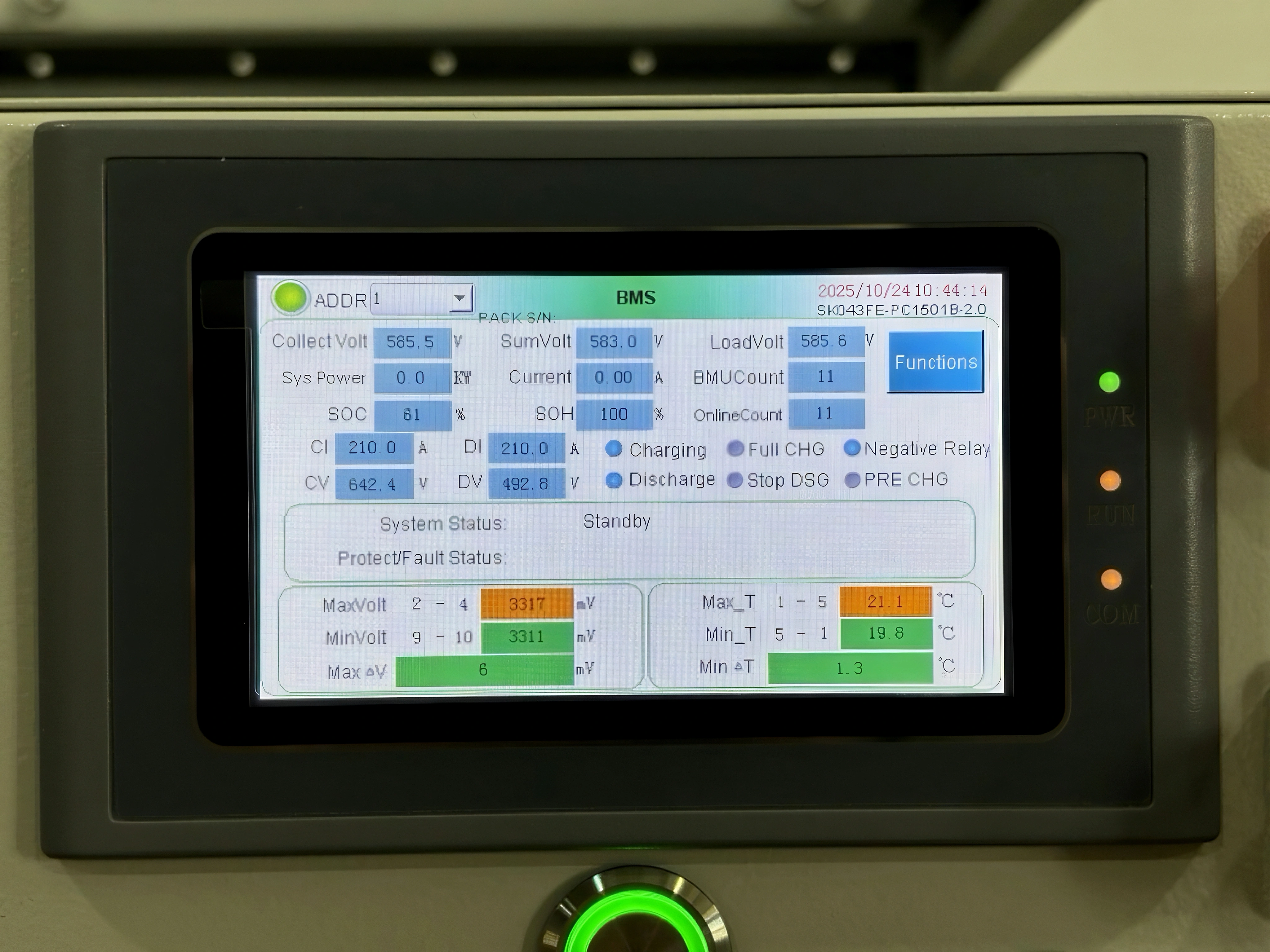

The integrated BMS monitors battery voltage, current and temperature during charging and discharging. Built-in protection, cell balancing and alarms help manage battery operation, while the 4.3-inch touchscreen provides local access to operating information.
Track battery voltage and charging or discharging current to check operating status.
Monitor battery temperature and apply protection when charging or discharging limits are reached.
Help manage voltage differences between cells through the BMS balancing function.

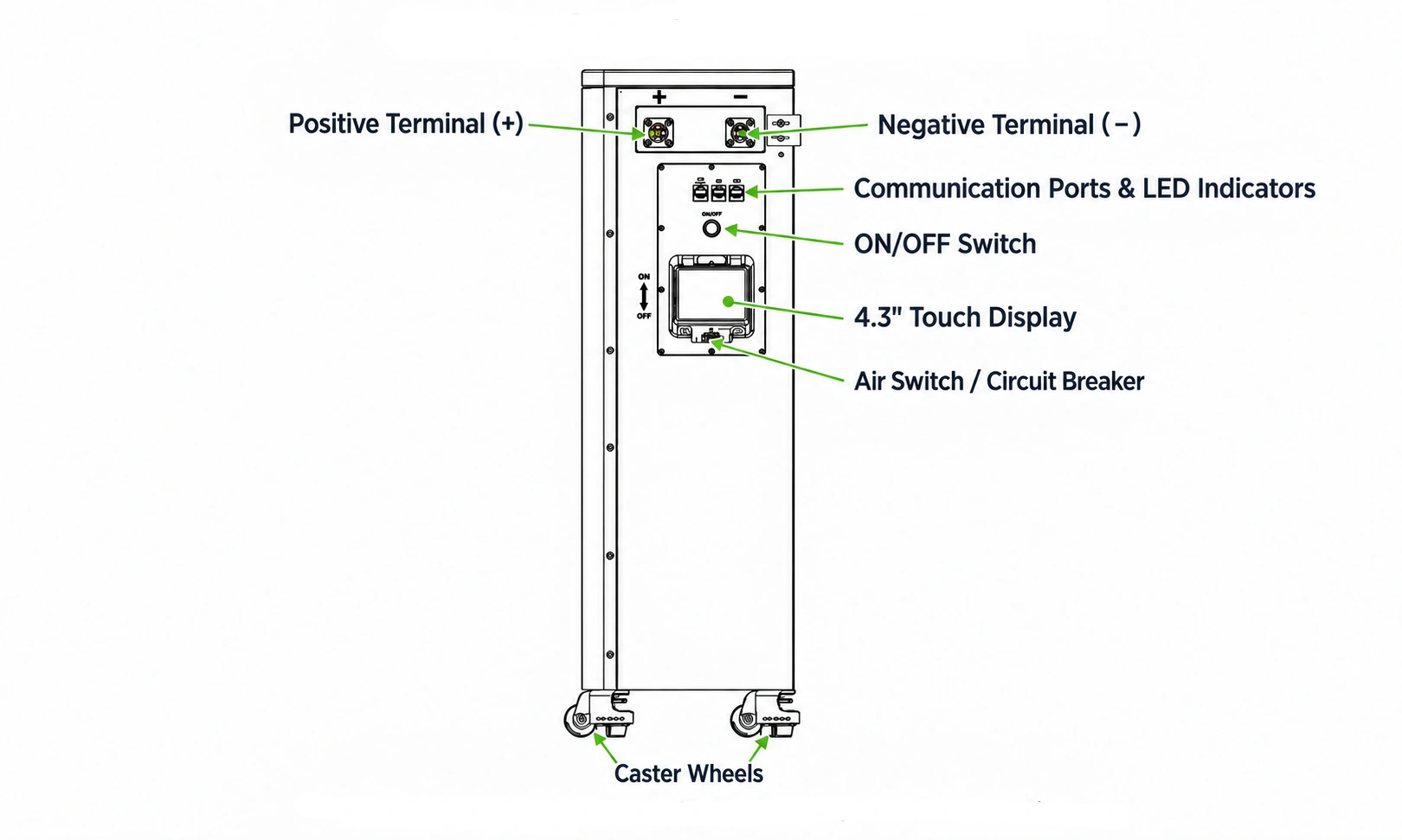

The Polinovel sodium-ion battery features CAN and RS485 communication for integration with a compatible inverter. Accessible power terminals and communication ports help organize electrical and data connections during system setup.
CAN & RS485 Communication
Exchange battery operating data with a compatible inverter through the supported communication interfaces.
Electrical Compatibility
Match the inverter’s battery voltage range and charge/discharge settings to the battery specifications.
Communication Cable Matching
Confirm the communication protocol and RJ45 pin assignment for both devices before connection.

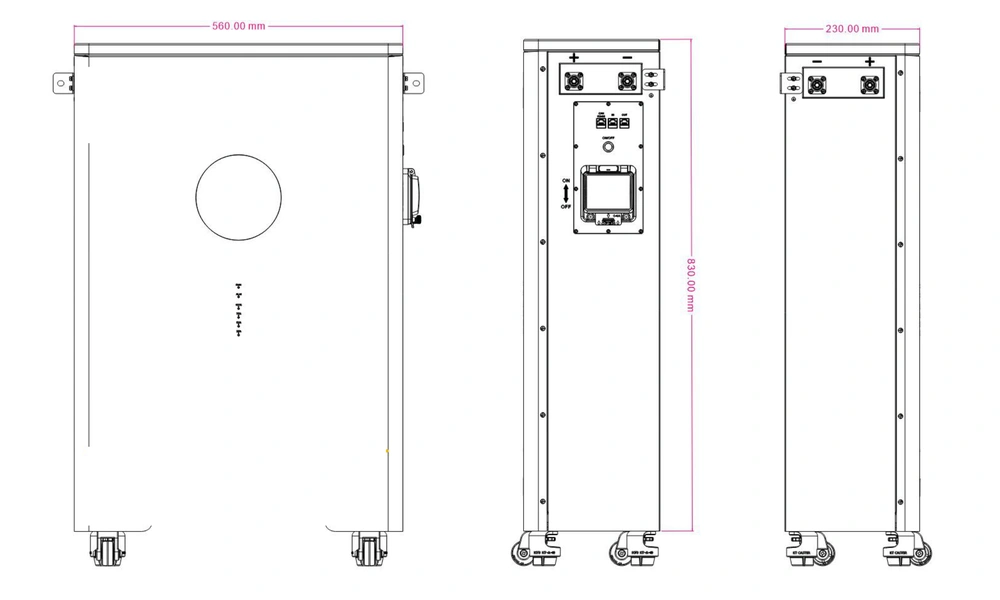

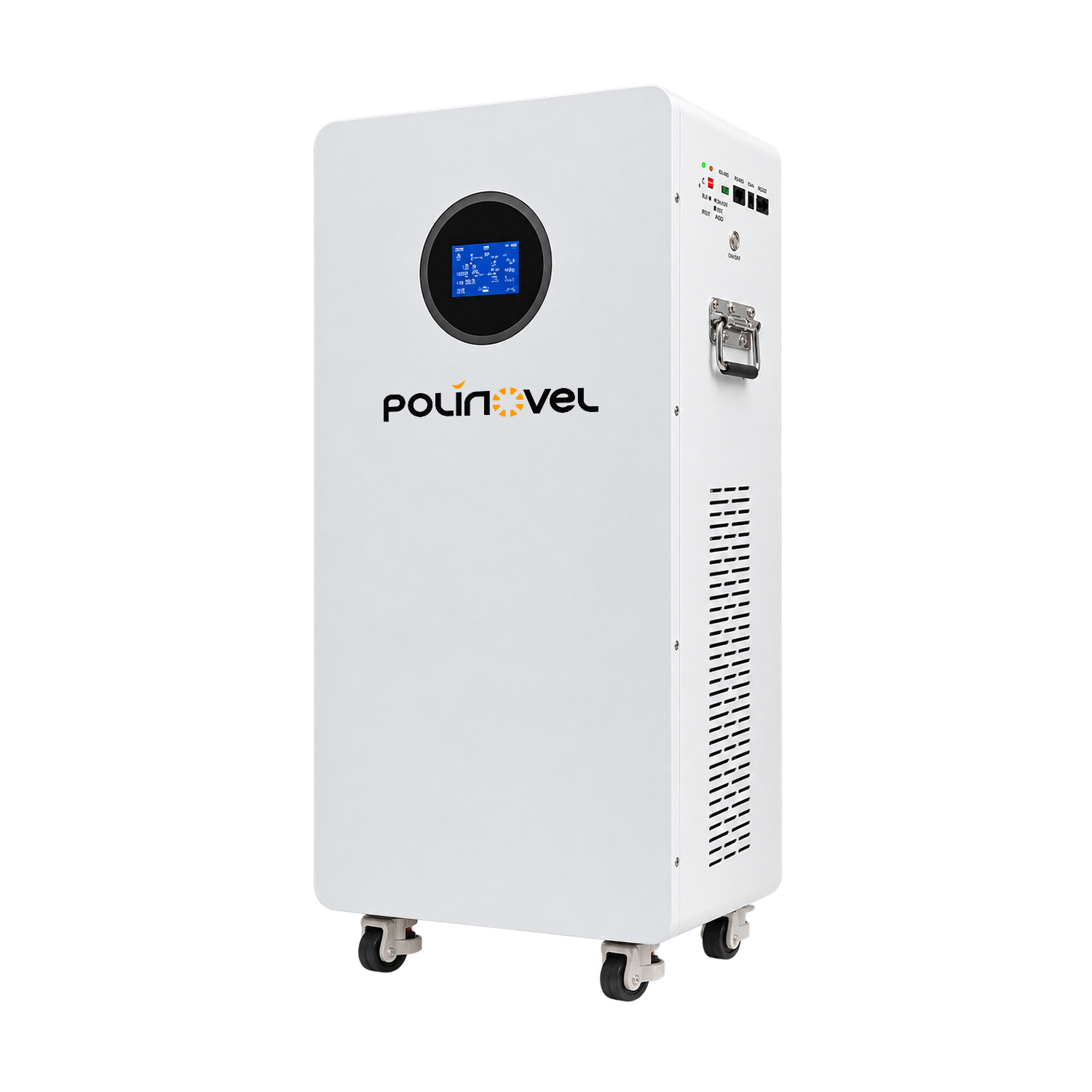

The Polinovel 51.3V 160Ah sodium-ion battery comes in a vertical, floor-standing cabinet with a slim 230 mm-deep profile. The enclosure measures 560 × 230 × 830 mm (W × D × H), excluding mounting brackets and caster wheels. Bottom-mounted wheels make it easier to position the battery, while the side panel provides access to its power terminals, communication ports and controls.
Discuss your application and energy requirements to identify a suitable battery option.
Review inverter specifications, communication requirements and electrical connections with our team.
Discuss private labeling and product customization options for your market.
Can the battery charge and discharge below freezing?
The specified discharge temperature range is −40°C to 60°C, while charging is specified from 0°C to 60°C. Low-temperature discharge capability does not mean the battery can charge below 0°C. Available output also depends on operating conditions.
Can multiple batteries be connected in parallel?
Which inverters are compatible with this battery?
How long can it supply backup power?
Can this sodium-ion home battery work with solar panels?
