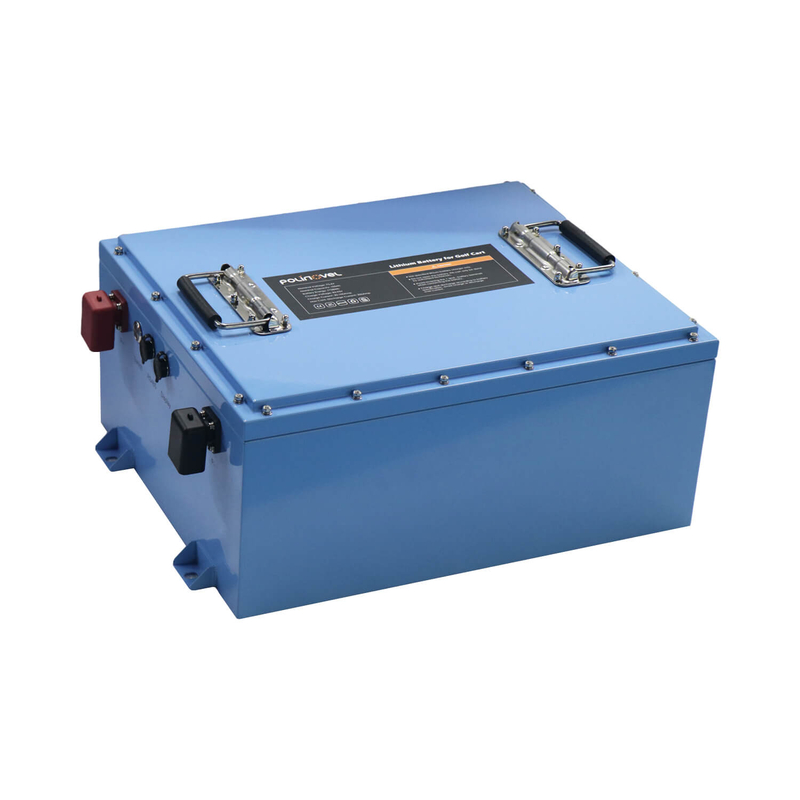

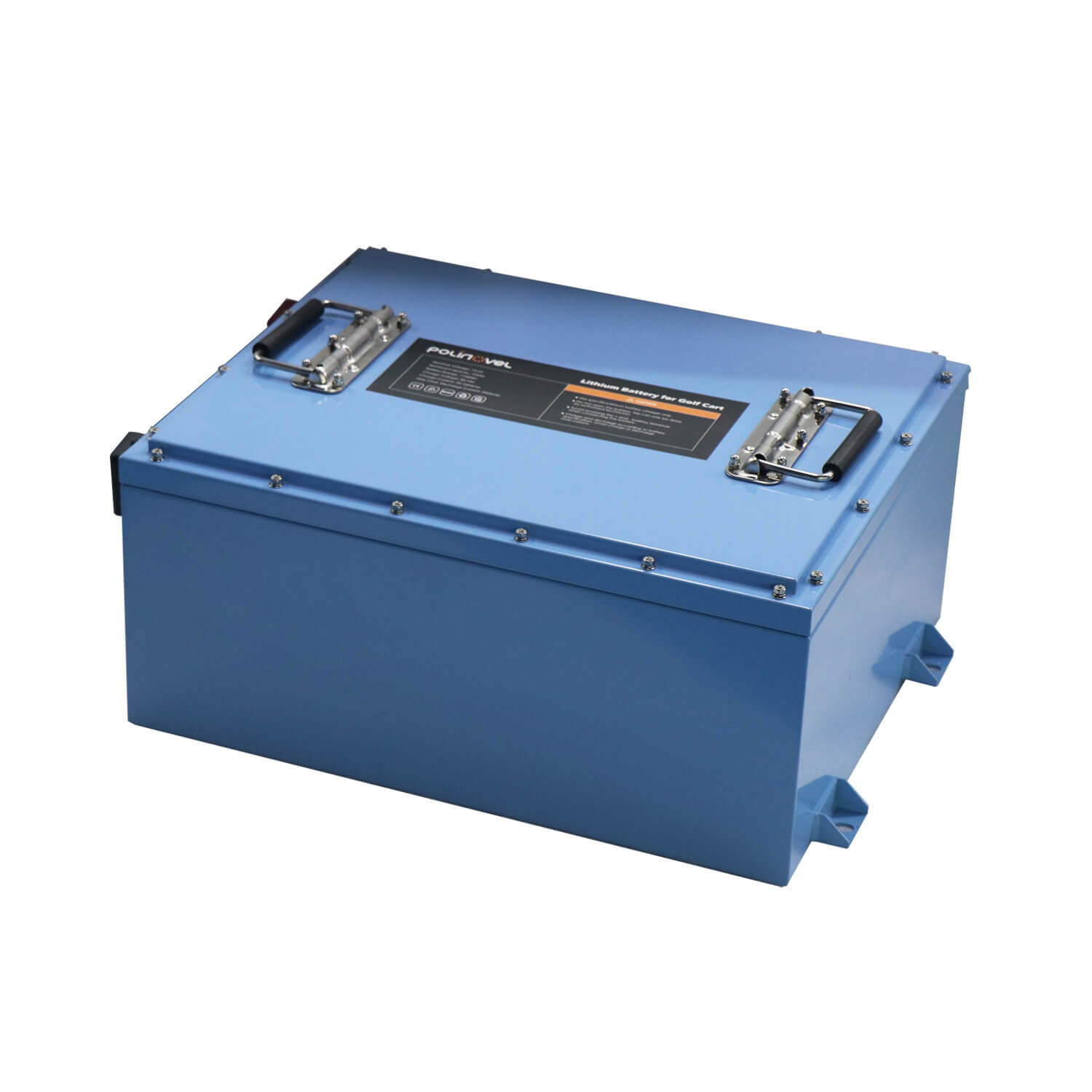

This 72V 105Ah lithium golf cart battery offers great overall performance - high safety level, less weight, long life and fast acceleration up hills. It is a great drop-in replacement for lead acid batteries, with no space modifications or additional components required. Easy to install in a variety of golf buggies, including those made by Yamaha, Club Car, EZGO, and more.
Grade-A LiFePO4 Battery Cells
This lithium golf cart battery utilizes Grade A prismatic LiFePO4 cells that provide a longer lifespan and safe performance. The cells are laser welded with aluminum sheet and connected with high quality AWG cables. Every detail has been carefully treated to ensure reliability.
Reliable Built-in BMS
The BMS will identify any issues related to battery performance and shut down any cells not working properly to prevent further damage. The BMS will handle cell balancing and protect the batteries from over-charging, over-discharging, over-current, short circuits, etc.
What's more, with advanced BMS built in, this LiFePO4 golf cart battery can effortlessly handle motor and controller upgrades, providing customers with the reliability and power needed to take the riding experience to the next level.
Large Output Power
This GOLF Series LFP battery is designed to provide excellent performance with its high output power. You can expect a significant increase in both torque and speed, which helps with hill climbing. In addition, this GOLF Series lithium battery is known for its long-lasting power, allowing you to play longer on the green.
Lighter Weight
This deep cycle lithium ion battery is significantly lighter than its lead acid counterparts, which contributes to the golf cart's weight reduction. This results in more efficient energy consumption, higher top speed, improved acceleration, better handling and braking.
Specification
Model | Golf72105 |
Nominal Voltage | 73.6V |
Nominal Capacity | 105Ah |
Energy | 7728Wh |
Standard Charge Voltage | 83.95V |
Discharge Cut-off Voltage | 57.5V |
Standard Charge Current | 50A |
Max. Charge Current | 100A |
Max. Constant Discharge Current | 200A |
Peak Discharge Current | 420A @30s |
Dimension | 674*334*243 mm (26.5*13.1*9.6 in) |
Weight | 78 kg (172 lbs) |
Cycle Life | >2500 (1C@ DOD100%); >4000 (0.2C@ DOD100%) |
Charge Temperature | 0~60 °C |
Discharge Temperature | -20~ 60°C |
Storage Temperature | 10~ 45°C |
