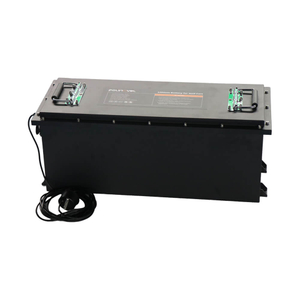

Light Weight 48V 100Ah li ion Light EV Battery for Golf Cart
Home » Products » Light EV Battery » Light Weight 48V 100Ah li ion Light EV Battery for Golf Cart

Light Weight 48V 100Ah li ion Light EV Battery for Golf Cart

Model: CLASSIC48100
Availability:

主图-ES4860-1


custom

BMS2-update

construction

More advantage-update

Project


ELECTRICAL SPECIFICATIONS
ModelCLASSIC48100
Nominal Voltage51.2V
Nominal Capacity105Ah
Energy5370Wh
Self Discharge<3%/month
Maximum Modules in Series or ParallelN/A
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)770*200*275mm (30.3*7.9*10.8 in)/ 472*334*243mm (18.6*13.1*9.6 in) / Customizable
Weight45-50kg (99.2-110 lbs)
Terminal TypeCustomizable
Case MaterialSPCC Steel With 250℃ High-Temperature Baking Paint
Enclosure ProtectionIP65
Cell TypePrismatic
ChemistryLiFePO4
CHARGE SPECIFICATIONS
Recommended Charge Current20A
Charge Current (0 to -10 ºC)≤0.1C
Charge Current (-20 to -10 ºC)≤0.05C
Recommended Charge Voltage56.8V-58.4V
Charge Voltage Cut-Off58.4V
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current100A / 150A
Peak Discharge Current200A(<10s) / 350A (<120s)
Discharge Voltage Cut-Off40V
TEMPERATURE SPECIFICATIONS
Discharge Temperature-20 to 60 ºC (-4 to 140 ºF)
Charge Temperature0 to 45 ºC (32 to 113 ºF)
Storage Temperature (1 month)-20 to 60 ºC (-4 to 140 ºF)
Storage Temperature (3 months)-20 to 45 ºC (-4 to 113 ºF)
Storage Temperature (6 months)-20 to 25 ºC (-4 to 77 ºF)
