ELECTRICAL SPECIFICATIONS | |

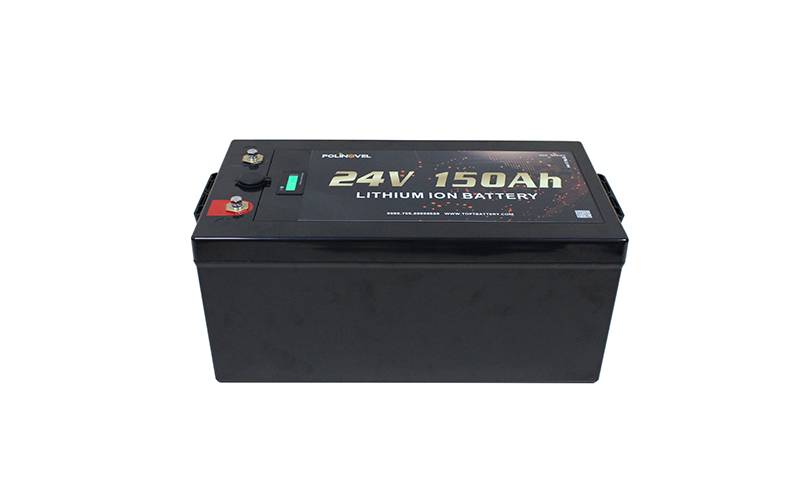

Model | HDN24150 |
Nominal Voltage | 25.6V |
Nominal Capacity | 150Ah |
Energy | 3840Wh |
Self Discharge | <3%/month |
Maximum Modules in Series or Parallel | 2 |
MECHANICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 520x 269 x 220 mm (20.5 x 10.6 x 8.7”) |
Weight | 38kg (83.8 lbs) |
Terminal Type | M8 |
Case Material | ABS |
Enclosure Protection | IP56 |
Cell Type | Cylindrical |
Chemistry | LiFePO4 |
CHARGE SPECIFICATIONS | |
Recommended Charge Current | 30A-75A |
Maximum Charge Current | 100A |
Charge Current (0 to -10 ºC) | ≤0.1C |
Charge Current (-20 to -10 ºC) | ≤0.05C |
Recommended Charge Voltage | 28.4V – 29.2V |
BMS Charge Voltage Cut-Off | 30.8V (3.85 ±0.025vpc, 1~1.5s) |
Reconnect Voltage | 30.4V (3.8 ±0.05vpc) |
DISCHARGE SPECIFICATIONS | |
Maximum Continuous Discharge Current | 100A |
Peak Discharge Current | 200A (<5s) |
BMS Discharge Current Cut-Off | 300A (±20A, 9±2ms) |
Recommended Low Voltage Disconnect | 20V |
BMS Discharge Voltage Cut-Off | 16V (2.0±0.05vpc, 120~180ms) |
Reconnect Voltage | 18.4V (2.3±0.1vpc) |
TEMPERATURE SPECIFICATIONS | |
Discharge Temperature | -20 to 60 ºC (-4 to 140 ºF) |
Charge Temperature | 0 to 45 ºC (32 to 113 ºF) |
Storage Temperature (1 month) | -20 to 60 ºC (-4 to 140 ºF) |
Storage Temperature (3 months) | -20 to 45 ºC (-4 to 113 ºF) |
Storage Temperature (6 months) | -20 to 25 ºC (-4 to 77 ºF) |
COMPLIANCE SPECIFICATIONS | |
Certifications | CE, UN38.3, MSDS |
Shipping Classification | UN 3480, CLASS 9 |
