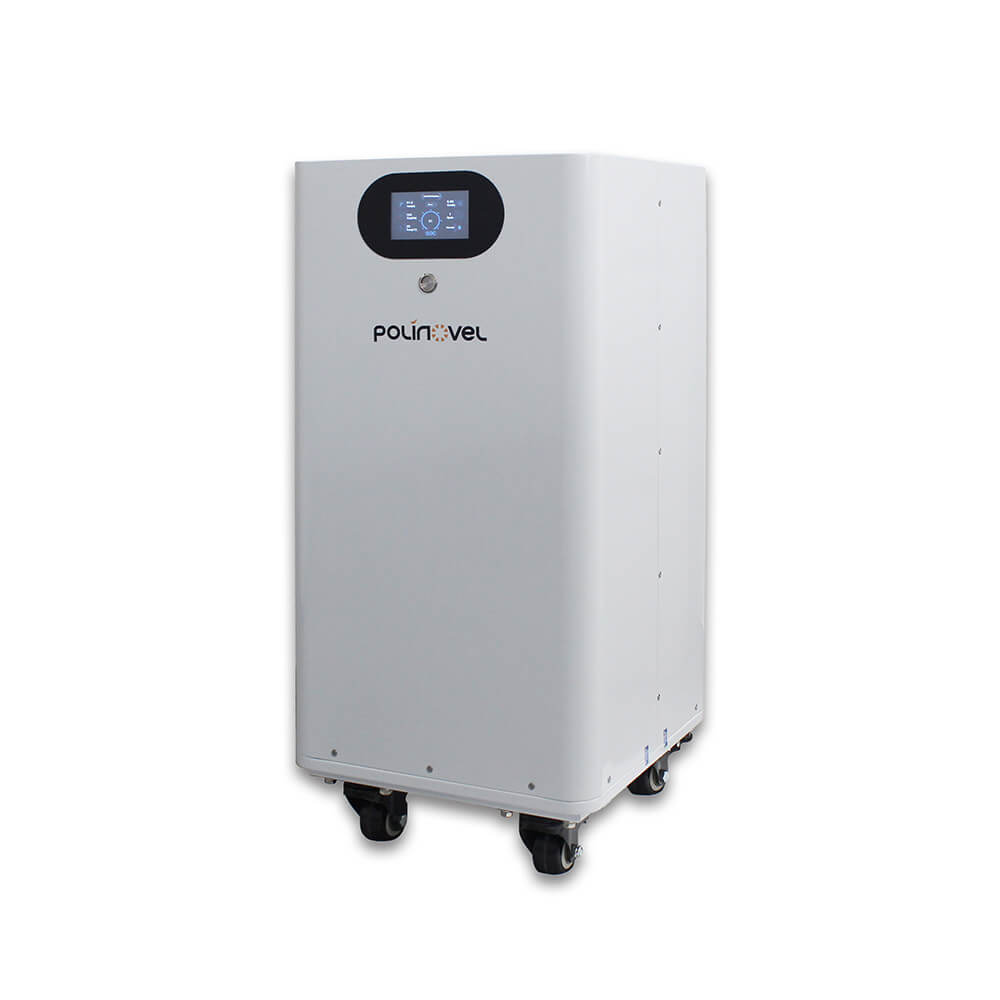

Polinovel 48V Vertical Series is a high-performance LiFePO4 battery solution to cater to large residential energy storage needs with capacities of 15kWh, 20kWh, and 25kWh. It offers superior energy efficiency, which allows homeowners to reduce their dependence on the utility grid and lower their energy bills.
Load-bearing Casters for Easy Installation
This Vertical Series lithium battery is designed with casters for easy movement and smooth installation. It is well-suited for households that have limited wall space or low load-bearing walls.
300A High-current BMS
This lithium home battery can easily drive a 10KW inverter and handle heavier loads with its 300A high-current BMS. This makes it an ideal source of reliable and sufficient power for homes with large energy needs.
Real-time Battery Status Monitoring
It has an LCD screen that displays important battery information like voltage, current, SOC, capacity, cycle, and temperature, allowing you to track battery status in real time.
Great Compatibility with Multiple Inverters
It has a built-in intelligent BMS that allows it to work with most inverters available in the market, ensuring seamless integration and operation.
Specification
Model | Vertical15 | Vertical20 | Vertical25 |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
Nominal Capacity | 300Ah | 400Ah | 500Ah |
Energy | 15.36kWh | 20.48kWh | 25.6kWh |
Charge Cut-off Voltage | 58V | 58V | 58V |
Discharge Cut-off Voltage | 40V | 40V | 40V |
Standard Charge Current | 100A | 100A | 100A |
Max. Charge Current | 200A | 200A | 200A |
Max. Constant Discharge Current | 200A | 200A | 200A |
Peak Discharge Current | 300A | 300A | 300A |
Communication | RS485/CAN | RS485/CAN | RS485/CAN |
Dimension | 420*300*900 mm (16.5*11.8*35.4 in) | 485*430*1025 mm (19.1*16.9*40.4 in) | 420*500*1025 mm (16.5*19.7*40.4 in) |
Weight | 140 kg (309 lbs) | 175 kg (386 lbs) | 220 kg (485 lbs) |
Charge Temperature | 0~50°C | 0~50°C | 0~50°C |
Discharge Temperature | -15~ 60°C | -15~ 60°C | -15~ 60°C |
