48V Lithium Home Solar Battery with Inverter

Home » Products » Other Products » 48V Lithium Home Solar Battery with Inverter

48V Lithium Home Solar Battery with Inverter

Plug-in & cable-less design
Built-in 5KW inverter
15 protections for added safety
Integrated UPS
Modular design for easy power expansion


Availability:



Inquiry Now

Parameter

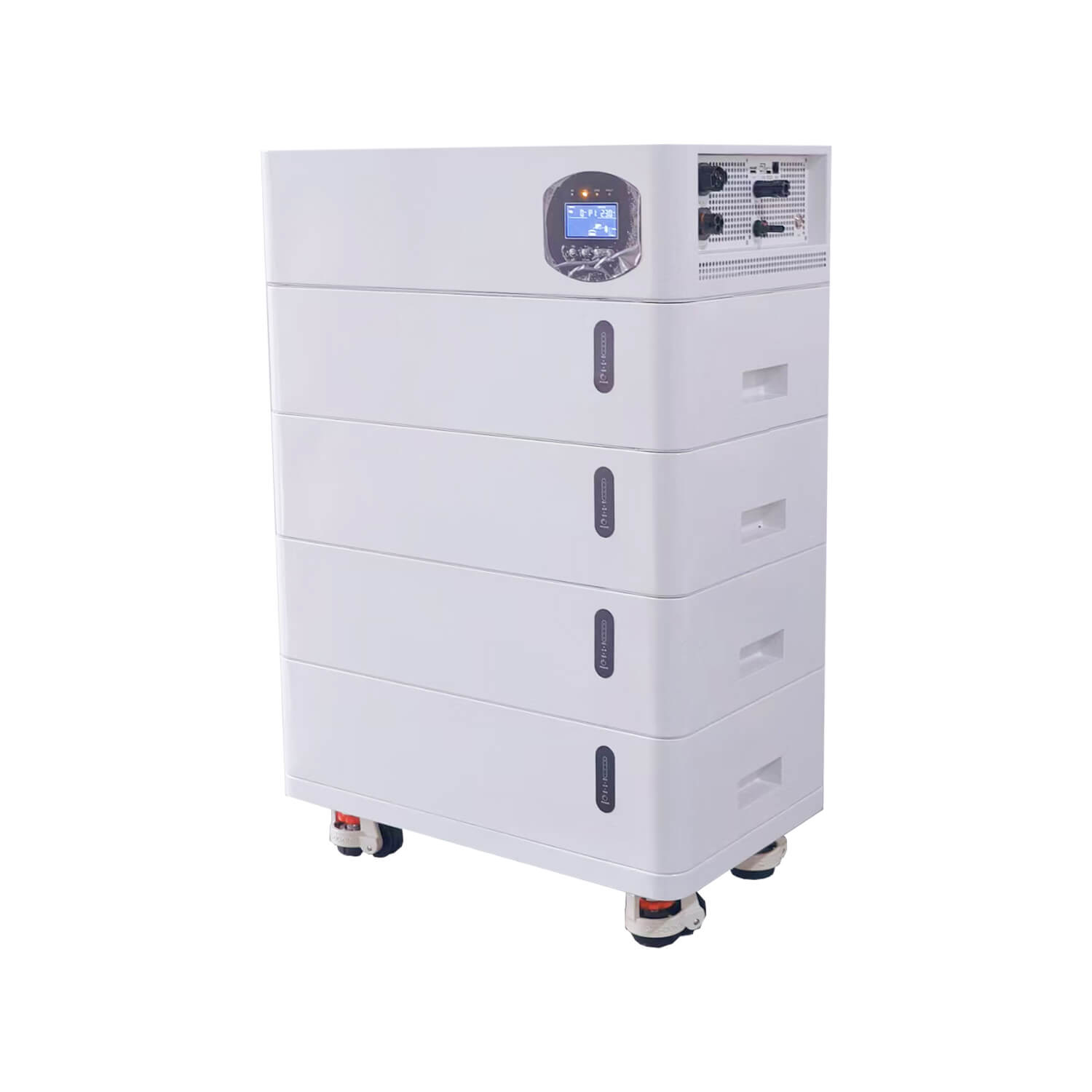

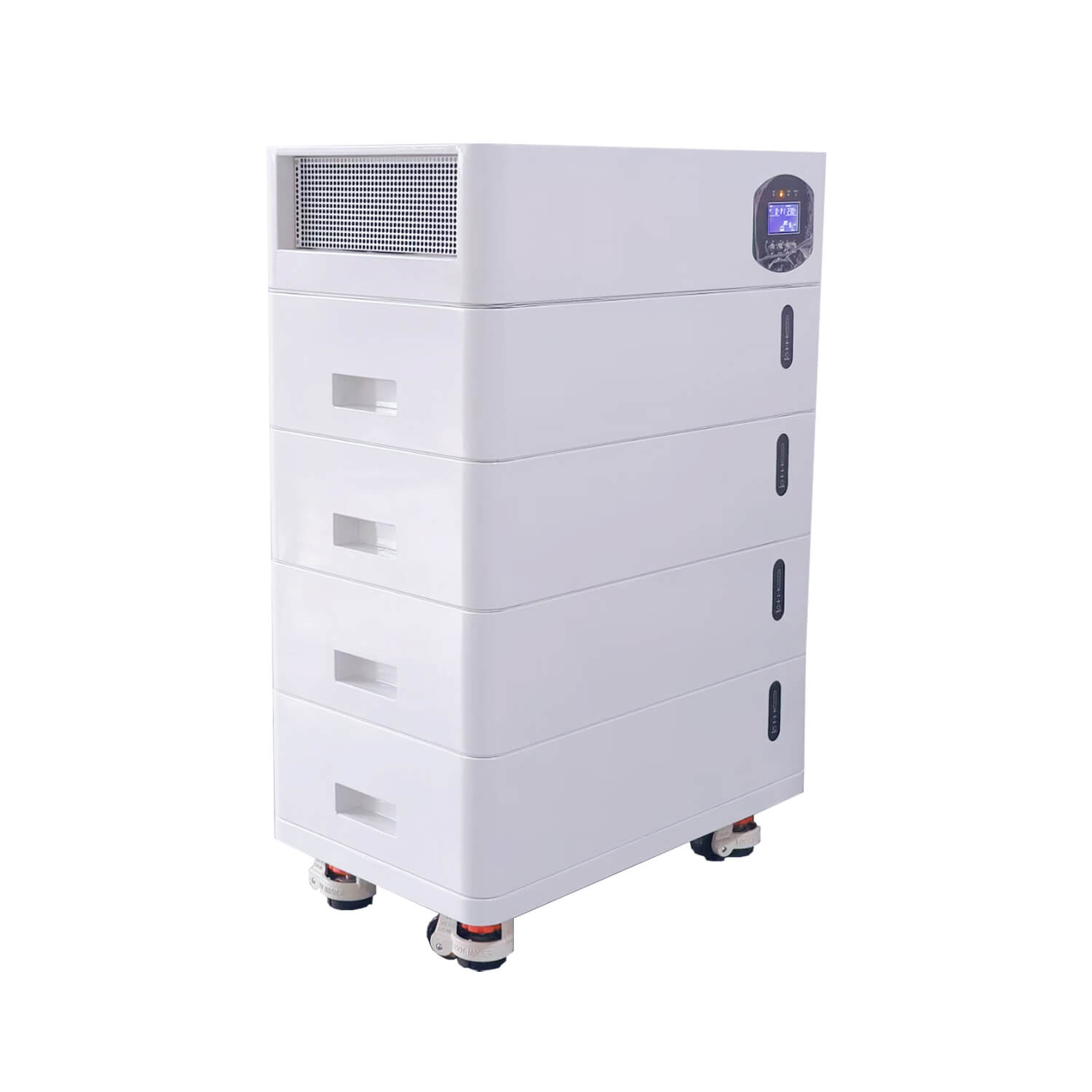

Polinovel ONE Series is an all-in-one energy storage solution that integrates 48V lithium battery modules and a 5KW inverter, available in 5kWh, 10kWh, and 15kWh, and can be easily expanded with a modular design. It provides a reliable and uninterrupted power supply to ensure your home stays powered up even during blackouts. Whether you need it for emergency backup power or to offset expensive peak electricity bills, the ONE Series is an excellent energy storage solution.

ONE Series

High-performance LiFePO4 Solar Battery

This 48V ONE Series lithium battery uses proven LiFePO4 chemistry to ensure safe operation and long life. The battery also comes equipped with 15 advanced protections that ensure a reliable and stable energy to keep your home powered.

All-in-one Battery Storage Solution

This ONE Series energy storage solution incorporates a 5KW solar inverter and 48V lithium battery packs, reducing the matching process and installation time, which is a one-stop solution for providing an efficient and reliable source of energy for homes.

Plug-and-play Installation

This lithium energy storage battery can be simply plugged in and used without any wiring and screwing, making the installation a breeze.

Modular and Flexible Design

The modular and stackable design allows it to be easily scaled to meet the specific energy needs of customers. It is an ideal choice for those who looking for a reliable and flexible energy storage solution.

Specification

Model	ONE5	ONE10	ONE15
Battery Module
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	200Ah	300Ah
Energy	5.12kWh	10.24kWh	15.36kWh
Charge Cut-off Voltage	58V	58V	58V
Discharge Cut-off Voltage	42V	42V	42V
Standard Charge Current	50A	50A	50A
Max. Charge Current	100A	100A	100A
Max. Constant Discharge Current	100A	100A	100A
Peak Discharge Current	200A	200A	200A
Communication	RS485/CAN	RS485/CAN	RS485/CAN
Hybrid Inverter
Power	5KW	5KW	5KW
Output Voltage	230VAC	230VAC	230VAC
Frequency	50Hz	50Hz	50Hz
Input Power (PV)	7KW	7KW	7KW
Input Voltage Range (PV)	150-500VDC	150-500VDC	150-500VDC
Communication Connect Port	RS485/CAN	RS485/CAN	RS485/CAN
System Information
Material	Metal	Metal	Metal
Dimension	4102301070 mm (16.19.142.1 in)	4102301430 mm (16.19.156.3 in)	4102301790 mm (16.19.170.5 in)
Weight	70 kg (154 lbs)	115 kg (253.5 lbs)	160 kg (352.7 lbs)
Charge Temperature	0~50 °C	0~50 °C	0~50 °C
Discharge Temperature	-15~ 60°C	-15~ 60°C	-15~ 60°C

Polinovel Lithium Battery Benefits

High Quality Battery Cells

Adopt top-grade lithium iron phosphate battery cells that offer significant advantages, including improved charging efficiency, zero maintenance and the ability to deep discharge while maintaining power.

Long Cycle Life

Polinovel lithium batteries provide reliable and adequate power for deep cycle use over a long period of time. The extended lifespan makes

the batteries an excellent choice for many applications that require long-lasting power.

Advanced Safety Features

The built-in BMS protects the battery from extreme temperatures, overcharging, over-discharging, and short circuits to ensure

durability and reliability.

Solid Product Warranty

Polinovel is a reputable LFP battery supplier

that offer a reliable warranty that covers the performance and life of the battery products, giving consumers peace of mind knowing that they can trust the quality of Polinovel lithium batteries.

Built-in BMS Protection

Over Charge/Discharge Protection

Monitors the battery voltage and ensures that it does not exceed or fall below a certain value to prevent over charge/discharge.

Temperature Protection

Monitors the temperature of each cell and protects the battery if the temperature exceeds/goes below a preset threshold.

Short Circuit Protection

Interrupts the flow of electricity to prevent any further damage after detecting a short-circuit.

Cell Balancing

Ensures all the cells are kept at the same voltage or SOC and helps to extend the life of the battery.

Polinovel Promises

High-performance Battery Solutions

Our team of experts thoroughly analyzes market needs and actively explores new technologies to create innovative lithium battery solutions. Our lithium ion battery products are manufactured using state-of-the-art technology and strict quality control measures to ensure they offer superior performance and great reliability.

Quality Assurance

As a reliable Li ion battery supplier, we offer products that meet global standards. Our lithium battery products are certified with CE, MSDS, RoHS, and UN38.3 certifications. When you opt for our products, be assured that quality and safety is our utmost concern.

Exceptional Customer Service

Our commitment is to provide excellent customer service from beginning to end. Our team has a wealth of experience and is focused on providing the most satisfying experience for our customers. We offer quick and effective service, whether it's responding to product inquires, assisting with orders, or dealing with technical issues.

On-time Delivery

As an experienced LFP battery supplier in the industry, we have an exceptional supply chain system and fast logistics. We are committed to providing efficient delivery to ensure that our customers receive their orders on time.
