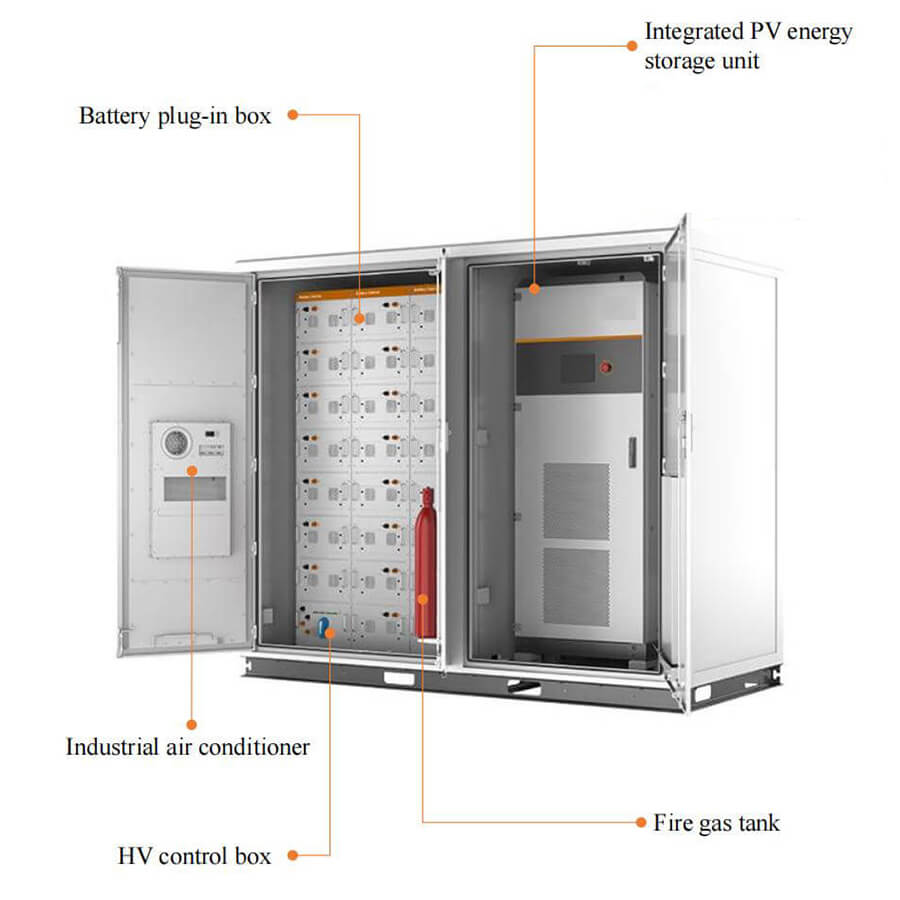

This commercial battery system uses LiFePO4 chemistry with good consistency and superior charging & discharging performance, providing reliable and sustainable energy solutions for various industrial and commercial applications. It integrates an energy storage converter and a PV converter, allowing for efficient generation of electricity using PV.
The system can be directly connected to photovoltaic solar panels to prioritise battery charging, as well as convert the photovoltaic current output into power that is usable in the power grid, leading to improved economic benefits.
Model | CBS100 |
Power | 50KW |
Energy | 126KWh |
Battery | 448V280Ah (140S1P) |
Charging and Discharging Rate | 0.4C |
DC-side Voltage Range | 392V~511V |
Maximum AC Output Capacity | AC400V-80A |
Photovoltaic Input Range | 520-800VDC |
IP Degree | IP54 |
Communication | RS485/CAN2.0 |
User Interface | 7'' display |
Cooling Mode | Forced Air Cooling |
Fire Protection | Heptafluoropropane |
Altitude | ≤3000 m |
Cycle Life | ≥6000 cycles (EOL 70%) |
Dimension | 1700*1300*2400mm / 67*51.2*94.5in |
Weight | 2200kg / 4850lbs |
Certification | UL 1973, IEC 62619, UN 38.3, UL 9540A, GB/T 36276 |
Ambient Temperature/Humidity | -20℃~50℃ / 5%~95% |
