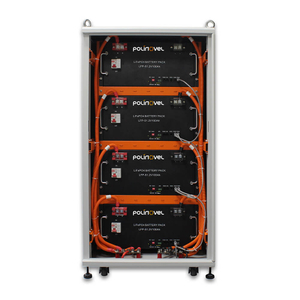

48V LiFePO4 Energy Storage Battery RACK Series

Nominal Voltage

51.2V

51.2V

51.2V

51.2V

Nominal Capacity

50Ah

100Ah

150Ah

200Ah

Energy

2.56kWh

5.12kWh

7.68kWh

10.24kWh

Charge Cut-off Voltage

58.4V

58.4V

58.4V

58.4V

Discharge Cut-off Voltage

40V

40V

40V

40V

Max. Charge Current

50A

100A

100A

100A

Max. Constant Discharge Current

50A

100A

150A

200A

Peak Current

100A

200A

200A

300A

Max. Modules in Parallel

15pcs in parallel

15pcs in parallel

15pcs in parallel

15pcs in parallel

Communication

RS485/RS232/CAN

RS485/RS232/CAN

RS485/RS232/CAN

RS485/RS232/CAN

Dimension

442*450*133 mm (17.4*17.7*5.2 in)

442*510*155 mm (17.4*20.1*6.1 in)

442*400*311 mm (17.4*15.7*12.2 in)

442*680*223 mm (17.4*26.8*8.8 in)

Weight

29 kg (64 lbs)

49.5 kg (109 lbs)

76 kg (168 lbs)

100kg (220.5 lbs)

Charge Temperature

0~50 °C

0~50 °C

0~50 °C

0~50 °C

Discharge Temperature

-15~ 60°C

-15~ 60°C

-15~ 60°C

-15~ 60°C
