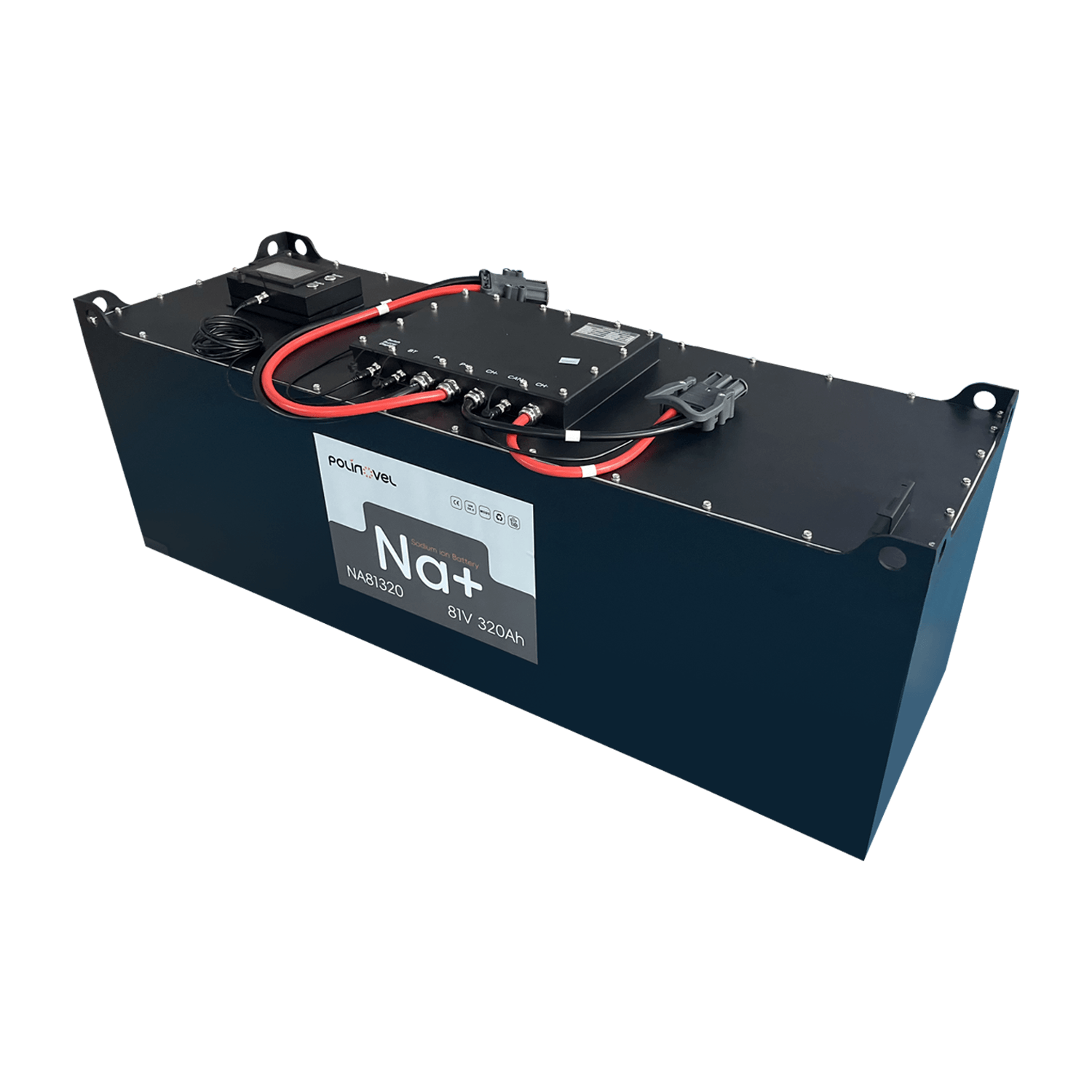

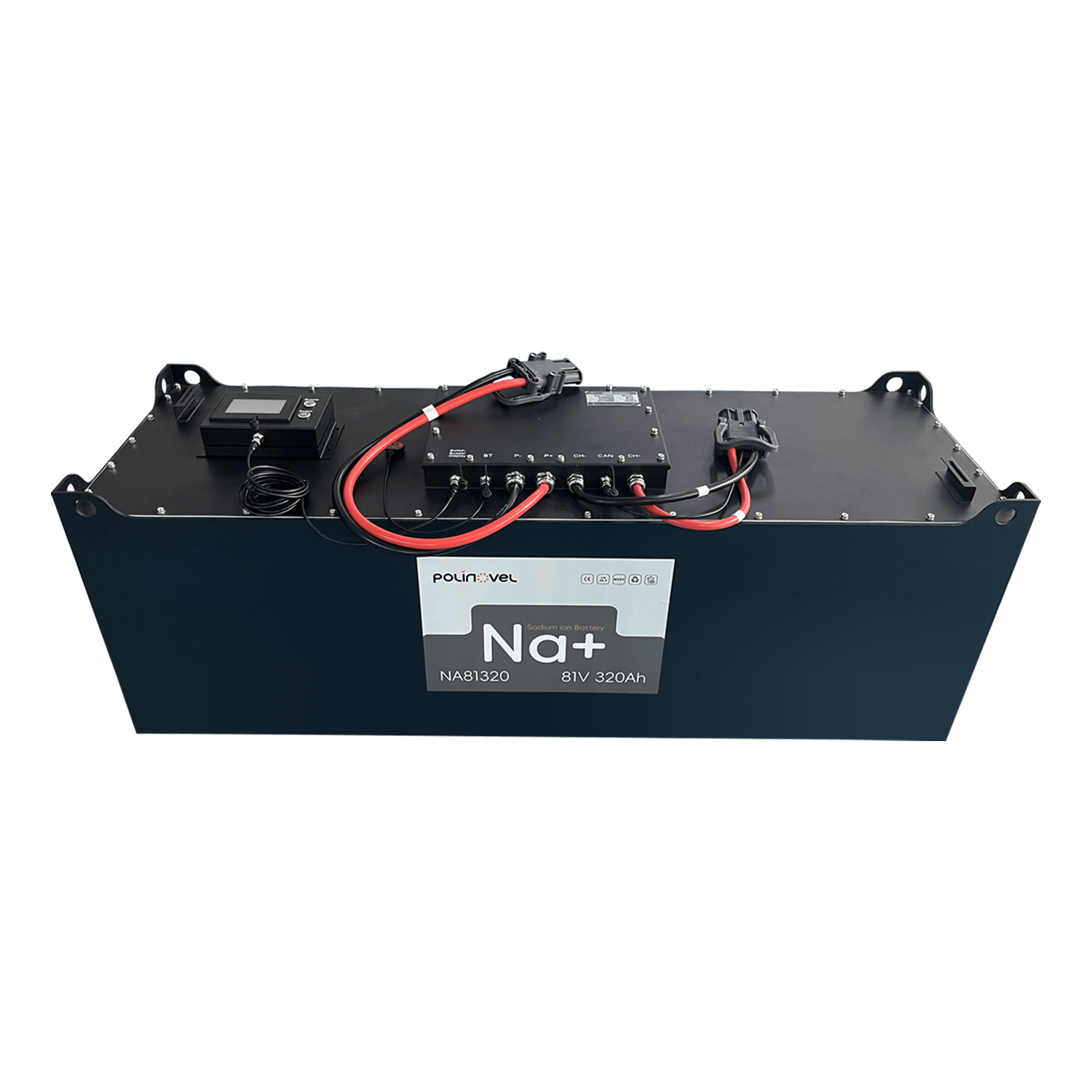

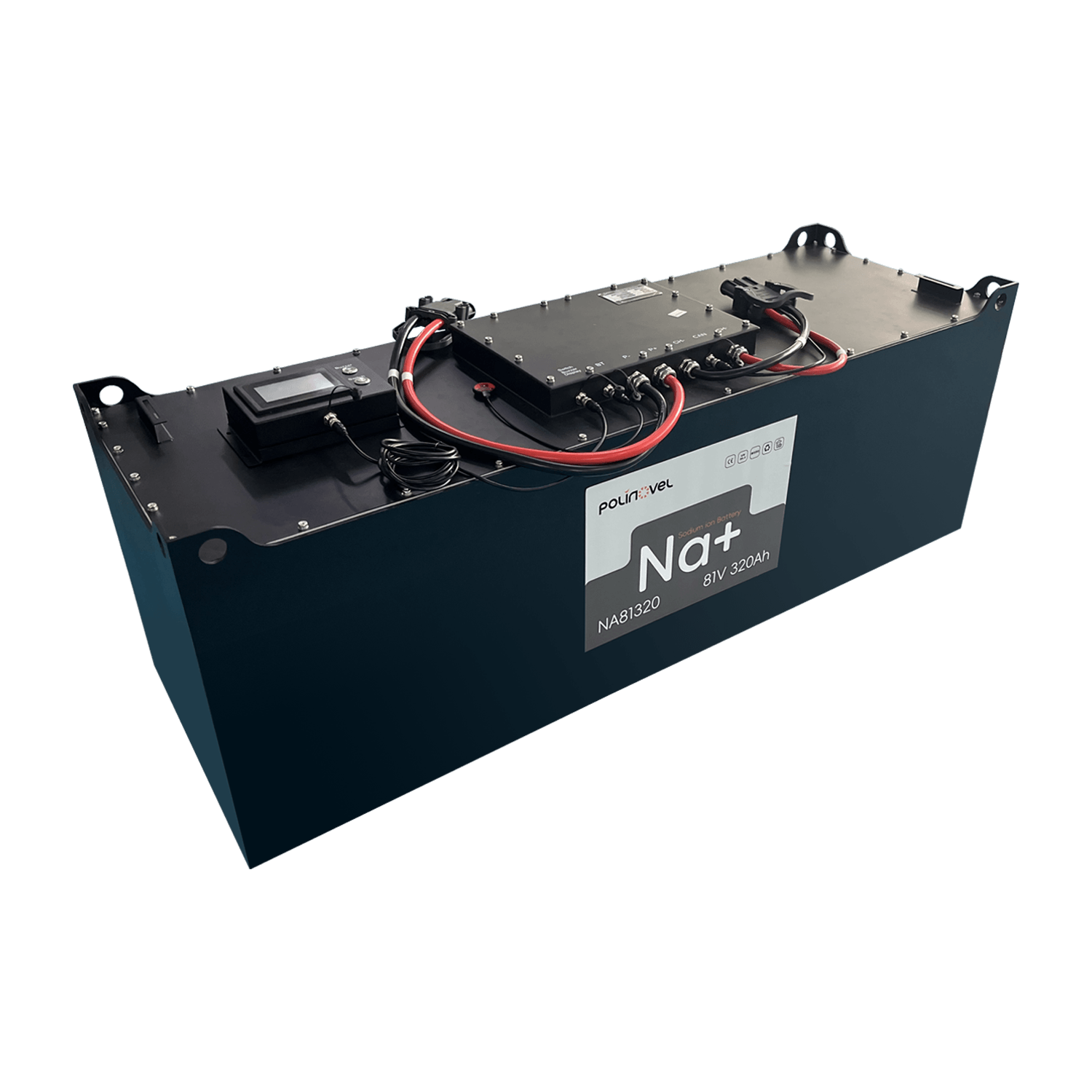

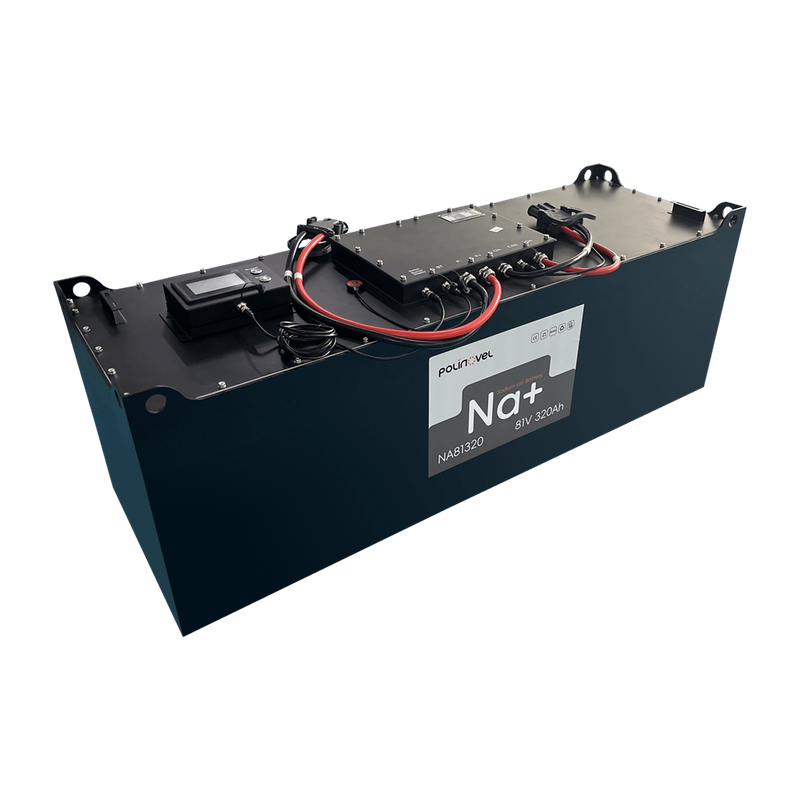

The Polinovel 81V 320Ah sodium-ion forklift battery provides a reliable and efficient power solution for electric forklifts. With 25.98kWh of nominal energy, high-current discharge capability and wide temperature acceptability, it is designed for demanding material handling operations in warehouses, manufacturing facilities and cold storage environments.
Sodium-ion technology offers excellent safety, long cycle life and stable performance, making it a cost-effective and sustainable choice for industrial applications.
Capacity, energy and power each play a different role.
Indicates the battery's electrical charge capacity.
Represents the nominal amount of energy available from the battery.
Choosing a forklift battery requires more than matching the voltage.
The 320Ah model provides 25.98kWh of nominal energy. Required charge capacity and energy consumption should be evaluated against the forklift's actual duty cycle.
With 300A continuous and 600A peak discharge for 30 seconds, the battery should be matched to the traction and lifting power requirements of the equipment.
The standard dimensions are 1520 × 500 × 530 mm. Available installation space should be confirmed before ordering.
The rated battery weight is 400kg without counterweight. The required installed weight and counterweight balance should be checked against the forklift specification.
Specification
Model | NA81320 |
Nominal Voltage | 81.2V |
Nominal Capacity | 320Ah |
Energy | 25984Wh |
Charge Voltage | 100V |
Discharge Cut-off Voltage | 56V |
Charge Current | ≤320A |
Constant Discharge Current | 300A |
Peak Discharge Current | 600A @30s |
Dimension | 1520*500*530 mm (59.8*19.7*20.9 in) |
Weight | 400kg / 882lbs (without counterweight) |
Cycle Life @DOD100% | ≥2000 cycles |
Charge Temperature | -10~55ºC |
Discharge Temperature | -40~60ºC |
Storage Temperature | -10~35ºC |
The 81V 320Ah sodium-ion battery is suitable for various material handling applications.
For compatible 80V-class electric forklifts where battery voltage, current capability, dimensions, and required energy capacity match the equipment.
Supports regular lifting, transport, loading, and material-handling workflows in warehouses and production facilities.
The wide specified discharge temperature range supports compatible material-handling equipment operating in cold-storage and low-temperature environments.
How much energy does an 81V 320Ah forklift battery provide?
The Polinovel 81.2V 320Ah sodium-ion forklift battery provides 25.98kWh of nominal energy.
Is 320Ah enough for my electric forklift?
It depends on the forklift's operating hours, energy consumption, load profile, battery compartment, required battery weight, and charging strategy. Ah alone should not be used to determine compatibility.
Does the 320Ah model provide less discharge current than the 420Ah model?
According to the current specifications, both models support 300A continuous discharge and 600A peak discharge for 30 seconds. Their main difference is nominal energy capacity and physical configuration.
Can the 81V 320Ah battery operate in cold storage?
Its specified discharge temperature range is -40°C to 60°C, with charging specified from -10°C to 55°C. Actual suitability should be confirmed according to the complete forklift and charging system.
Can Polinovel customize the battery for my forklift?
Battery configuration can be reviewed according to forklift voltage, capacity requirement, compartment dimensions, required weight, connectors, charger parameters, and communication requirements.
