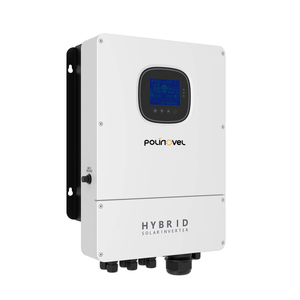

Split Phase Pure Sine Wave Solar Inverter SPI Series

  • Dual MPPT with up to 99.9% efficiency;
  • Up to 22A PV input current perfect for high-power modules;
  • SPWM technology ensures high quality pure sine wave AC power output;
  • Up to 10KW of load power to meet the needs of most households;
  • Exclusive lithium battery BMS dual activation function, which can be triggered by mains or PV;
  • Support split-phase and single-phase pure sine wave output;
  • Support four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase;
  • Time-slot charging and discharging setting function to save electricity bills;
  • 4 charging modes: Solar Only, Mains Priority, Solar Priority, and Solar&Mains Charging;
  • 2 output modes: mains bypass and inverter output for uninterrupted power supply;
  • Power saving mode to reduce no-load loss;
  • LCD screen with dynamic flow diagram design to check system data and operation status;
  • Complete short circuit protection, over current protection, over-voltage and under-voltage protection, overload protection, etc.
Availability:

Model

SPI-8K-U

SPI-10K-U

INVERTER

Rated Output Power

8000W

10000W

Max.Peak Power

16000W

20000W

Rated Output Voltage

120/240Vac(L1/L2/N/PE split phase)

Load Capacity of Motors

5HP

6HP

Rated AC Frequency

50/60Hz

Waveform

Pure Sine Wave

Switch Time

10ms(typical)

Parallel Capacity

/

BATTERY

Rated Battery Voltage

48Vdc

Voltage Range

40~60Vdc

Max.MPPT Charging Current

200A

Max.Mains/Generator Charging

100A

120A

Max.Hybrid Charging Current

180A

200A

PV INPUT

Num. of MPPT Trackers

2

Max.PV Array Power

11000W

Max.Input Current

22/22A

Max.Voltage of Open Circuit

500Vdc

MPPT Voltage Range

125~425Vdc

UTILITY/ GENERATOR INPUT

Input Voltage Range

90~140Vac

Frequency Range

50/60Hz

Bypass Overload Current

63A

EFFICIENCY

MPPT Tracking Efficiency

99.90%

Max. Battery Inverter Efficiency

92%

GENERAL INFORMATION

Dimensions

620*435*130 mm (24.4*17.1*5.1 in)

Weight

20 kg (44 lbs)

21 kg (46 lbs)

Protection Degree

IP20,Indoor Only

Operating Temperature Range

-10~55℃,>45℃ derated

Humidity

-25°C ~ 60°C

Cooling Method

Internal Fan

Warranty

2 Years

COMMUNICATION

Embedded Interfaces

RS485/CAN/USB/ Dry contact

External Modules(Optional)

Wi-Fi / GPRS

CERITIFACATION

Safety

IEC62109-1, IEC62109-2,UL1741

RoHs

Yes

EMC

EN61000-6-1, EN61000-6-3, FCC 15 class B
