193–261kWh Liquid-Cooled C&I Energy Storage System

193–261kWh flexible capacity
30–125kW hybrid power options
Liquid cooling for stable operation
RS485 / CAN / 4G communication
LFP battery cells with long cycle life
Supports on-grid and off-grid deployment


Availability:



Inquiry Now

Product Description

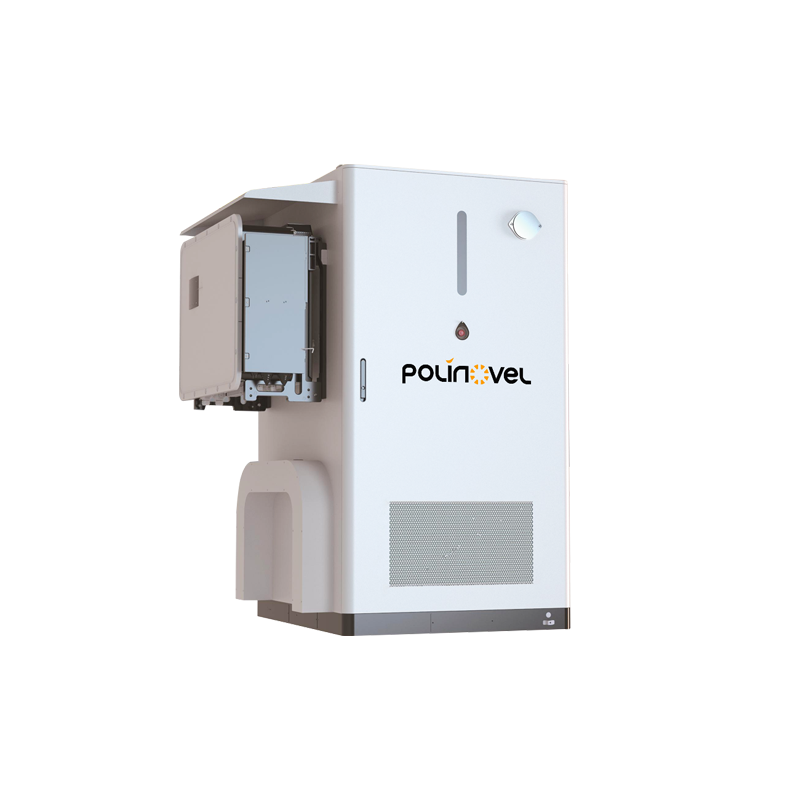

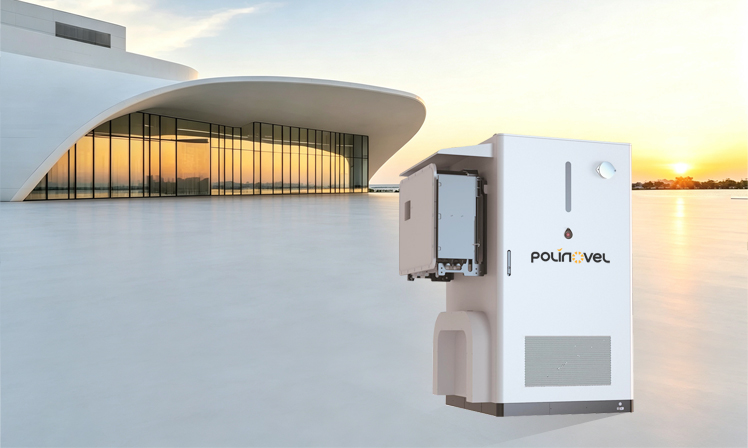

193–261kWh Liquid-Cooled C&I Energy Storage System

Polinovel’s C&I energy storage system combines 193–261kWh LFP battery capacity with flexible 30–125kW hybrid power options. Designed for commercial and industrial energy storage projects, this liquid-cooled system supports grid-connected and off-grid configurations, multiple operating modes, and scalable AC/DC expansion.

Why Choose This C&I Energy Storage System?

Liquid-Cooled Thermal Management

Use module-level liquid cooling to help manage battery temperature during repeated charging and discharging.

Flexible Hybrid Configuration

Match 30–125kW PCS power with different battery capacities and site load requirements.

Modular System Expansion

The modular architecture supports scalable AC and DC expansion for changing project requirements.

Multiple Operating Modes

Self-consumption, peak shifting, forced charging, and forced discharging support different commercial energy strategies.

Specification

Model	CBS193	CBS209	CBS241	CBS261
DC Battery Parameters
Rated Voltage	614V	666V	768V	832V
Voltage Range	538-682V	582-738V	672-852V	728-923V
Energy	193kWh	209kWh	241kWh	261kWh
Battery Type	LFP
Battery Energy	314Ah
Battery Life Cycle	6,000 Cycles (0.5C, 5%–95%DOD, 80%SOH)
Battery Standard Charge/Discharge Rate	0.5C
Battery Pack Series And Parallel	1P48S×4	1P52S×4	1P48S×5	1P52S×5
Module Cooling Method	Liquid Cooling
PCS Parameters
Optional PCS	30–125KW Hybrid Inverter (Wall-Mounted)
PCS Power	30–125KW
Maximum Current	160A
Maximum Efficiency	98.50%
System Parameters
Energy Cycle Efficiency	≥90%
Protection Level	IP55
Corrosion Resistance Level	C3 is the default, C4/C5 are optional
Fire Fighting	Aerosol/Perfluorohexanone (Optional)
Altitude	3000m (Derating Applies Over 2000m)
Relative Humidity	0–95% (Non-condensing)
Ambient Temperature	-20°C~+50°C
Communications	4G/CAN/RS485
Dimensions (W×D×H)	106514132149mm
Weight	2100kg	2170kg	2350kg	2500kg
Warranty	5 years

Multiple Operating Modes for Commercial Battery Storage

Self-Consumption

Store available energy and use it later to increase on-site energy utilization.

Peak Shifting

Charge during lower-demand periods and discharge when site demand increases.

Forced Charging

Schedule battery charging according to the project's operating strategy.

Forced Discharging

Discharge stored energy according to predefined site requirements.

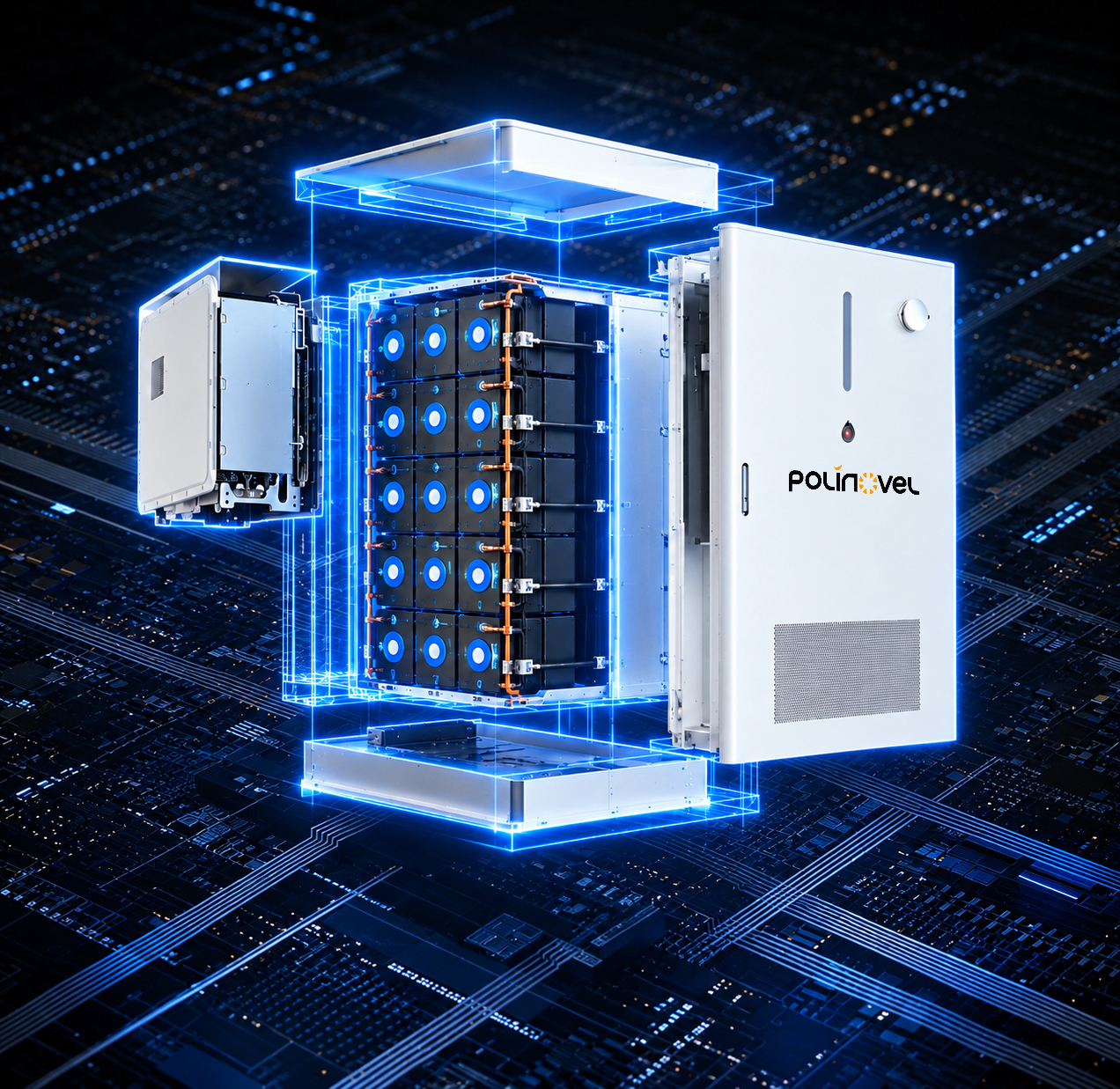

Liquid Cooling for Consistent Battery Operation

For a liquid cooled BESS, effective thermal management is important during repeated daily charge and discharge cycles.

Polinovel uses liquid cooling at battery module level to help manage operating temperature. Combined with LFP battery technology and a standard 0.5C charge/discharge rate, the system is designed for regular commercial and industrial use.

Liquid Cooling

Module-Level Thermal Management

6,000 Cycles*

Battery Cycle Life

–20°C to +50°C

Ambient Temperature

C＆I Energy Storage Applications

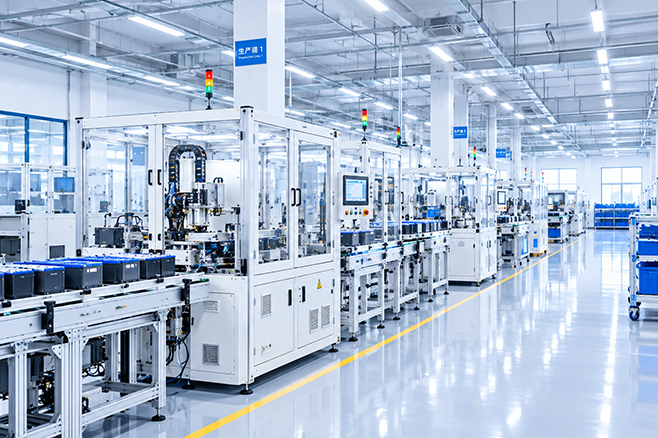

Manufacturing Facilities

Support site-level energy management for factories and production facilities with changing daily load requirements.

Commercial Buildings

Provide flexible commercial battery storage for offices, hotels, shopping centers, and other business facilities.

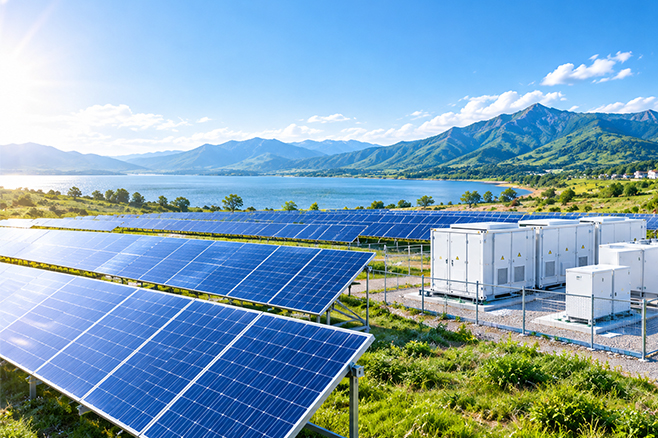

Solar + Storage

Store locally generated solar energy for later use and improve on-site renewable energy utilization.

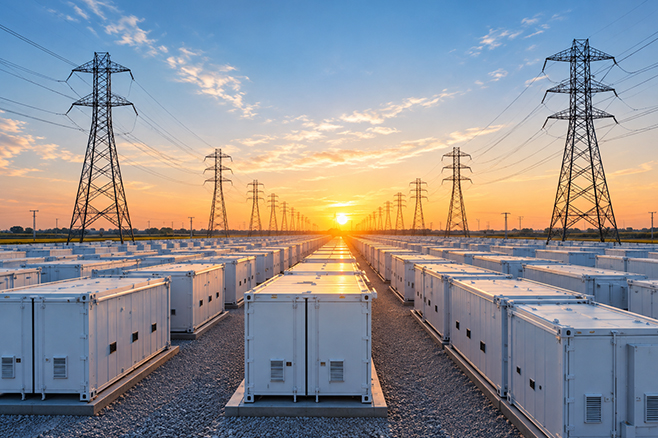

Microgrids & Off-Grid Projects

Support projects requiring grid-connected or off-grid energy storage configurations.

Polinovel Lithium Battery Benefits

High Quality Battery Cells

Adopt top-grade lithium iron phosphate battery cells that offer significant advantages, including improved charging efficiency, zero maintenance and the ability to deep discharge while maintaining power.

Long Cycle Life

Polinovel lithium batteries provide reliable and adequate power for deep cycle use over a long period of time. The extended lifespan makes

the batteries an excellent choice for many applications that require long-lasting power.

Advanced Safety Features

The built-in BMS protects the battery from extreme temperatures, overcharging, over-discharging, and short circuits to ensure

durability and reliability.

Solid Product Warranty

Polinovel is a reputable LFP battery supplier

that offer a reliable warranty that covers the performance and life of the battery products, giving consumers peace of mind knowing that they can trust the quality of Polinovel lithium batteries.

Built-in BMS Protection

Over Charge/Discharge Protection

Monitors the battery voltage and ensures that it does not exceed or fall below a certain value to prevent over charge/discharge.

Temperature Protection

Monitors the temperature of each cell and protects the battery if the temperature exceeds/goes below a preset threshold.

Short Circuit Protection

Interrupts the flow of electricity to prevent any further damage after detecting a short-circuit.

Cell Balancing

Ensures all the cells are kept at the same voltage or SOC and helps to extend the life of the battery.
