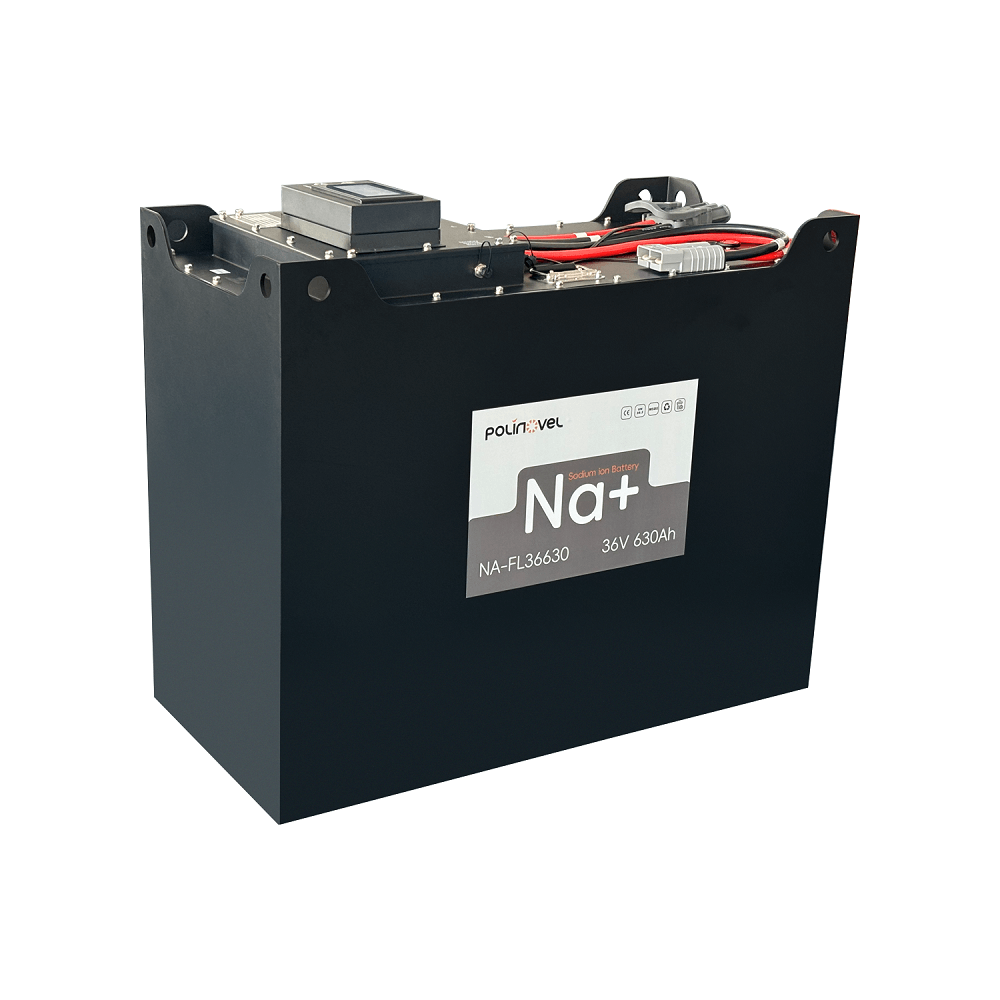

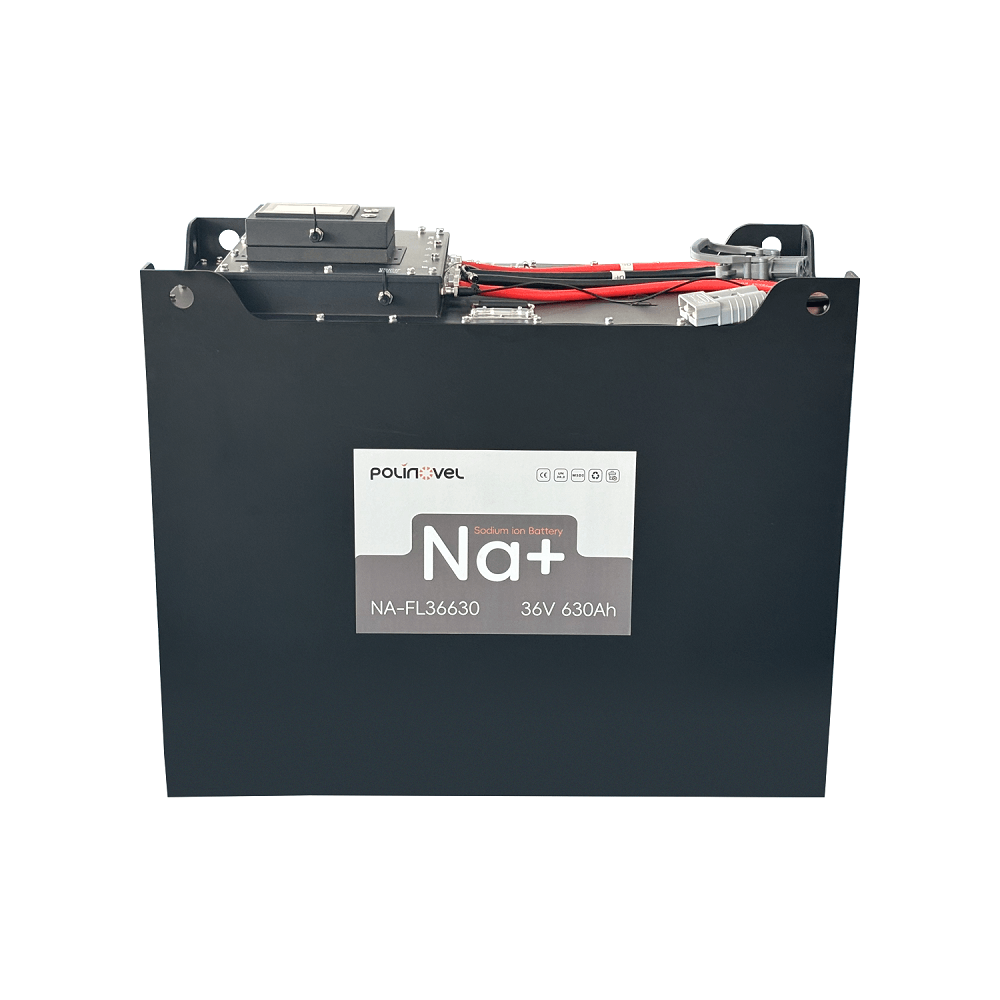

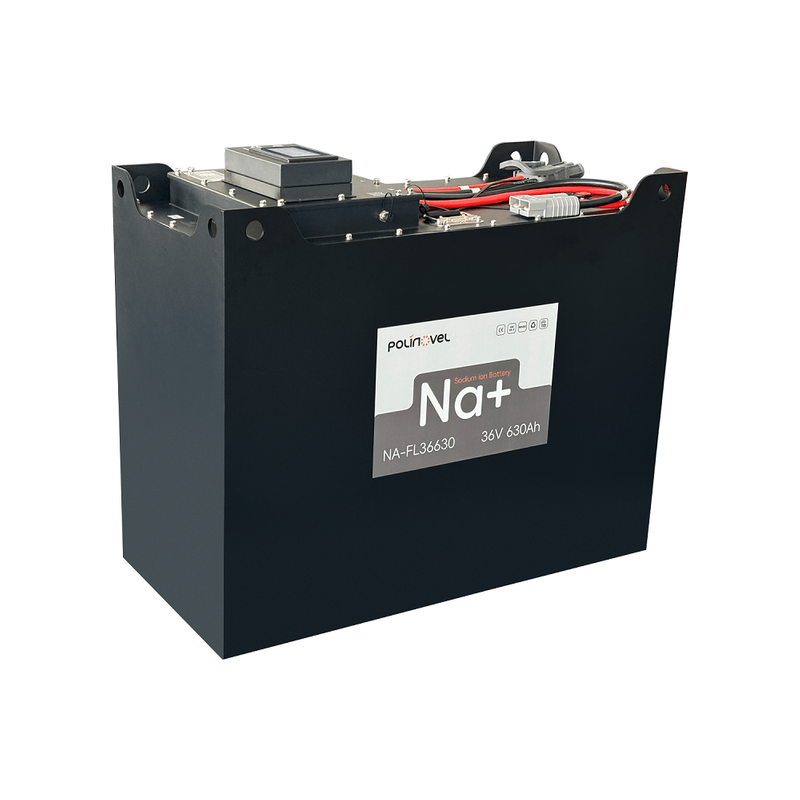

The 36V 630Ah sodium-ion forklift battery delivers 22.68kWh of nominal energy for compatible 36V material handling equipment. Its 978 × 463 × 820 mm enclosure provides an alternative configuration for forklifts with specific battery compartment height and installation requirements. With reliable traction output, wide-temperature operation, and intelligent battery monitoring, it is designed for demanding warehouse and industrial material handling applications.
1
The 820 mm-height enclosure offers an alternative configuration for forklifts with different vertical compartment requirements.
2
Supports charging current up to 315A, providing strong charge acceptance for demanding operating schedules.
3
Integrated BMS, Bluetooth, LED display, and low-SOC alarm make battery status easier to monitor during daily operation.
Specification
Model | NA-FL36630 |
Nominal Voltage | 36V（12S） |
Nominal Capacity | 630Ah |
Energy | 22680Wh |
Charge Voltage | 47.4V |
Discharge Cut-off Voltage | 18V |
Charge Current | ≤315A |
Constant Discharge Current | 350A |
Peak Discharge Current | 700A @5s |
Dimension | 978*463*820 mm (38.5*18.2*32.3 in) |
Weight | 250kg / 551lbs (without counterweight) |
Cycle Life @DOD100% | ≥2000 cycles |
Charge Temperature | -10~55ºC |
Discharge Temperature | -40~60ºC |
Storage Temperature | -10~35ºC |

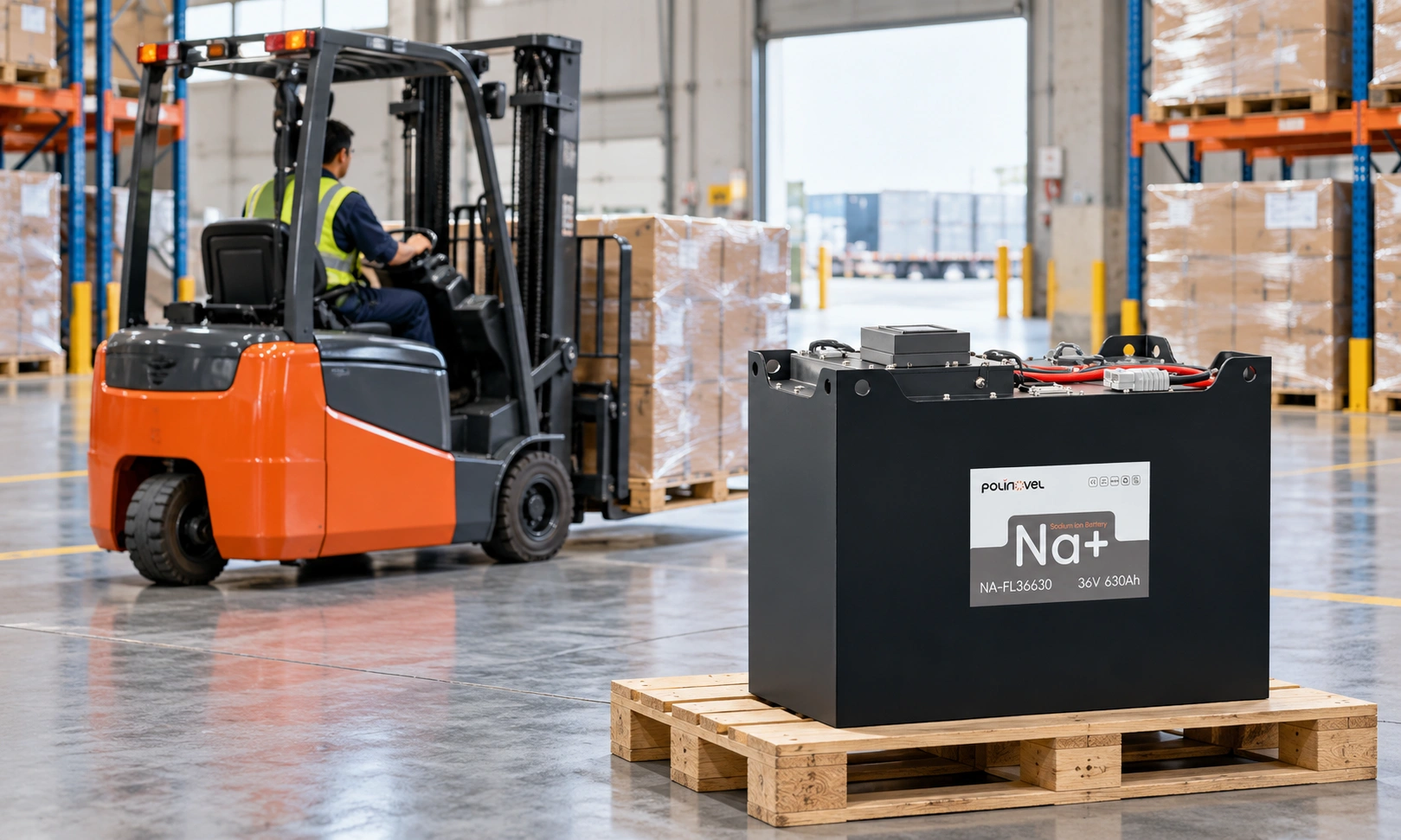

Designed for compatible 36V material handling equipment, this configuration is suited to warehouse applications where both traction performance and vertical battery compartment fit need to be considered.

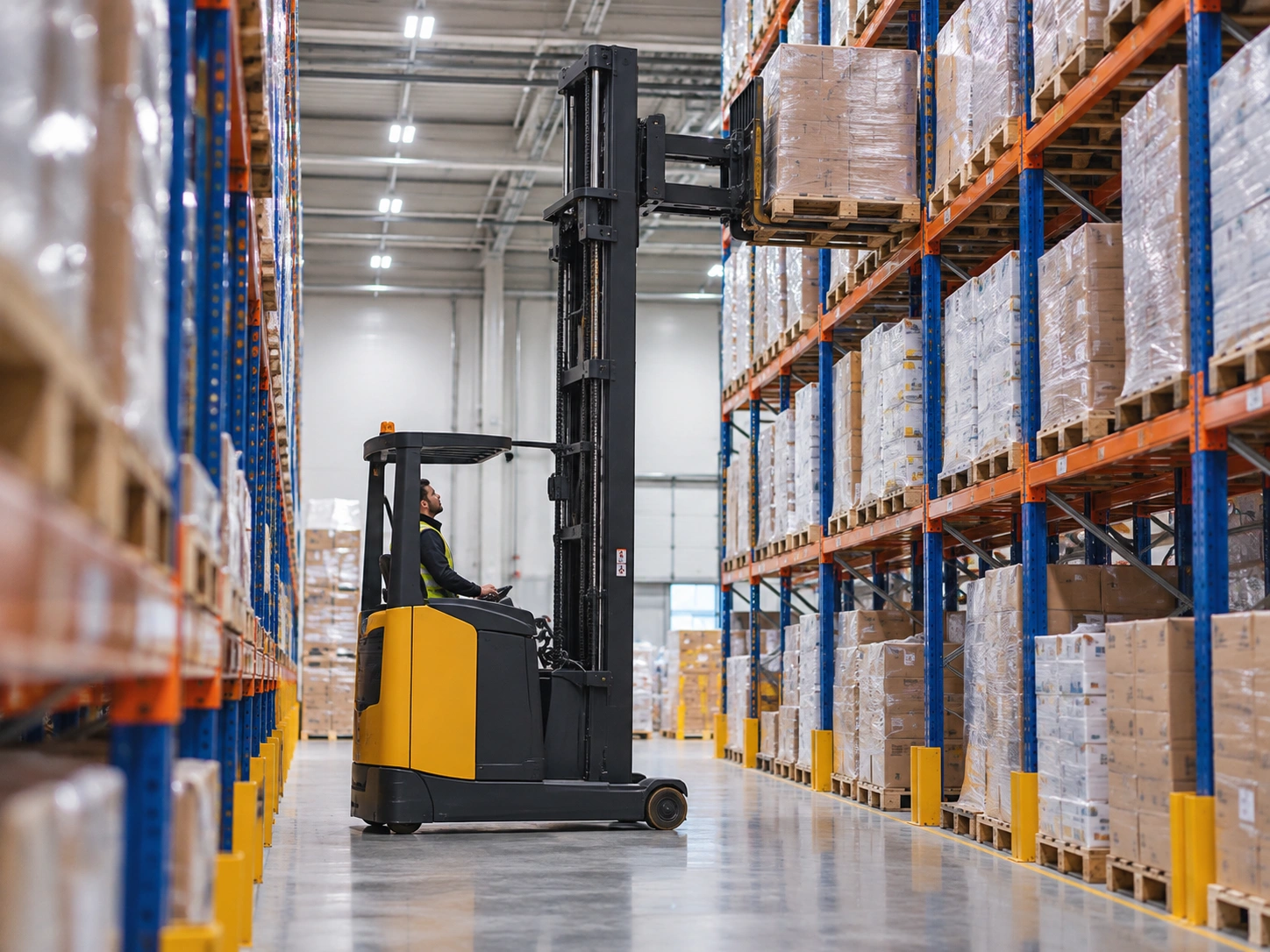

Suitable for compatible 36V reach trucks used for pallet storage, retrieval, and frequent travel in high-rack warehouse operations.

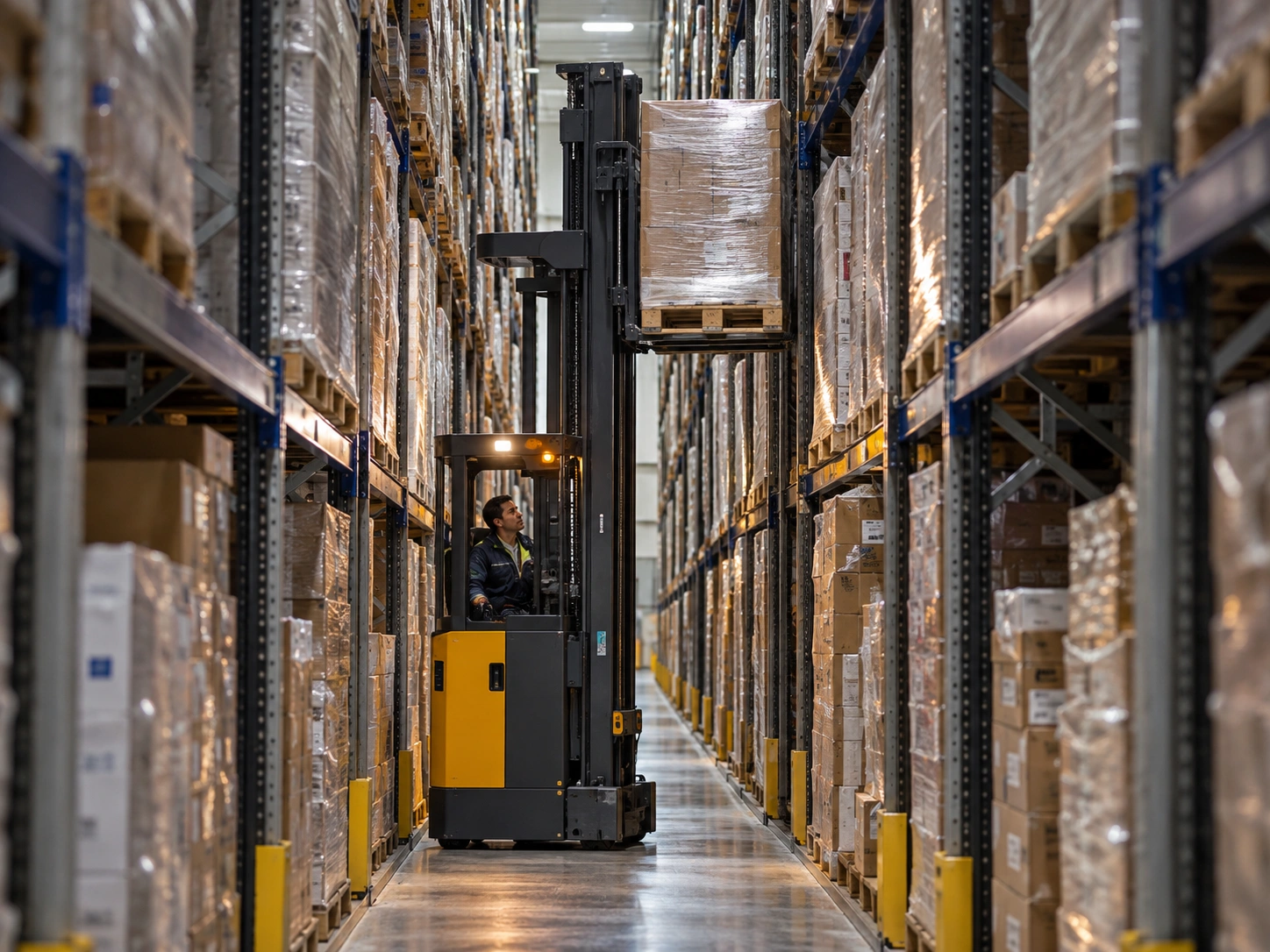

Designed for compatible 36V narrow-aisle forklifts operating in high-density warehouses with repeated lifting and travel cycles.

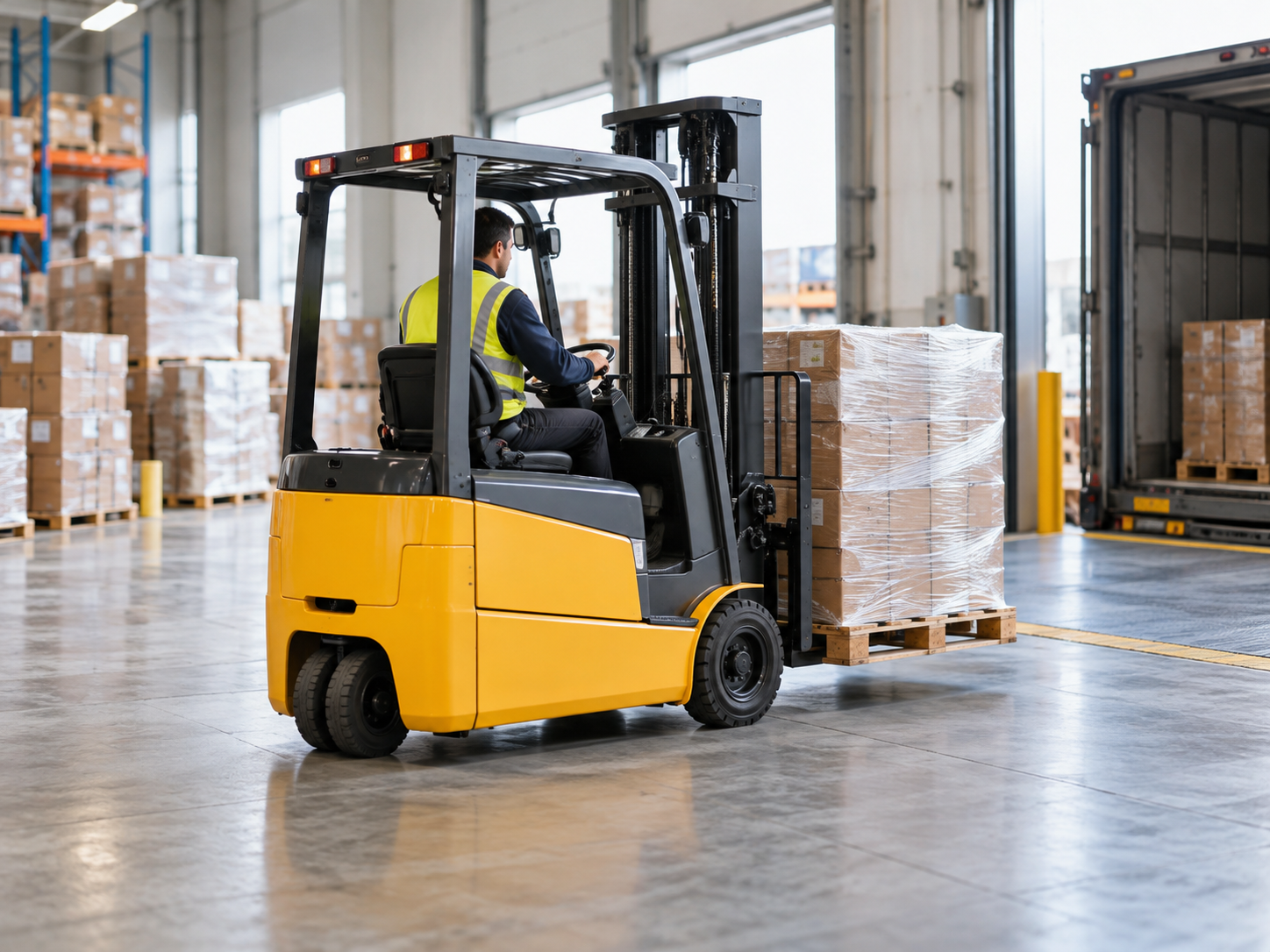

Suitable for compatible 36V 3-wheel electric forklifts used for indoor pallet handling, loading, and warehouse transport.

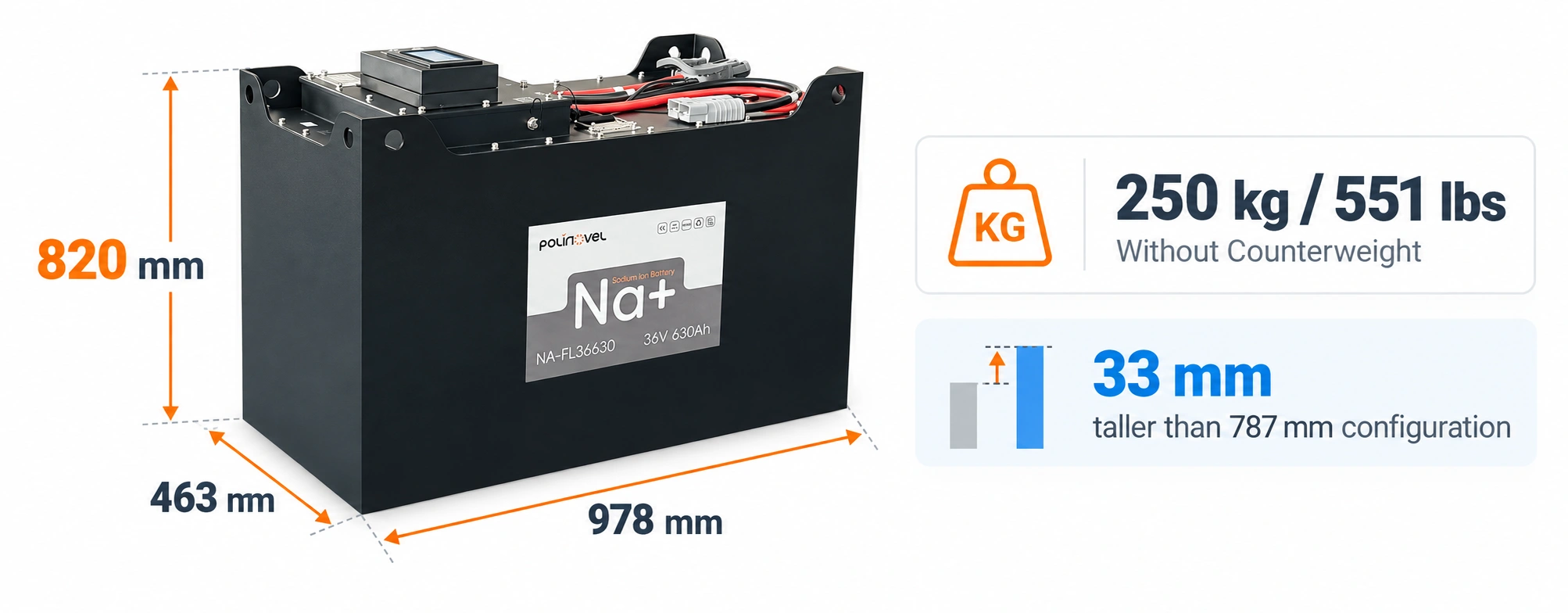

Built around an 820 mm-high enclosure, this sodium-ion battery provides an alternative fit option for compatible forklifts with different vertical battery compartment requirements. It is 33 mm taller than the 787 mm-height configurations, while maintaining the same 630Ah capacity and 22.68kWh nominal energy.
