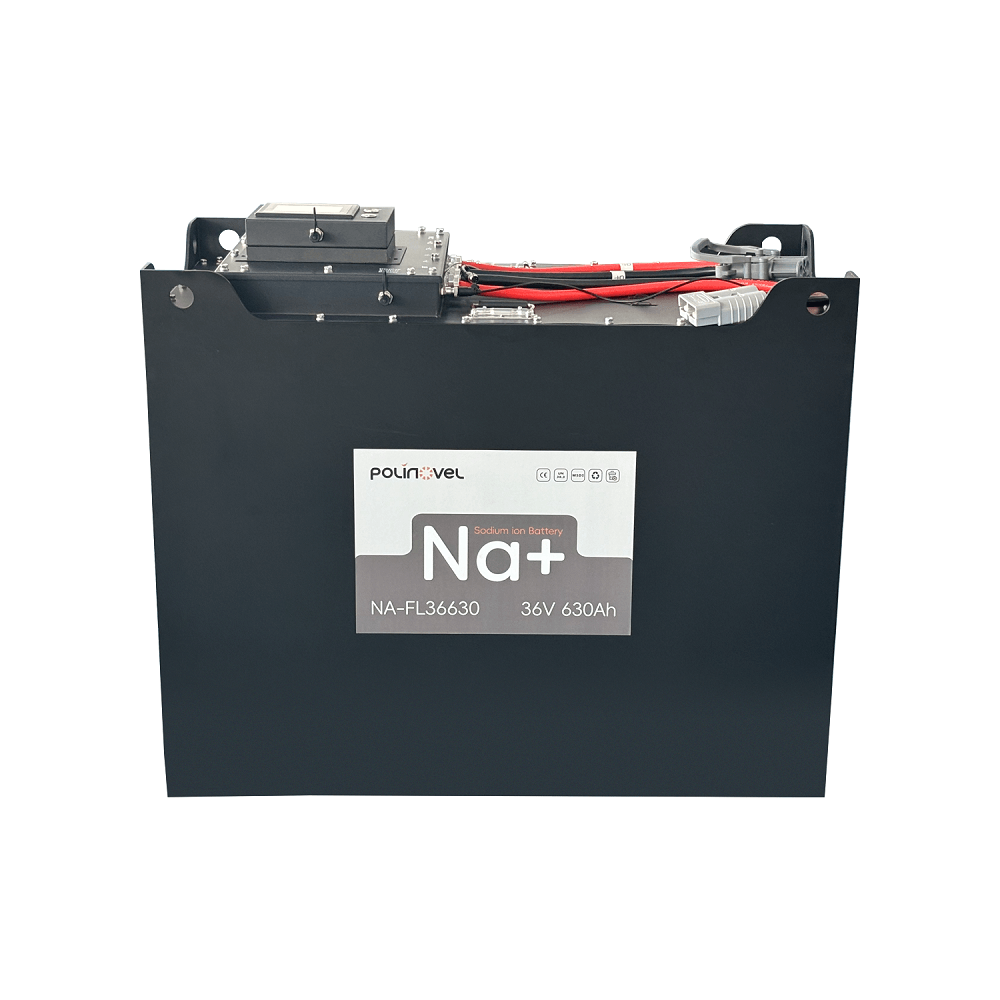

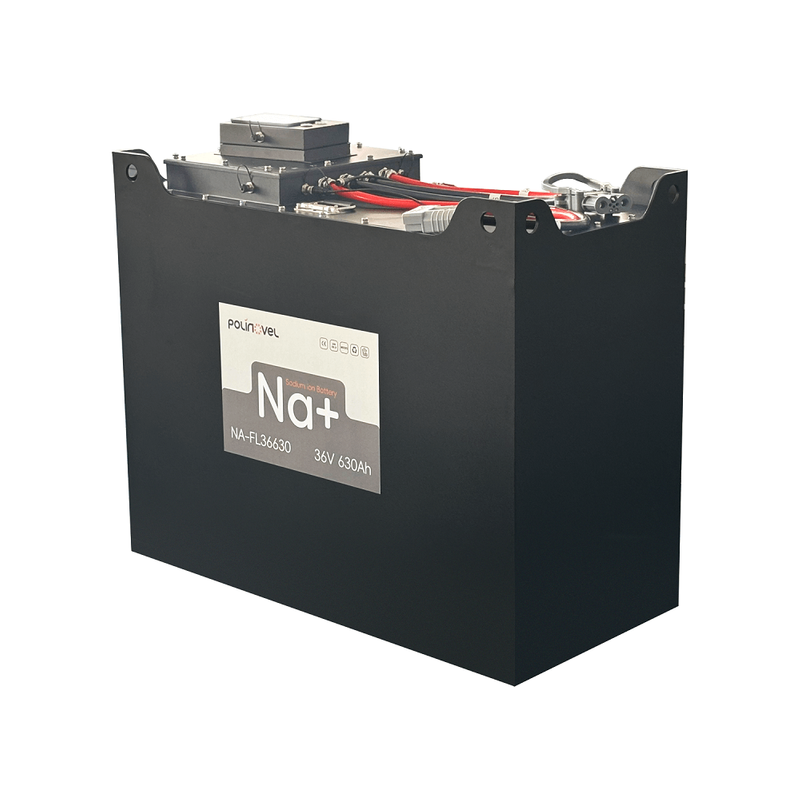

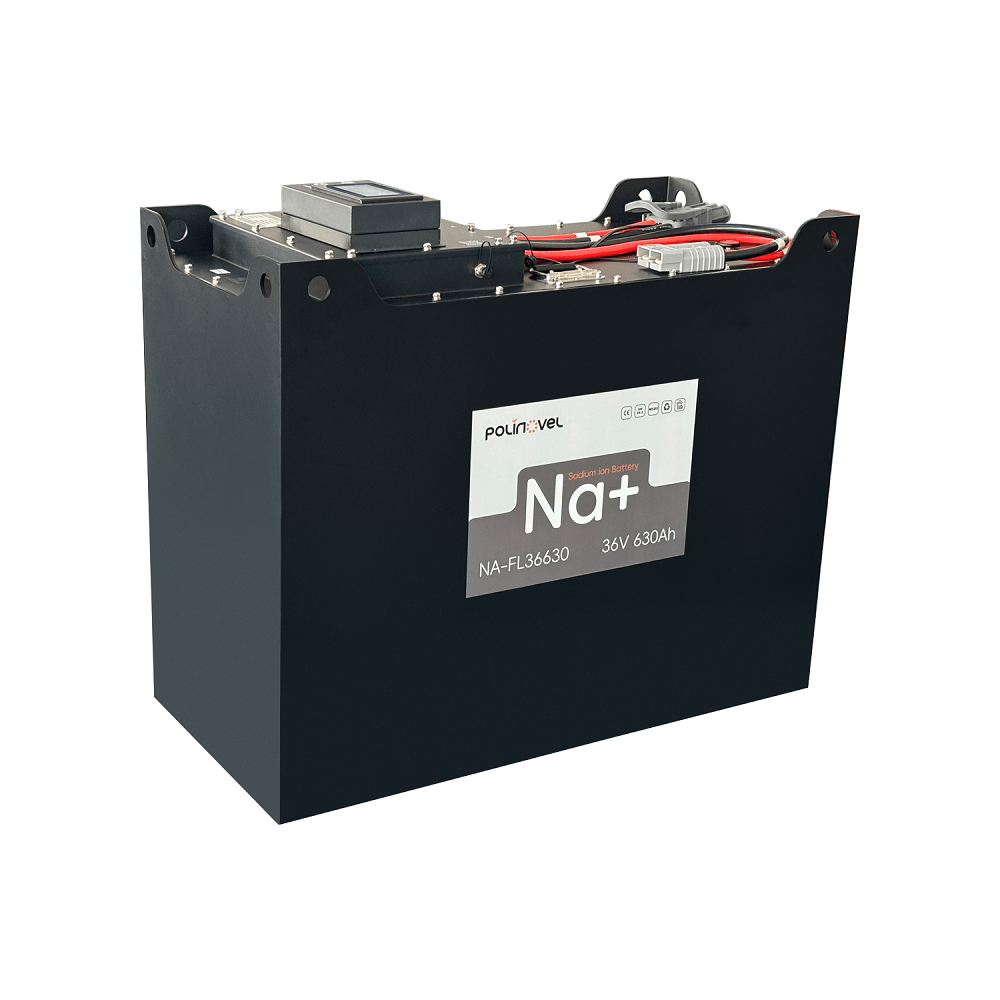

Polinovel 36V 630Ah sodium-ion battery delivers 22.68kWh of nominal energy for compatible 36V material handling equipment. Its 980 × 409 × 787 mm enclosure provides a compact 409 mm-wide configuration for forklifts with specific battery compartment requirements. With stable traction output, a wide operating temperature range, and BMS-based battery monitoring, it is designed for demanding warehouse and industrial material handling operations.
-°C
Min. Discharge Temp
°C
Max. Discharge Temp
-°C
Min. Charge Temp
°C
- Max. Charge Temp
Specification
Model | NA-FL36630 |
Nominal Voltage | 36V（12S） |
Nominal Capacity | 630Ah |
Energy | 22680Wh |
Charge Voltage | 47.4V |
Discharge Cut-off Voltage | 18V |
Charge Current | ≤315A |
Constant Discharge Current | 350A |
Peak Discharge Current | 700A @5s |
Dimension | 980*409*787 mm (38.6*16.1*31 in) |
Weight | 250kg / 551lbs (without counterweight) |
Cycle Life @DOD100% | ≥2000 cycles |
Charge Temperature | -10~55ºC |
Discharge Temperature | -40~60ºC |
Storage Temperature | -10~35ºC |
Combines ≥2,000-cycle life, up to 315A charging, stable sodium-ion chemistry, and low-maintenance operation for daily material handling.
Rated for ≥2,000 cycles at 100% DOD, supporting long-term use in frequent warehouse and industrial operations.
Supports charging current up to 315A, providing strong charge acceptance for demanding operating schedules.
Sodium-ion chemistry offers good thermal stability and helps support reliable battery operation in industrial environments.
No watering or routine electrolyte maintenance is required, helping simplify daily battery care compared with conventional lead-acid batteries.

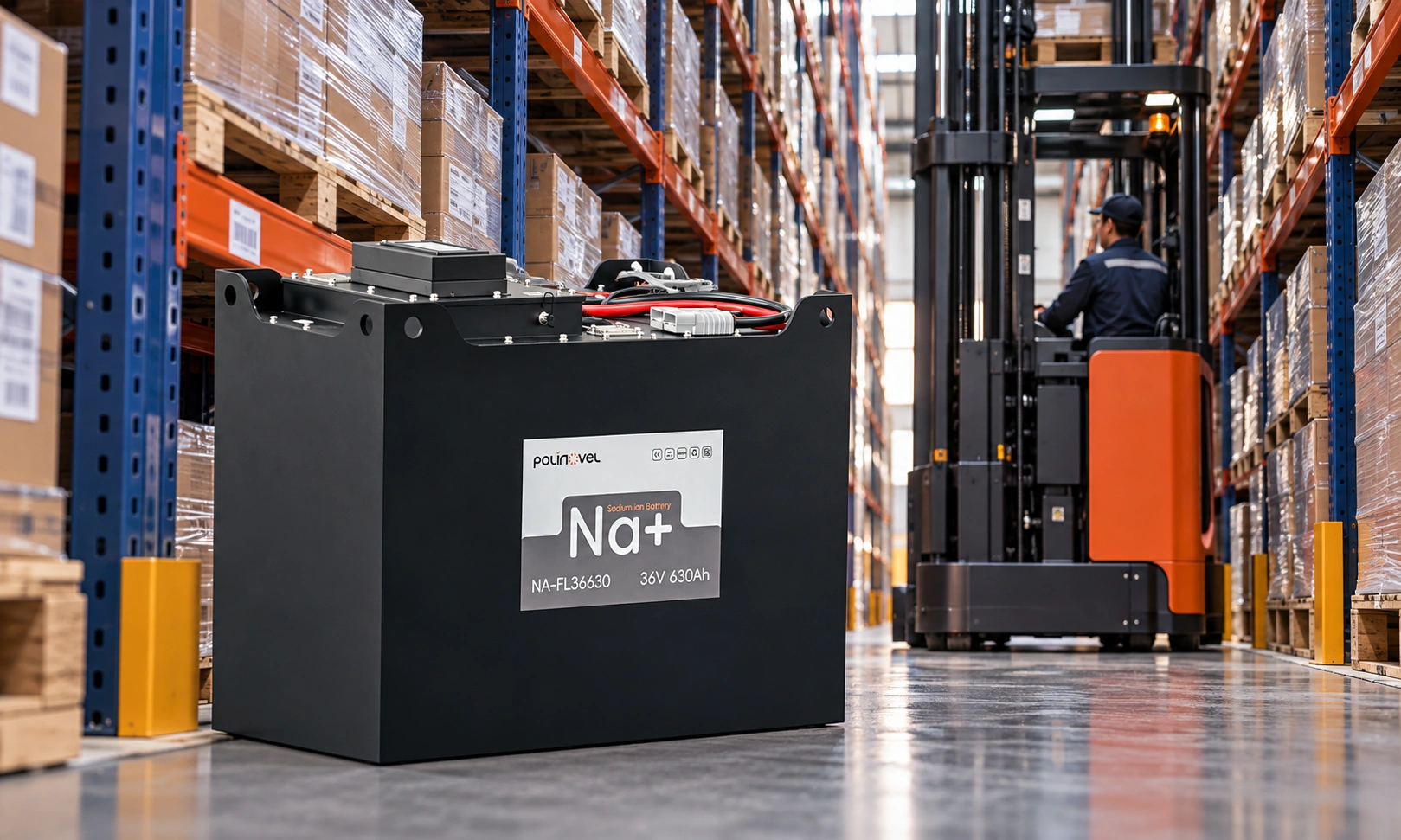

The 36V 630Ah sodium-ion forklift battery is designed for compatible warehouse and material handling equipment operating on 36V traction systems. Its 22.68kWh capacity makes it particularly relevant to narrow-aisle and warehouse applications where sustained traction power and battery fit are important.
Suitable for compatible 36V reach trucks used for pallet storage, retrieval, and frequent travel in high-rack warehouse operations.

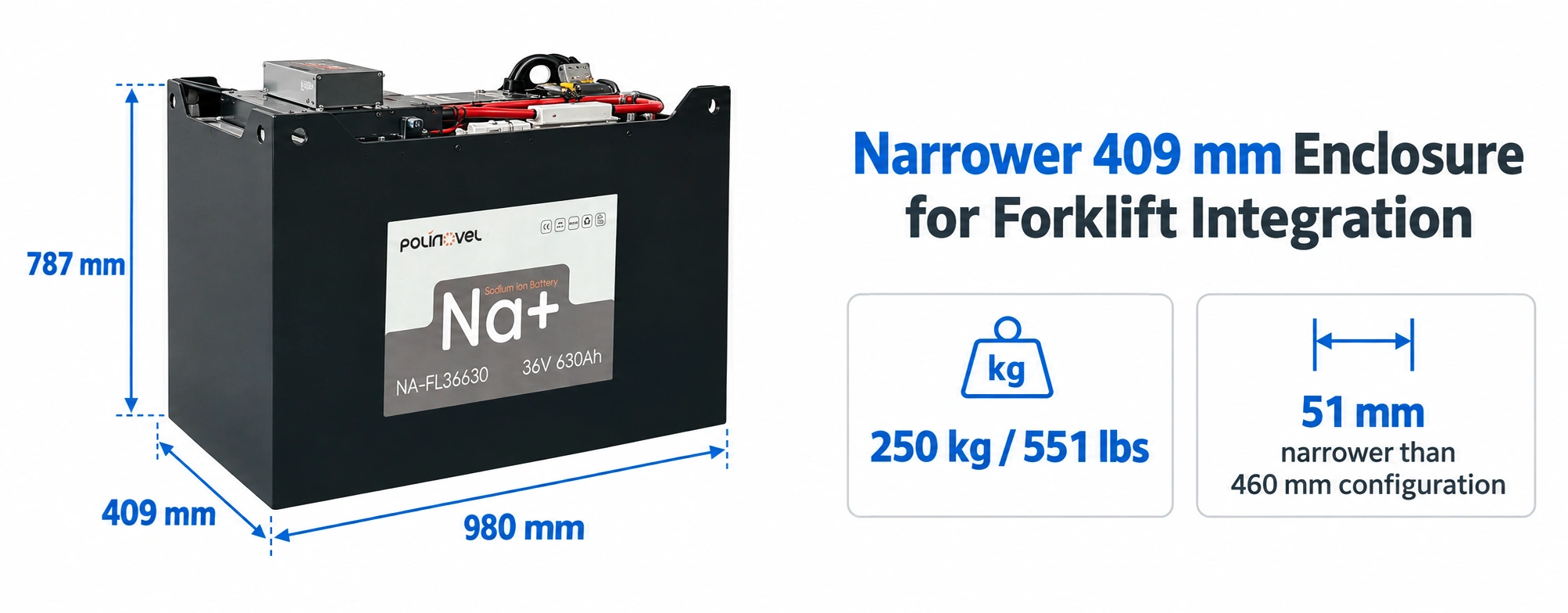

Built around a 409 mm-wide enclosure, this sodium-ion battery offers a more compact fit for compatible forklifts with limited battery compartment space. It is 51 mm narrower than the 460 mm configuration, providing more installation and cable-routing clearance while maintaining the same 630Ah capacity and 22.68kWh nominal energy. Battery weight, connector position, charger, and communication requirements can also be matched to the forklift configuration.
All three configurations use the same 36V 630Ah sodium-ion platform with 22.68kWh nominal energy, but the enclosure dimensions differ to accommodate different forklift battery compartments and installation requirements.
Configuration | Dimensions | Width | Height | Weight | Best Fit Consideration |
|---|---|---|---|---|---|
980 × 460 × 787 mm | 460 mm | 787 mm | 250 kg | For battery compartments that can accommodate a wider enclosure | |
Option B | 980 × 409 × 787 mm | 409 mm | 787 mm | 250 kg | Best when battery compartment width is more restricted |
978 × 463 × 820 mm | 463 mm | 820 mm | 250 kg | For installations where additional enclosure height is acceptable |
How to Choose the Right Enclosure
Choose the enclosure according to:
Battery compartment width and height
Required battery weight
Connector and cable clearance
Installation and removal space
Charger and communication compatibility
