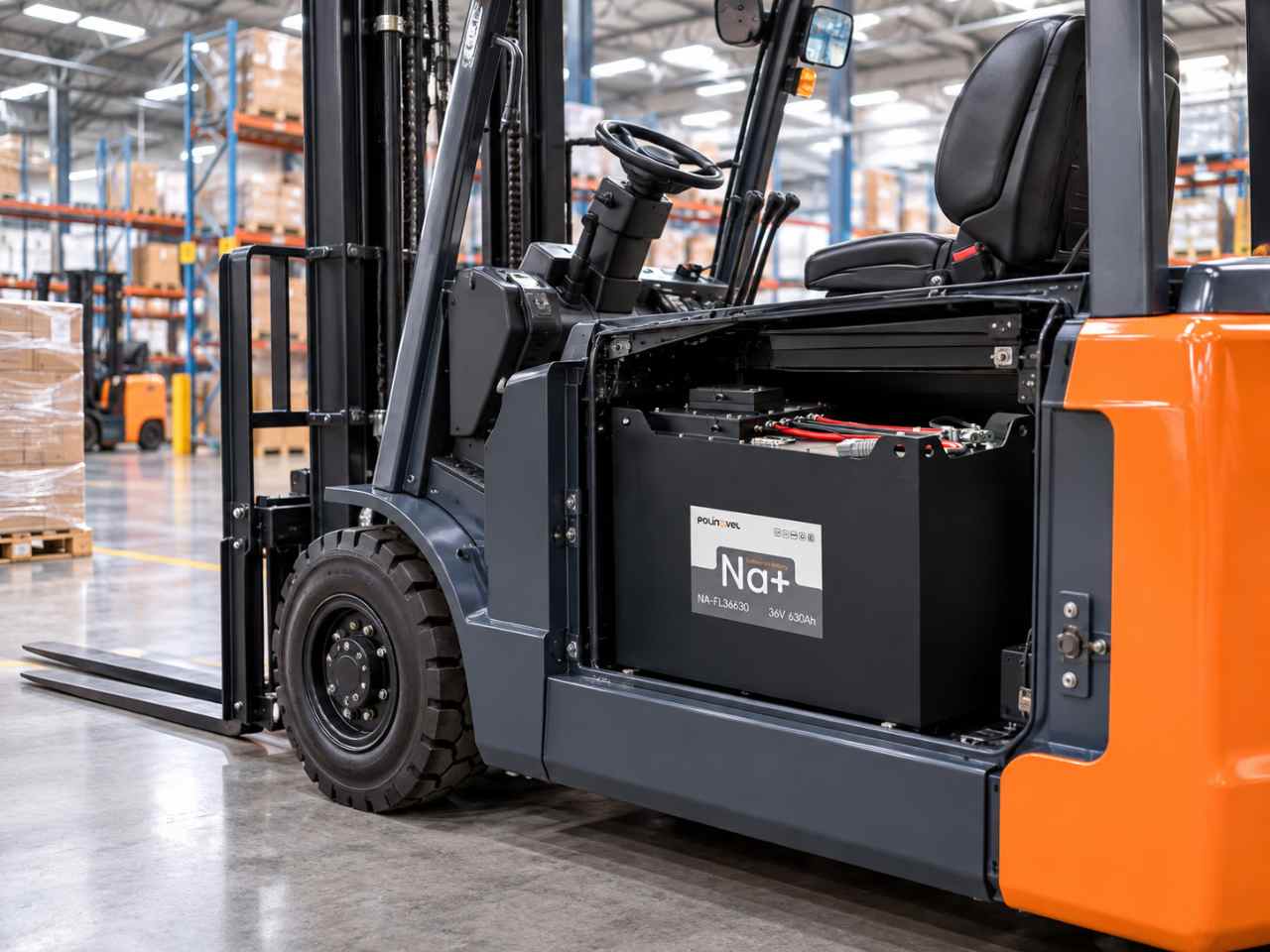

The 36V 630Ah sodium-ion forklift battery delivers 22.68kWh of nominal energy for compatible 36V material handling equipment. With a 980 × 460 × 787 mm enclosure, it is designed for forklift battery replacement and system integration where compartment size, required battery weight, connector layout, charger, and operating conditions all need to be matched. The battery combines stable traction performance, wide-temperature operation, and intelligent battery monitoring for daily warehouse and industrial use.
Supports charging from -10°C to 55°C and discharging from -40°C to 60°C, helping maintain operation across demanding temperature conditions.
Supports charging current up to 315A, providing strong charge acceptance for demanding operating schedules.
Specification
Model | NA-FL36630 |
Nominal Voltage | 36V（12S） |
Nominal Capacity | 630Ah |
Energy | 22680Wh |
Charge Voltage | 47.4V |
Discharge Cut-off Voltage | 18V |
Charge Current | ≤315A |
Constant Discharge Current | 350A |
Peak Discharge Current | 700A @5s |
Dimension | 980*460*787 mm (38.5*18.2*32.3 in) |
Weight | 250kg / 551lbs (without counterweight) |
Cycle Life @DOD100% | ≥2000 cycles |
Charge Temperature | -10~55ºC |
Discharge Temperature | -40~60ºC |
Storage Temperature | -10~35ºC |
This 36V 630Ah sodium-ion battery supports compatible forklift applications where replacement fit, low-temperature operation, and daily energy demand need to be considered together.

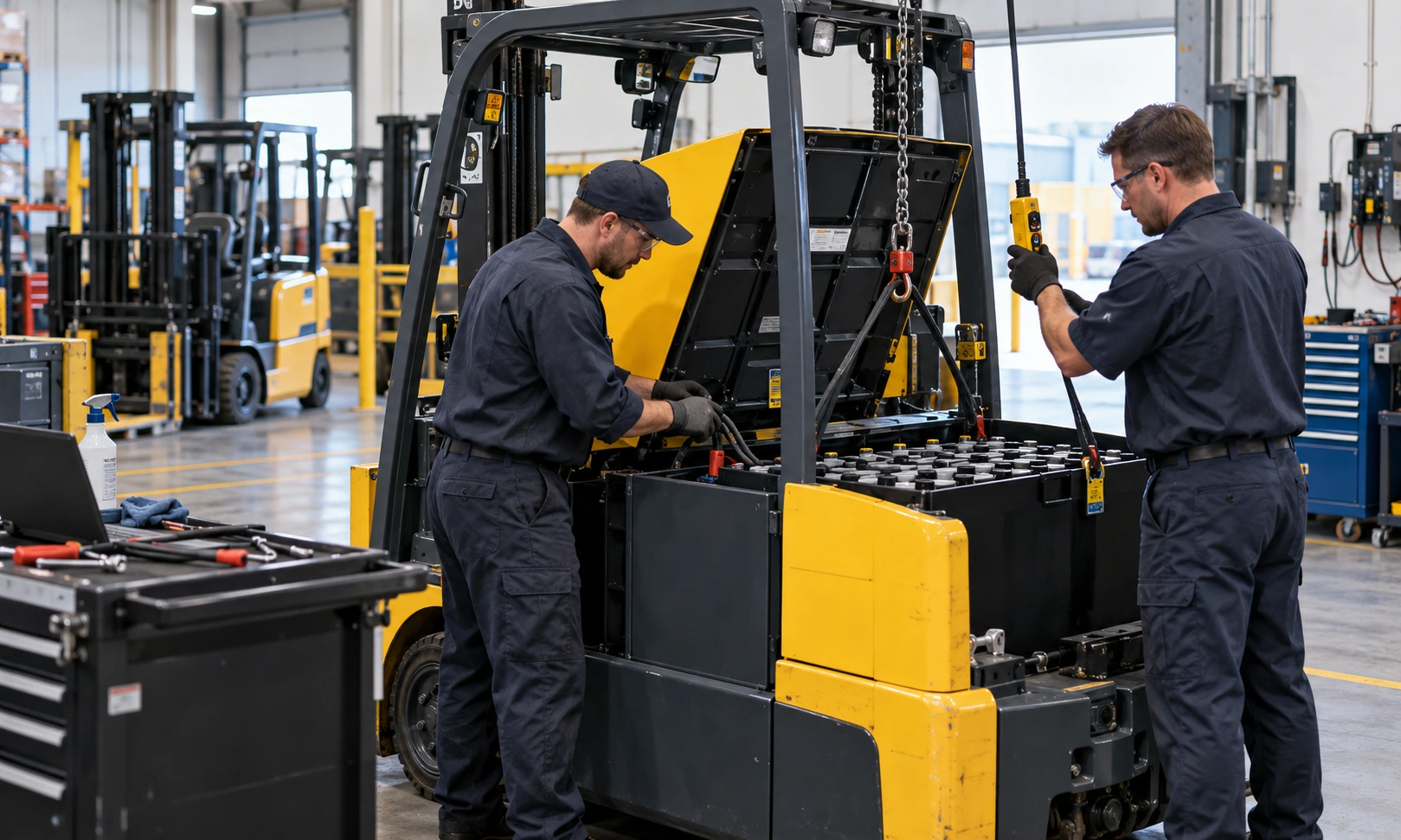

Suitable for compatible 36V forklift replacement projects where battery size, weight, connector, charger, and counterweight requirements need to be matched.

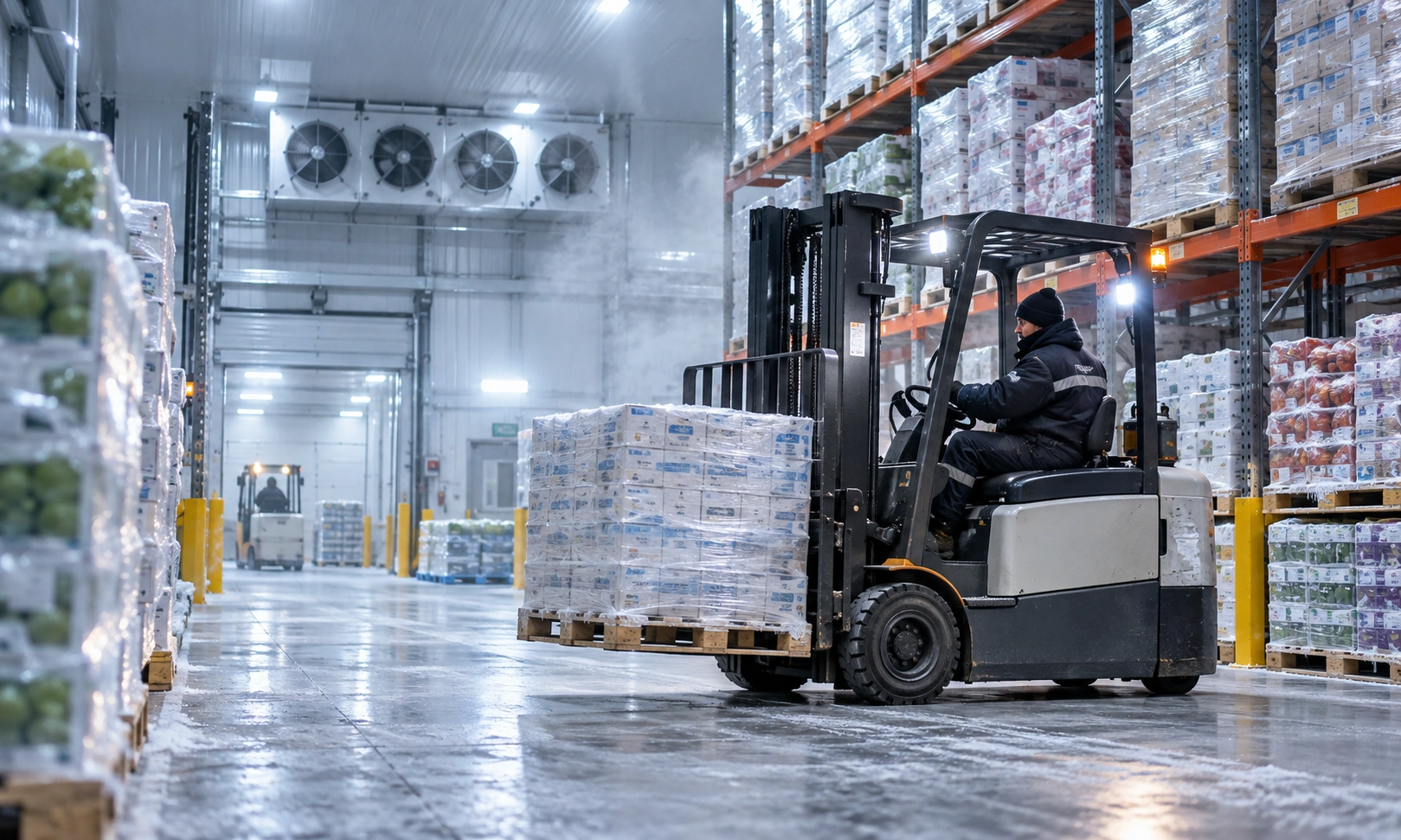

Designed for compatible material handling equipment operating in cold storage and refrigerated logistics, with discharge capability down to -40°C.

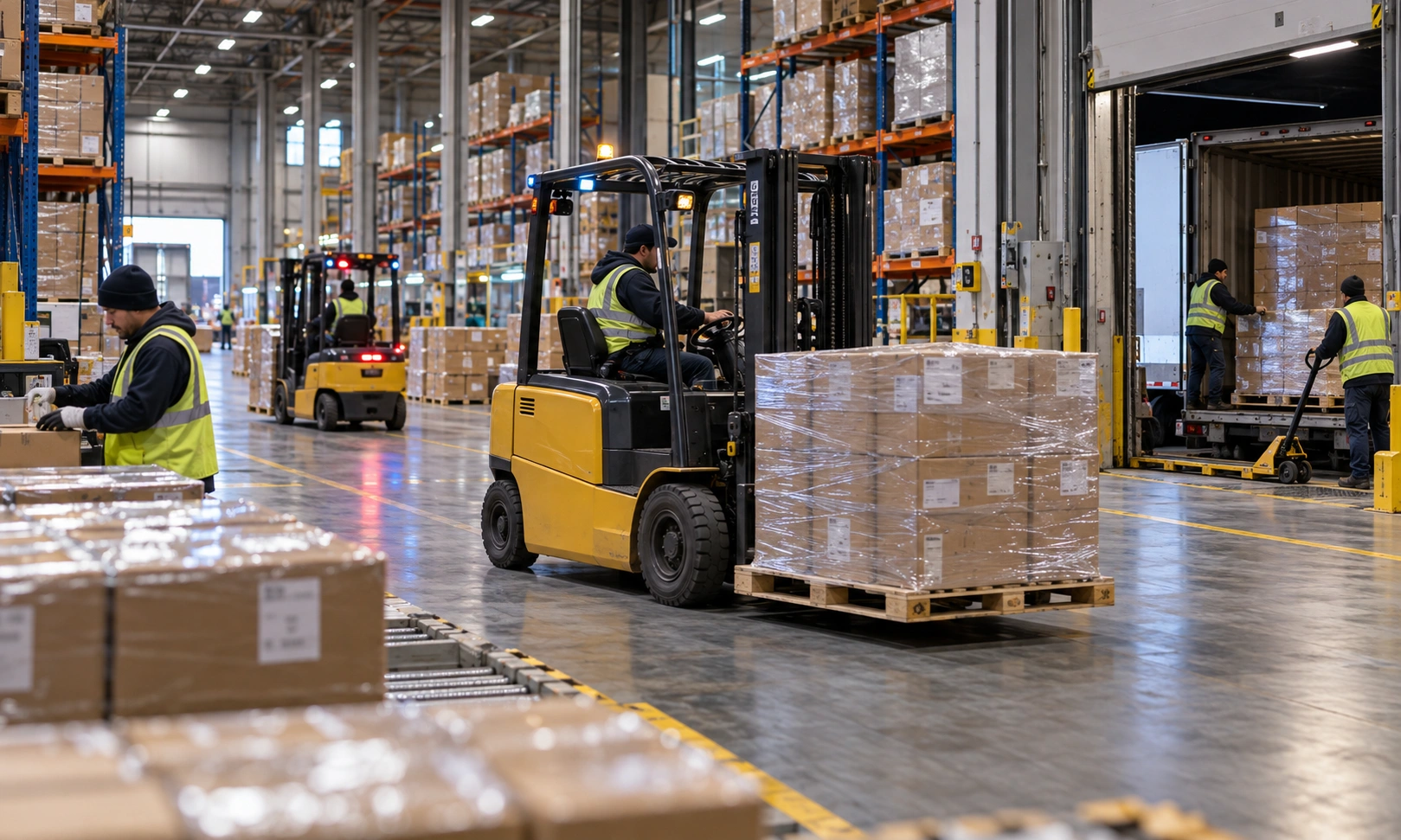

Suitable for warehouse operations with frequent travel, lifting, and repeated handling cycles that require dependable traction power across daily shifts.
A successful forklift battery replacement depends on more than matching voltage and capacity. Before installation, the battery enclosure, weight, connector, charger, and operating requirements should all be checked against the forklift configuration.
Confirm that the 980 × 460 × 787 mm enclosure fits the available battery space and removal path.
Check the forklift’s minimum battery weight and whether additional counterweight is required.
Match the connector type, cable length, exit direction, and available routing space.
Confirm charger voltage, current, charging profile, and communication requirements.
Check BMS communication requirements such as CAN or RS485 where applicable.
Review daily operating hours, load demand, working temperature, and available charging windows.
