Integrating wireless telemetry into power systems introduces a new layer of complexity, requiring engineers to evaluate RF performance and software integration alongside standard voltage and capacity metrics. Selecting a Bluetooth Lithium Battery requires balancing strict physical constraints, dynamic discharge rates, and reliable data transmission without over-engineering the solution or risking premature field failure. You must account for the parasitic drain of the wireless module, the physical environment of the deployment, and the specific data resolution required by your software backend. This guide breaks down the technical specifications, sizing methodologies, and integration risks necessary to specify the exact battery architecture for your application, moving beyond basic spec sheets to real-world implementation factors. We will cover load profiling, chemistry selection, and BMS telemetry validation to ensure your power system operates reliably in the field.
Capacity Buffering: Real-world capacity planning requires a 25% to 50% buffer to account for chemical aging, thermal variations, and the continuous parasitic draw of the Bluetooth module.
Chemistry vs. Footprint: The choice between LiFePO4 and standard Li-ion (NMC/LCO) dictates the trade-off between cycle life, thermal stability, and volumetric energy density.
BMS Telemetry: A Bluetooth-enabled Battery Management System (BMS) is only as valuable as its data resolution; prioritize systems offering precise State of Charge (SoC), State of Health (SoH), and cell-level voltage monitoring.
Integration Security: Relying on unencrypted Bluetooth connections or closed-ecosystem proprietary apps introduces significant security vulnerabilities and vendor lock-in risks.
Table of Contents
You must differentiate between continuous current draw and peak transient loads. Continuous current represents the steady-state power required during normal operation, such as running a microcontroller and basic sensors. Peak transient loads occur during motor startup, radio transmission spikes, or actuator engagement. These spikes can pull significantly more current than the baseline load. If the battery cannot handle these transients, the voltage will sag. This sag can trigger the low-voltage disconnect in the protection circuit, shutting down your device unexpectedly.
Engineers must analyze real-world high-dynamic load scenarios. Consider a system balancing microcontrollers like an ESP32 using BLE and Wi-Fi. You must account for peripheral loads such as high-density addressable LED arrays, cellular modems, or environmental sensors. Each component adds to the complex load profile. You cannot simply add up the maximum current ratings of each component; you must map out when these components operate simultaneously.
You must also calculate the baseline power consumption of the Bluetooth Low Energy (BLE) module. This module draws power during both active polling and sleep states. Establishing the idle current draw is critical for devices deployed in the field for months. Even a small parasitic drain will deplete the pack over long standby periods. A module drawing 50 microamps in sleep mode will consume over 400 milliamp-hours in a year, which is significant for small wearable devices.
Operational State | Component Activity | Typical Current Draw | Duration |
|---|---|---|---|
Deep Sleep | RTC active, BLE advertising off | 10µA - 50µA | Continuous |
Standby / Advertising | BLE broadcasting, sensors idle | 1mA - 5mA | Intermittent |
Active Processing | MCU awake, reading sensors | 20mA - 50mA | Seconds |
Peak Transmission | Wi-Fi/Cellular data burst | 300mA - 2A | Milliseconds |
Nominal capacity ratings often fail in real-world applications due to voltage sag under heavy load. Manufacturers test batteries under ideal laboratory conditions. They usually apply a low, constant discharge rate at room temperature. Your actual application will likely subject the cells to dynamic loads and fluctuating temperatures. This reduces the usable capacity you can extract before hitting the cutoff voltage. Relying solely on the spec sheet capacity will leave your device underpowered in the field.
Apply the 25 to 50% sizing rule for reliable operation. You must calculate a capacity buffer to offset chemical degradation over the target cycle life. Lithium cells lose capacity as they age. A pack rated for 100Ah might only deliver 80Ah after a few hundred cycles. Furthermore, extreme temperatures cause efficiency losses. Cold weather increases internal resistance, severely reducing available power. Adding a buffer ensures your device meets runtime requirements even near the end of its operational life.
Determine the absolute minimum runtime required for your application under worst-case load conditions.
Calculate the total amp-hours needed based on your dynamic load profile.
Add a 20% buffer to account for capacity loss over the expected cycle life of the product.
Add an additional 10% to 30% buffer if the device will operate in temperatures below freezing.
Select a cell configuration that meets this final buffered capacity requirement.
Evaluate LiFePO4 (Lithium Iron Phosphate) for stationary or heavy-duty projects. This chemistry provides maximum cycle life, often exceeding 3000 cycles at 80% depth of discharge. It offers deep discharge resilience and superior thermal stability. LiFePO4 is highly resistant to thermal runaway, making it exceptionally safe for industrial environments or large-scale energy storage. However, it is heavier and bulkier than other lithium variants, making it unsuitable for ultra-portable devices.
Evaluate standard Lithium-Ion (NMC/LCO) for handheld gadgets and compact electronics. These chemistries provide maximum gravimetric and volumetric energy density. They pack more power into a smaller, lighter footprint. This is essential for weight-sensitive applications like drones, medical wearables, or handheld test equipment. The trade-off is a shorter cycle life, typically 500 to 1000 cycles, and increased sensitivity to thermal stress and physical puncture.
Analyze the structural compromises in your design. Choosing a lighter battery affects overall run-time under demanding dynamic loads. You must weigh the need for a compact form factor against the necessity for long-term durability. If your device is permanently installed in a remote location, the weight penalty of LiFePO4 is easily justified by the extended maintenance intervals.
Chemistry Type | Volumetric Energy Density | Typical Cycle Life | Thermal Runaway Risk | Primary Use Case |
|---|---|---|---|---|
LiFePO4 (LFP) | Low (Larger footprint) | 3000 - 5000 cycles | Very Low | Industrial, Solar, Marine |
NMC (Nickel Manganese Cobalt) | High (Compact) | 500 - 1000 cycles | Moderate | Power Tools, E-Bikes |
LCO (Lithium Cobalt Oxide) | Very High (Ultra-compact) | 300 - 500 cycles | High | Smartphones, Wearables |
Assess cylindrical, prismatic, and pouch cell configurations based on the internal geometry of your device housing. Cylindrical cells, such as the 18650 or 21700 formats, offer excellent mechanical durability and standardized sizing. They are easy to source and assemble into larger packs. Prismatic cells maximize space utilization in rectangular enclosures, offering high capacity in a rigid aluminum or plastic shell. Pouch cells provide the highest energy density and flexibility in shape but require careful structural support within your device to prevent puncture or crushing.
Address specialized geometric form factors for unique designs. You might need to select circle batteries, button profiles, or custom thin pouch configurations. These are common in wearables, medical monitors, and compact IoT electronics. The cell shape must conform strictly to the available cavity. When designing for pouch cells, you must ensure the internal wiring harness does not rub against the cell edges, which can wear through the foil casing over time.
Define precise physical dimensions during the CAD phase. You must measure diameter, thickness, wiring harness paths, and BMS board placement space. Always include structural tolerances for battery swelling. Pouch cells, in particular, experience physical expansion over time as gases build up internally during normal charge and discharge cycles. Failing to leave a 10% volumetric tolerance for swelling can cause the battery to crack your device enclosure or put pressure on sensitive PCB components.
Map the project's working temperature range against battery performance curves. Extreme heat accelerates chemical degradation and risks thermal runaway. Operating a lithium battery consistently above 45°C will drastically reduce its lifespan. Freezing environments increase internal resistance, causing severe voltage sag and preventing safe charging. You must understand how your chosen chemistry behaves at the temperature extremes of your deployment environment.
Match the battery's maximum charge and discharge C-rate to the project's operational duty cycle. High discharge rates generate significant internal heat. If the duty cycle does not allow for adequate cooling periods, the temperature will rise rapidly. This can damage the cells or trigger the BMS thermal cutoff. A battery rated for a 1C continuous discharge will run much hotter than a battery rated for 3C running the same load.
Identify thermal bottlenecks during rapid charging phases. Fast charging generates substantial heat at the terminals and within the cells. Evaluate active versus passive cooling within the enclosure. Passive cooling relies on heat sinks, thermal pads, and aluminum enclosures to dissipate heat. Active cooling requires fans or liquid channels. Choose the method that keeps the cells within their safe operating window, keeping in mind that active cooling introduces moving parts and additional power draw.
Assess the precision of the algorithms calculating State of Charge (SoC) and State of Health (SoH) via the wireless interface. Basic voltage-based SoC calculations are notoriously inaccurate for flat-curve chemistries like LiFePO4. Because the voltage remains relatively constant for 80% of the discharge cycle, a simple voltage lookup table will provide erratic battery percentage readings. Look for a BMS that uses coulomb counting combined with advanced voltage profiling and temperature compensation. Accurate telemetry ensures your software can make reliable decisions about power management.
Determine the necessity of individual cell voltage monitoring. For multi-cell packs, knowing the total pack voltage is not enough. You need active cell balancing data for preventative maintenance and remote diagnostics. If one cell drifts out of balance, the entire pack's capacity is compromised, and the BMS will shut down the pack prematurely. High-resolution telemetry allows engineers to spot degrading cells before they cause a system failure in the field.
Compare Bluetooth Low Energy (BLE) against Classic Bluetooth. BLE offers superior power efficiency, which is vital for battery-operated devices. It features rapid pairing speeds and allows for customized polling frequencies, meaning the radio only turns on when data needs to be sent. Classic Bluetooth maintains a continuous connection, draining power much faster. For sensor networks, remote monitoring, and IoT devices, BLE is the standard choice.
Evaluate signal attenuation risks based on device enclosures. The physical housing severely impacts wireless range. Aluminum or steel housings act as Faraday cages, blocking RF signals almost entirely. If you use a metal enclosure, you will need to route an external antenna outside the casing. RF-transparent plastics, like ABS or polycarbonate, allow for internal PCB antennas but offer less physical protection against impacts. Test the signal strength in the final production housing to ensure reliable telemetry transmission.
Define the required hardware-level safety cutoffs. The BMS must provide strict over-voltage, under-voltage, over-current, and short-circuit protection. These thresholds must align with the cell manufacturer's specifications. If the cutoff limits are too loose, the cells will suffer damage from overcharging or deep discharging. If they are too tight, the system will experience nuisance tripping under normal transient loads, causing your device to reboot unexpectedly.
Evaluate how the BMS handles deep discharge recovery. Some systems permanently lock out if the voltage drops too low, requiring a manual reset or rendering the pack useless. Others allow a slow trickle charge to recover the cells safely. Additionally, investigate low-temperature charging lockouts. Charging lithium cells below freezing causes lithium plating, destroying the battery internally and creating a fire hazard. Advanced BMS units integrate internal heating elements to warm the cells using the charger's power before allowing charge current to flow into the battery.
Analyze the benefits of COTS batteries for rapid prototyping. Standardized packs offer speed to market and lower upfront engineering costs. You can purchase a few units immediately to test your hardware and software integration. They come with pre-configured BMS parameters and often hold basic safety certifications, allowing you to validate your core technology without waiting months for a custom battery build.
Identify common compromises when using COTS solutions. You will likely face limitations in physical fit and weight distribution. The standard rectangular shape might leave wasted space in a curved or compact enclosure. Furthermore, software integration flexibility is often restricted. You may be forced to use the manufacturer's proprietary mobile app rather than pulling data directly into your custom dashboard or cloud infrastructure.
Define the triggers for custom manufacturing. High-volume production runs often justify the initial setup costs, as a custom pack can be optimized for assembly speed and material cost. Non-standard form factors demand a custom approach. If your device requires custom circular, curved, or ultra-thin packs, COTS will not work. You also need a custom build if you require proprietary communication protocols, specific BMS logic, or unique wiring harnesses with specialized connectors.
Evaluate custom battery manufacturers carefully. Assess their Non-Recurring Engineering (NRE) costs, which cover the design, tooling, and initial programming of the BMS. Review their prototyping timelines to ensure they align with your product launch schedule. Verify their in-house testing capabilities. A reliable manufacturer should provide comprehensive cycle testing, thermal imaging, drop testing, and vibration analysis before finalizing the pack design for mass production.
Navigate the mandatory certifications for market entry. You cannot ship lithium batteries legally without UN38.3 certification, which ensures transportation safety under altitude, thermal, and vibration stress. Cell and pack safety require UL1642 or UL2054 compliance for the North American market. Because the battery includes a wireless transmitter, you also need FCC or CE certification for Bluetooth RF emissions. Ignoring these requirements will result in customs seizures, shipping bans, and severe legal liability.
Factor in the cost and timeline delays associated with certifying a custom pack. Testing takes months and costs tens of thousands of dollars. If a pack fails a test, you must redesign the enclosure or BMS and retest from scratch. Build these certification buffers into your project schedule from day one, and work with a manufacturer who has a proven track record of passing these specific regulatory hurdles.
Mitigate the risks of relying on proprietary manufacturer apps. Closed ecosystems limit your ability to analyze fleet data or integrate battery health metrics into your main user interface. Ensure the manufacturer provides open API or SDK access for custom software integration. You need the ability to pull raw telemetry data directly into your own cloud infrastructure or local control system to build a seamless user experience.
Address cybersecurity vulnerabilities aggressively. A wireless BMS is a potential attack vector. Verify that the system uses encrypted Bluetooth connections, such as AES-128 encryption standard in BLE 4.2 and above. Implement secure pairing protocols to prevent unauthorized access to battery parameters. A malicious actor could alter protection thresholds, disable the low-voltage disconnect, or force an overcharge, causing permanent damage or severe safety hazards.
Selecting the right Bluetooth lithium battery involves balancing battery capacity, wireless communication, Battery Management System (BMS) functionality, safety, and long-term reliability. By carefully evaluating battery chemistry, Bluetooth telemetry, software compatibility, and environmental requirements, you can build a more efficient and dependable power solution for your application.
About Polinovel

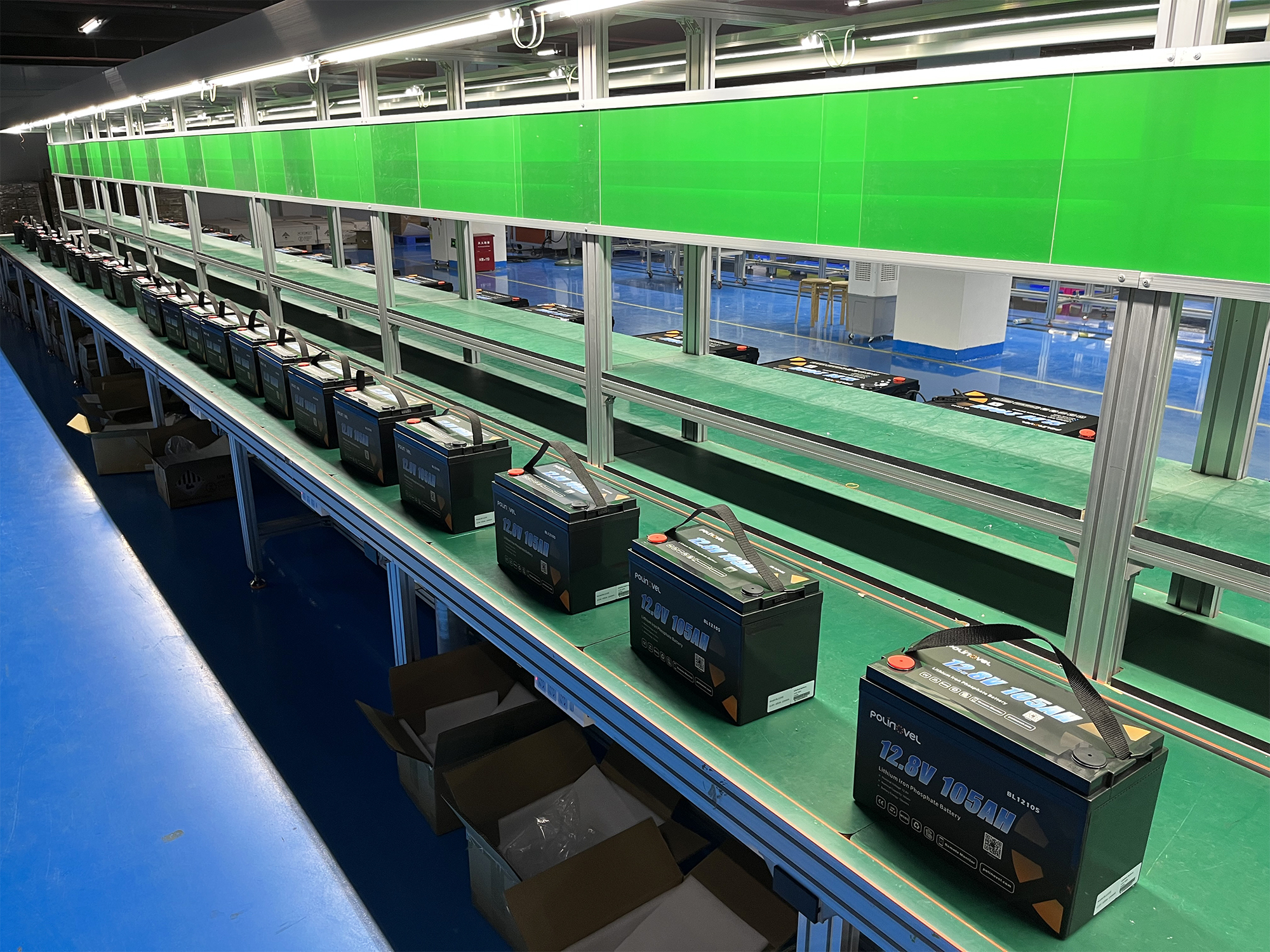

Polinovel is a professional manufacturer of LiFePO4 batteries and smart Bluetooth lithium battery solutions for residential energy storage, RVs, marine systems, IoT devices, golf carts, and industrial applications. Combining premium Grade A cells, advanced Bluetooth Battery Management System (BMS) technology, strict quality control, and flexible OEM/ODM services, Polinovel delivers intelligent, safe, and reliable lithium battery solutions trusted by customers worldwide.
Select a Bluetooth lithium battery with accurate Battery Management System (BMS) monitoring and reliable wireless communication.
Choose the appropriate battery chemistry based on your application's safety, cycle life, and energy density requirements.
Verify compatibility with your hardware, software platform, and communication protocols before deployment.
Work with experienced battery manufacturers that provide certified products, engineering support, and custom battery solutions.
Before selecting a Bluetooth lithium battery, evaluate your power requirements, operating environment, Bluetooth connectivity, certification needs, and future expansion plans to ensure the best long-term performance and reliability.
A: A standard BLE module draws between 10µA and 100µA in sleep mode, and up to 15mA during active data transmission. Over several months of storage, this continuous draw can deplete a small capacity pack. You must factor this parasitic drain into your standby time calculations to prevent deep discharge during storage.
A: Accuracy depends entirely on the BMS algorithm. Basic voltage-reading systems can be off by 10 to 20%, especially with flat-curve LiFePO4 cells. Advanced systems using coulomb counting and temperature compensation can achieve SoC accuracy within 2 to 5%.
A: Standard lithium batteries cannot be charged below freezing without causing irreversible lithium plating. A high-quality BMS will block charge current at freezing temperatures. Some specialized packs include internal heating pads that warm the cells before allowing the charge cycle to begin.
A: You must obtain UN38.3 for global transport safety. UL1642 and UL2054 are standard for cell and pack safety in North America. Additionally, the Bluetooth module requires FCC certification in the US or CE certification in Europe for radio frequency emissions.
A: Choose LiFePO4 if your project requires thousands of cycles, high safety, and has ample physical space. Choose standard Lithium-Ion if your IoT device is compact, weight-sensitive, and requires maximum energy density in a small footprint.
A: You must request the Software Development Kit or communication protocol documentation from the battery manufacturer. This allows your developers to write custom code to parse the BLE data packets, bypassing the manufacturer's proprietary consumer app.
A: For cylindrical cells, allow a 1 to 2% volume tolerance. For pouch cells, you must allow at least an 8 to 10% expansion tolerance in the thickness dimension. Pouch cells naturally swell over their lifespan due to internal gas generation during normal cycling.
