Investing in a lithium iron phosphate energy storage system requires significant capital. The operational reality is straightforward: improper charging protocols remain the primary cause of premature capacity loss and complete system failure. Many users apply legacy lead-acid charging habits to lithium chemistry, which quickly degrades cell integrity. Furthermore, relying solely on built-in Battery Management Systems (BMS) while using incompatible charging hardware creates severe operational risks.
This guide provides a technical framework for establishing correct voltage parameters and selecting compatible equipment. We will explore how to mitigate environmental risks to help guarantee the rated 3,000 to 5,000+ cycle life of your storage bank. Mastering proper LiFePO4 Battery Charging practices ensures maximum energy density utilization and long-term reliability.
Voltage Precision: Optimal LiFePO4 battery charging requires a strict Constant Current/Constant Voltage (CC/CV) profile, typically capping at 14.4V–14.6V for a 12V system, without a prolonged float stage.
Temperature Constraints: Charging a LiFePO4 battery below 0°C (32°F) without internal heating mechanisms causes irreversible lithium plating and permanent cell damage.
Equipment Compatibility: Legacy lead-acid chargers (especially those with desulfation modes) pose severe overvoltage risks; dedicated lithium chargers or programmable MPPT/DC-DC controllers are mandatory for system safety.
System Balance: Proper initial charging (top-balancing), balanced diagonal bank wiring, and correct cable sizing are critical implementation steps to prevent BMS disconnects and uneven cell degradation in multi-battery banks.
Table of Contents
Successful charging maximizes energy density utilization while maintaining internal cell stability. The goal is to replenish capacity efficiently without triggering thermal or electrochemical degradation. Understanding the underlying chemistry helps operators configure hardware correctly and avoid premature battery failure.
Lithium iron phosphate cells require a specific two-stage charging process known as Constant Current/Constant Voltage (CC/CV). During the Constant Current (Bulk) phase, the charger delivers its maximum rated current. The voltage steadily rises until the battery reaches the predetermined voltage setpoint. This phase typically restores about 90% of the battery's State of Charge (SOC).
Once the target voltage is reached, the charger enters the Constant Voltage (Absorption) phase. The voltage is held perfectly steady while the current naturally tapers off as internal resistance increases. When the current drops to a minimal threshold (usually around 0.02C to 0.05C), the battery reaches 100% SOC, and the charge cycle must terminate. Unlike traditional chemistries, lithium does not require a multi-stage equalization or a prolonged float phase. Holding a continuous high voltage stresses the cells and accelerates degradation.
A key differentiator is internal resistance. A LiFePO4 Battery has exceptionally low internal resistance. This allows for high charge acceptance rates, meaning it can absorb massive amounts of current quickly without overheating. However, this same characteristic demands strict current regulation from the charging source to prevent hardware damage.
Additionally, the discharge and charge voltage curves are extremely flat. A lead-acid battery shows a steady, predictable drop in voltage as it discharges. Lithium maintains a near-constant voltage until it is almost completely depleted. Because of this flat curve, traditional voltage-based SOC monitoring is largely ineffective. Relying on voltage alone often leaves operators guessing their true remaining capacity.
Feature | LiFePO4 Chemistry | Lead-Acid Chemistry |
|---|---|---|
Charge Profile | Strict CC/CV (2-stage) | Bulk, Absorption, Float, Equalize (4-stage) |
Internal Resistance | Extremely Low | High |
Voltage Curve | Flat (Requires Shunt) | Linear (Voltage indicates SOC) |
Float Requirement | None (Damaging if prolonged) | Mandatory for standby |
Connecting specific charging parameters directly to the outcome of extended battery lifespan is essential. Precision in voltage and current settings dictates system reliability.
Setting the correct voltage limits prevents overcharging and internal stress. For a nominal 12V system, optimal bulk and absorption voltage limits generally fall between 14.2V and 14.6V. Pushing beyond 14.6V provides negligible extra capacity but drastically increases the risk of cell degradation.
If standby power is required and a float stage cannot be entirely disabled, set the float voltage parameters between 13.5V and 13.8V. This range prevents micro-cycling stress while keeping the battery ready for use. A standard BMS typically features an overvoltage disconnect threshold around 14.8V to 15.0V. Relying on the BMS to stop the charge is a flawed strategy. The BMS is an emergency cutoff, not a daily charge controller. Repeatedly hitting the BMS disconnect threshold causes system instability and sudden power loss.
Charge current is measured in C-rates, which relate directly to battery capacity. For a 100Ah battery, a 1C charge rate equals 100 amps. Industry-standard recommendations suggest a charge rate of 0.2C to 0.5C for optimal daily use. This moderate pace minimizes heat generation and maximizes overall cycle life.
Fast charging at 0.5C to 1C is possible and sometimes necessary for quick turnarounds. However, operators must evaluate the trade-offs. The convenience of rapid charging often comes at the cost of accelerated thermal degradation. Consistent high-current charging requires excellent ventilation and careful temperature monitoring.
The Battery Management System is a last-line-of-defense safety mechanism. It provides over-voltage, under-voltage, over-current, and temperature protection. It is crucial to understand that the BMS is not a charge controller. It does not regulate the incoming voltage or current profile; it only opens the circuit if safety parameters are breached.
The BMS also handles cell balancing. During the absorption phase, when voltage is high and current is low, the BMS bleeds off excess voltage from the highest-charged cells. This allows lower-charged cells to catch up. Adequate absorption time is necessary to allow this passive balancing to occur, ensuring the entire pack remains synchronized.
Extreme environments dictate charging system design and hardware selection. Temperature profoundly impacts lithium chemistry and operational safety.
Charging below freezing initiates a destructive electrochemical mechanism known as lithium plating. Instead of intercalating smoothly into the graphite anode, lithium ions accumulate on the surface as metallic lithium. This process causes permanent capacity loss and creates severe safety hazards, including internal short circuits.
Operators must follow the 5°C preheating rule. Frozen batteries must be preheated to at least 5°C (41°F) before safe charging can resume. Discharging below freezing is generally safe, but charging must be strictly prohibited until the core temperature rises.
Heat is equally detrimental. The upper safe charging limits typically range from 45°C to 55°C (113°F to 131°F). Elevated temperatures accelerate electrolyte breakdown and increase internal resistance. Chronic exposure to high heat during the charge cycle significantly reduces the total lifespan of the battery bank.
A common misconception is that lithium batteries need zero ventilation because they do not off-gas like flooded lead-acid batteries. While they do not emit toxic fumes, high-current charging generates heat. Proper heat dissipation requirements must be met.
Keep charging hardware, such as MPPTs and AC-DC chargers, in well-ventilated spaces. Confined, unventilated compartments trap heat, causing chargers to enter thermal throttling. This reduces charge efficiency and prolongs generator or shore power runtimes.
Self-heating battery models offer a practical solution for cold environments. These units feature internal heating pads triggered by incoming charge current. When the charger activates, the power is diverted to the heating pads until the internal temperature reaches a safe threshold, at which point normal charging commences.
External temperature sensors are also necessary. Network these sensors to solar charge controllers or AC chargers to automatically halt charging outside safe parameters. Relying on manual monitoring is prone to human error and risks catastrophic battery failure.
Selecting the right charging hardware based on the application ensures scalability and compliance. Mismatched equipment leads to chronic undercharging or dangerous overvoltage events.
When charging from shore power or a generator, use dedicated AC-to-DC lithium chargers. Key criteria for selection include pre-programmed CC/CV profiles and appropriate amperage output for the battery bank size. Ensure the hardware carries recognized safety certifications like UL or CE to guarantee safe operation.
For solar applications, Maximum Power Point Tracking (MPPT) controllers are superior. They offer programmable voltage setpoints and high conversion efficiency. MPPT controllers adapt to varying solar conditions to deliver the precise voltage required.
Pulse Width Modulation (PWM) controllers are generally unsuitable for high-capacity lithium banks. They lack precise voltage regulation and often pull the solar panel voltage down to the battery voltage, resulting in severe efficiency losses and improper charge profiles.
Connecting a lithium battery directly to a vehicle alternator presents a critical risk. Because lithium accepts massive current, it can easily overwork and burn out a standard alternator. DC-to-DC chargers mitigate this risk. They regulate the current draw, protect the alternator from overheating, and provide the correct CC/CV voltage profile to the auxiliary battery bank.
Legacy lead-acid chargers pose significant dangers. Chargers with automatic desulfation or equalization modes spike the voltage to 15V or higher. This will immediately trigger a BMS shutdown and can permanently damage the cells.
There is a narrow use-case where a basic lead-acid charger can be used temporarily. If the charger's maximum voltage is strictly below 14.6V and it lacks an equalization mode, it can safely add capacity. However, it will likely not achieve a true 100% SOC or allow for proper cell balancing.
System commissioning and daily operation present numerous failure points. Avoiding these common mistakes ensures long-term reliability.
Incorrect Cable Sizing and Voltage Drop: Undersized cables create significant electrical resistance, causing a voltage drop between the charger and the battery. The charger reads a higher voltage than the battery actually receives, causing it to prematurely enter the absorption phase.
Missing Overcurrent Protection: Omitting fuses or circuit breakers between the charging source and the battery bank creates a severe fire hazard in the event of a short circuit.
Skipping Initial Top-Balance: Before wiring multiple batteries in series or parallel, they must be charged individually to 100%. Skipping this guarantees permanent bank imbalance.
Incorrect Bank Wiring: Asymmetrical bank wiring causes uneven current distribution. Connect load and charge leads diagonally to ensure all cells work equally.
Continuous Float Charging at High Voltages: Holding a lithium battery at 100% SOC (14.6V) indefinitely causes internal stress. Lower float voltage to 13.5V for standby applications.
Relying on Voltage for State of Charge (SOC): Because the discharge curve is extremely flat, voltage meters are highly inaccurate. A shunt-based battery monitor is required.
Ignoring Alternator Protection: If a BMS disconnects the battery while the engine is running, the sudden removal of the load creates a high-voltage spike that destroys alternators.
Storing at 100% SOC for Prolonged Periods: Storing lithium batteries at maximum voltage for months degrades the internal chemistry. Charge or discharge the bank to 50%–70% SOC for storage.
Following the correct LiFePO4 battery charging practices is essential for maximizing battery lifespan, improving charging efficiency, and maintaining long-term system reliability. Choosing compatible charging equipment, applying proper voltage settings, and using a reliable Battery Management System (BMS) will help protect your battery investment and ensure consistent performance.
About Polinovel

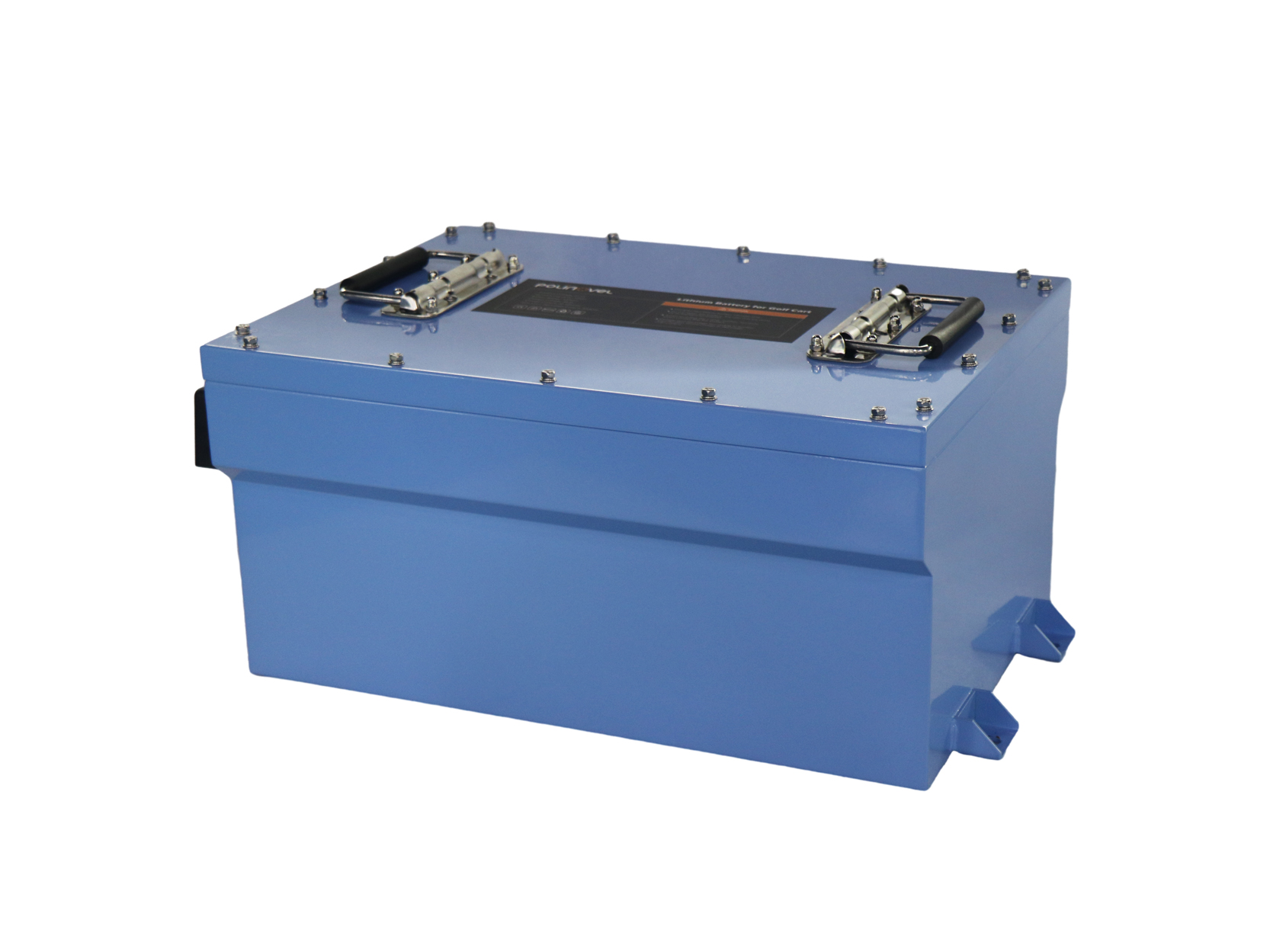

Polinovel is a professional manufacturer of LiFePO4 batteries for residential energy storage, RVs, marine systems, golf carts, solar applications, and industrial power solutions. With premium Grade A cells, advanced Battery Management System (BMS) technology, strict quality control, and flexible OEM/ODM services, Polinovel provides safe, efficient, and long-lasting lithium battery solutions trusted by customers worldwide.
Always use a dedicated LiFePO4 charger with the correct CC/CV charging profile.
Configure charging voltage, current, and temperature protection according to battery specifications.
Select compatible charging equipment and monitor battery status using a reliable Battery Management System (BMS).
Choose certified lithium battery products from experienced manufacturers with strong engineering and technical support.
Before charging your LiFePO4 battery, verify your charger settings, operating temperature, battery configuration, and BMS protection to maximize battery performance and service life.FAQ
A: It is highly discouraged. Lead-acid chargers often include desulfation or equalization stages that spike voltage above 15V. This triggers the BMS to shut down and can damage the cells. Always use a dedicated lithium charger with a CC/CV profile.
A: Charging below 0°C (32°F) causes lithium plating. Lithium ions accumulate as solid metal on the anode instead of absorbing into it. This causes irreversible capacity loss and creates internal short-circuit risks.
A: No. Unlike lead-acid batteries, lithium does not require a float charge to maintain capacity. Holding the battery continuously at peak voltage stresses the internal chemistry. If your charger requires a float setting, lower it to 13.5V.
A: This is usually caused by undersized wiring creating a voltage drop. The charger reads a higher voltage at its terminals than what is reaching the battery, causing it to exit the bulk phase prematurely. Upgrade your cables to fix this issue.
A: Voltage readings are inaccurate due to lithium's flat discharge curve. You must install a shunt-based battery monitor. The shunt measures the exact current flowing in and out, providing a precise percentage of remaining capacity.
A: Storing the battery at 100% for prolonged periods accelerates degradation. For long-term storage, adjust the capacity to between 50% and 70%, completely disconnect all loads, and store it in a temperature-controlled environment.
